Advance ICF2S13H1LD35M 2-Lamp 13W CFL Ballast 120–277V

Product Overview

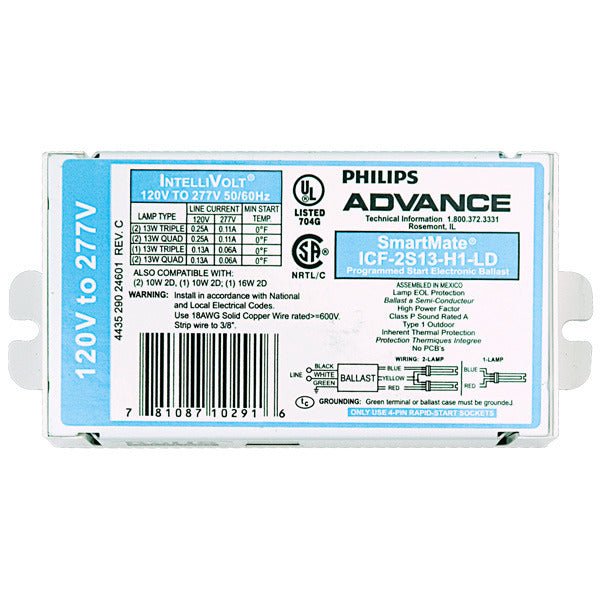

The Advance ICF2S13H1LD35M electronic ballast is designed to operate two 13W 4-pin compact fluorescent lamps on a 120–277V supply. Engineered for reliable and energy-efficient performance, it features programmed start operation to extend lamp life and ensure consistent illumination in commercial lighting applications.

Key Features & Design

• Functionality: Electronic fluorescent ballast designed to power two 13W CFL lamps with programmed start for improved lamp longevity and consistent operation
• Installation context: Compact ballast suitable for fixture integration; supports remote, tandem, and through wiring configurations with poke-in connectors for simplified installation
• Notable specifications: 2 × 13W CFL, 120–277V input, 50–60 Hz, programmed start, ballast factor 1.0 (nominal), power factor 0.98 (nominal), automatic restart, solid wire compatibility
• Contractor-relevant details: Wide input voltage range supports multi-voltage applications, while flexible wiring configurations and poke-in connectors streamline installation and maintenance

Performance / Benefits

This ballast provides stable lamp operation with consistent output across a wide voltage range. Programmed start technology helps extend lamp life by reducing electrode wear, while automatic restart ensures reliable performance after power interruptions. Its compact design and flexible wiring options make it well-suited for retrofit and new fixture applications.
