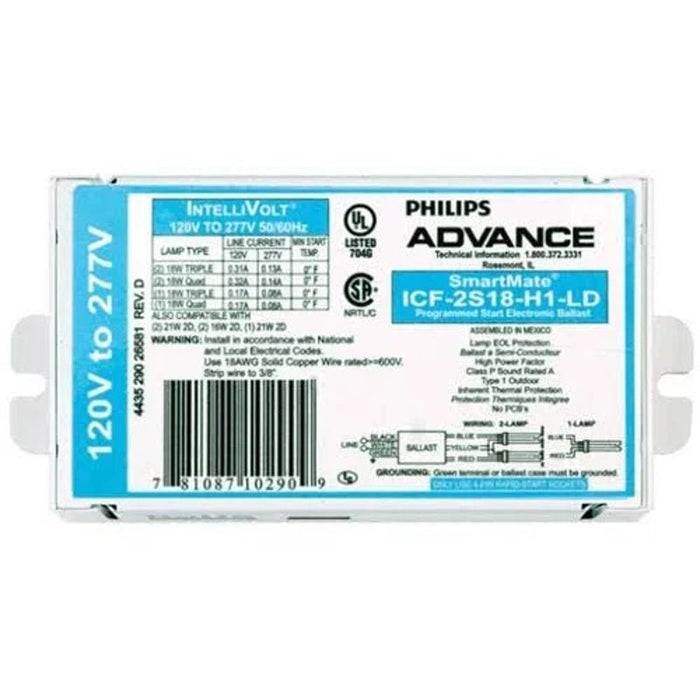

Advance ICF2S18H1LD35M 2-Lamp 18W CFL Ballast 120–277V

Product Overview

The Advance ICF2S18H1LD35M electronic ballast is designed to operate two 18W 4-pin compact fluorescent lamps in commercial lighting applications. Operating from a 120–277V supply, it uses programmed start operation to support consistent lamp performance and extended lamp life.

Key Features & Design

• Functionality: Electronic ballast designed to power two 18W CFL lamps with programmed start operation for improved lamp longevity and stable performance
• Installation context: Compact ballast for fixture integration; supports remote, tandem, and through wiring configurations with poke-in connectors for simplified installation
• Notable specifications: 2 × 18W CFL compatibility, 120–277V input, 50–60 Hz, programmed start, ballast factor 1.0 (nominal), power factor 0.98 (nominal), automatic restart, solid wire compatibility
• Contractor-relevant details: Wide input voltage range supports multi-voltage applications, while flexible wiring configurations and poke-in connectors streamline installation and maintenance across commercial fixtures

Performance / Benefits

This ballast delivers stable, energy-efficient operation with high power factor and consistent light output across a wide voltage range. Programmed start technology helps extend lamp life by reducing electrode wear, while automatic restart ensures reliable performance after power interruptions. Its compact design and flexible wiring options make it well-suited for both retrofit and new fixture applications.
