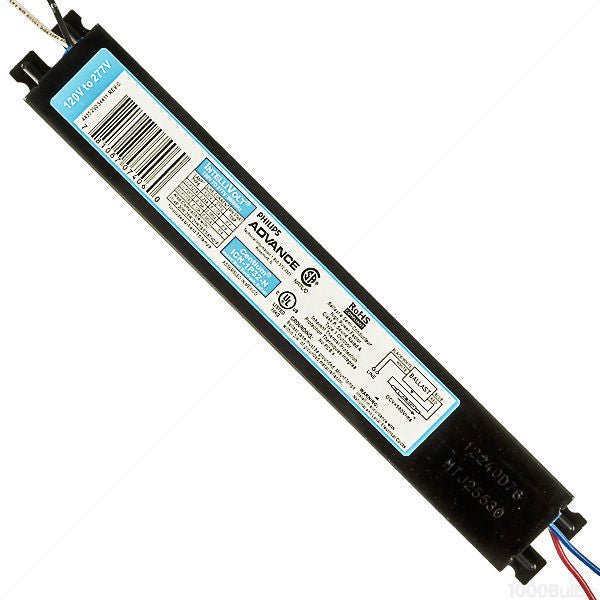

Advance ICN1P32N35I 1-Lamp 32W F32T8 Electronic Ballast Instant Start 120–277V

Product Overview

The Advance ICN1P32N35I Centium is an electronic fluorescent ballast designed for single-lamp T8 applications. It operates one F32T8 32W lamp with instant-start ignition, parallel lamp connection, and universal 120–277V input. The specification also lists compatibility with F17T8, F25T8, and selected 25W, 28W, and 30W energy-saving F32T8 lamps.

Key Features & Design

• Functionality: Electronic ballast designed to operate a single 32W T8 fluorescent lamp, ensuring consistent lamp performance.
• Installation context: Designed for commercial T8 fluorescent lighting fixtures requiring universal 120–277V operation and a compact linear ballast enclosure.
• Notable specifications: Supports 1-Lamp 32W T8 lamps, 120–277V input, instant start, high power factor, automatic restart.
• Contractor-relevant details:

  The ballast uses integral color-coded leads and a parallel lamp connection. The page 1 wiring diagram identifies the lead arrangement for the primary F32T8 lamp configuration.

Performance / Benefits

The ICN1P32N35I provides efficient single-lamp T8 operation with instant starting and universal input-voltage compatibility. Its high-frequency electronic design helps eliminate visible flicker, while the compact enclosure and integral leads support straightforward commercial fixture installation and replacement. The specification also states compliance requirements for UL, CSA, FCC, ANSI, and NEMA standards.
