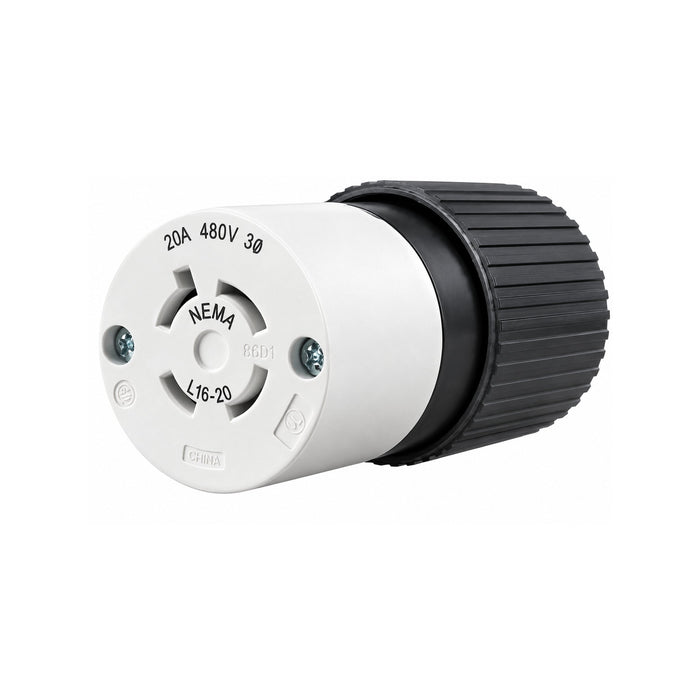

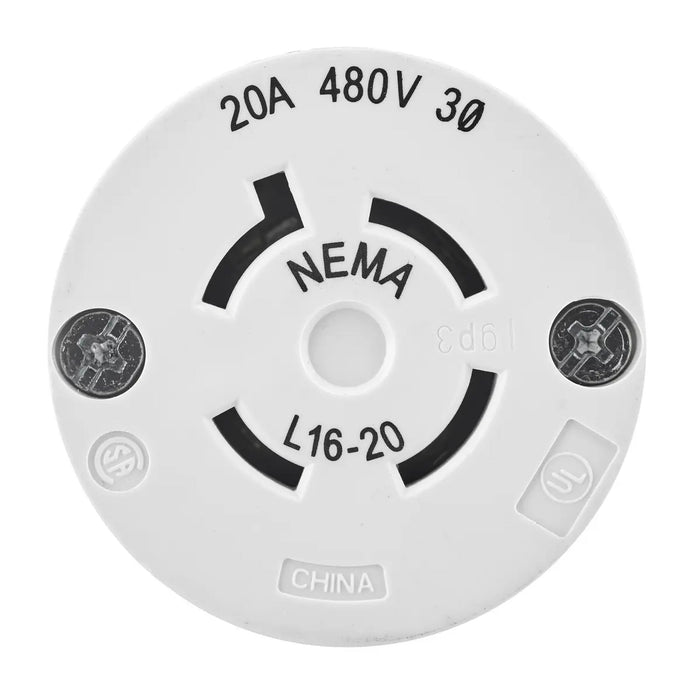

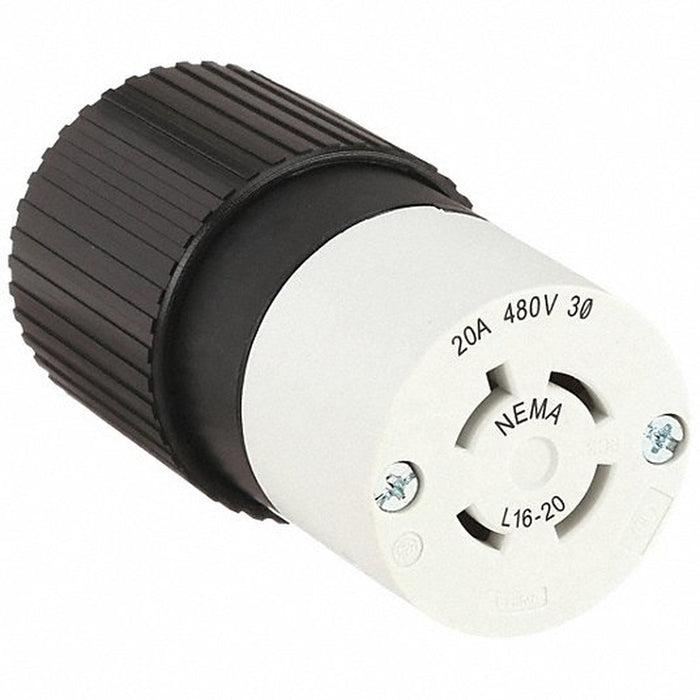

Bryant 71620NC L16-20R Female Locking Connector 20A 480V
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$11.65
$11.65
-
$11.65
Current price
$11.65
Product Overview
The Bryant 71620NC is a heavy-duty industrial female locking connector body designed for 20A, 3-phase 480VAC applications. It features a NEMA L16-20R configuration with 3-pole, 4-wire grounding and screw-terminal connections.
Key Features & Design
- Functionality: Female locking connector for secure industrial power connections.
- Installation context: Cord-mounted design for indoor dry locations unless additionally protected.
- Notable specifications: 20A, 480VAC 3-phase, NEMA L16-20R, 3-pole, 4-wire grounding, screw terminals, black/white nylon body.
- Contractor-relevant details: Alignment keys simplify assembly, while the internal Triple Gripper cord grip provides secure cord retention.
Performance / Benefits
Impact- and chemical-resistant toughened nylon construction supports demanding industrial applications, while clearly marked electrical ratings simplify identification.
Specifications
Details
| Brand: | Bryant |
|---|---|
| Manufacturer Part Number: | 71620NC |
| UPC: | 781786696891 |
| Input Voltage: | 480VAC, 3-Phase |
| Color: | Black / White |
| Special Features: | NEMA L16-20R; 20A; 3-Pole; 4-Wire Grounding; Screw Terminals; Triple Gripper Cord Grip |
| Certifications: | NEMA L16-20R |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 2.25 |
|---|---|
| Width: | 6 |
| Height: | 9.5 |
