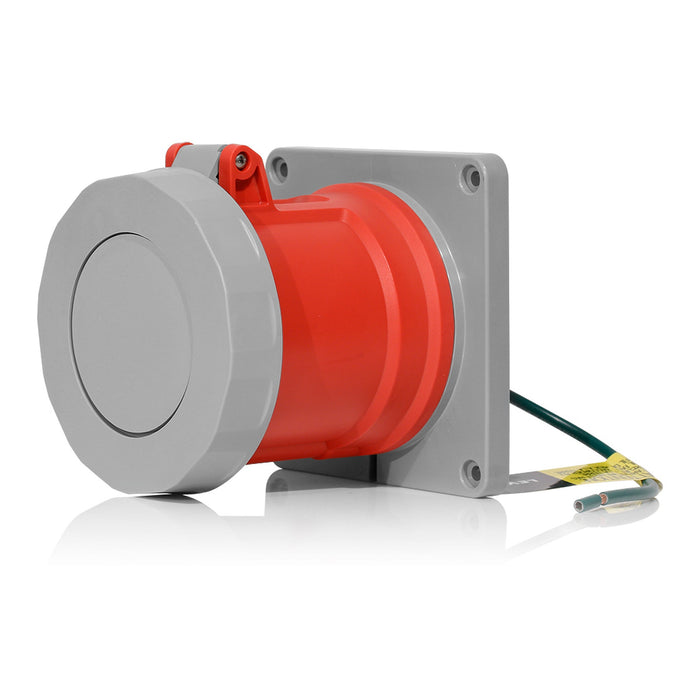

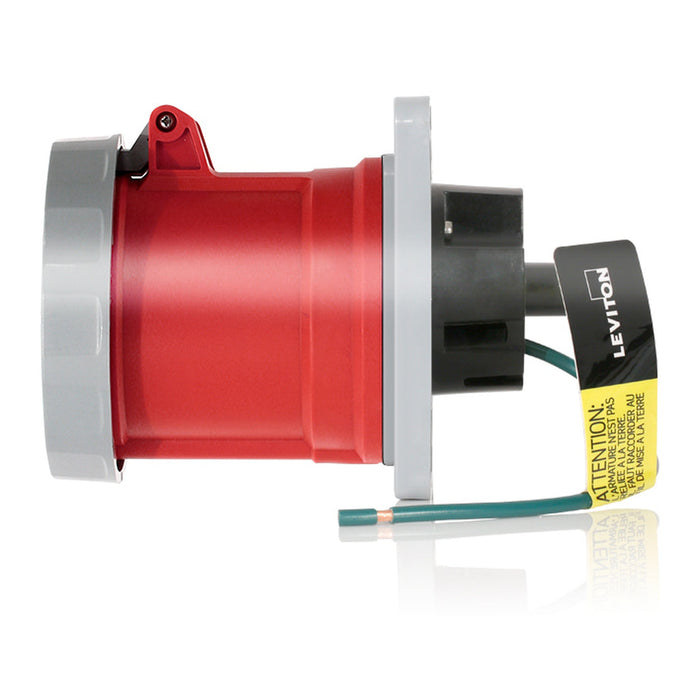

Leviton 460R7WLEV IEC Pin & Sleeve Receptacle 60A 480V 3-Phase
by Leviton
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$280.00
$280.00
-
$280.00
Current price
$280.00
Product Overview
The Leviton 460R7WLEV is a 60A, 480V AC LEV Series IEC pin and sleeve receptacle for 3-phase industrial power applications. Its 3-pole, 4-wire configuration and watertight construction support demanding indoor and outdoor installations.
Key Features & Design
- Functionality: Industrial-grade IEC 60309 receptacle for 60A, 480V 3-phase power.
- Installation context: Designed for harsh, washdown, and outdoor environments.
- Notable specifications: 3P, 4W, 7 o'clock, red, IP66/IP67/IP68/IP69K.
- Contractor-relevant details: Accepts #8 to #2 AWG conductors with 50 in-lb terminal torque.
Performance / Benefits
Nickel-plated contacts provide corrosion resistance, while multiple watertight ratings support reliable industrial connectivity.
Specifications
Details
| Brand: | Leviton |
|---|---|
| Manufacturer Part Number: | 460R7WLEV |
| UPC: | 078477901908 |
| Input Voltage: | 480V AC |
| Color: | Red |
| Special Features: | Watertight; IEC Pin & Sleeve; 3-Phase; 3-Pole; 4-Wire |
| Certifications: | UL; CSA; CE; NOM; IEC 60309-1 & 60309-2; RoHS |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 8.75 |
|---|---|
| Width: | 6.25 |
| Height: | 5.75 |
