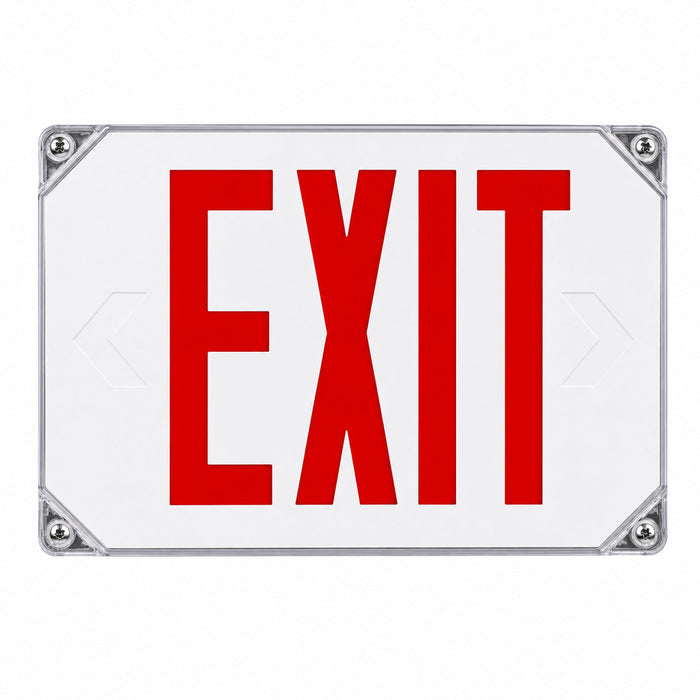

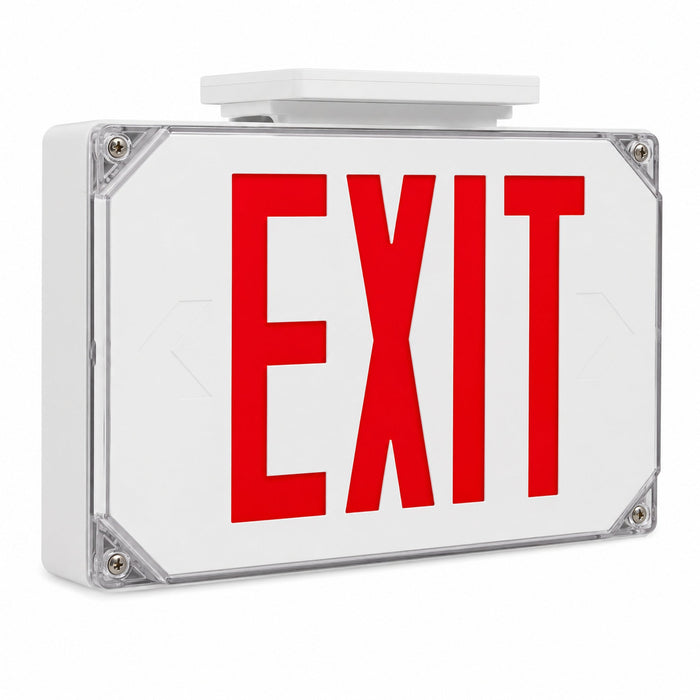

Keystone KT-EX-TP2-WH3RL-SD LED Exit Sign Single/Double Face Wet Rated 120/277V

Product Overview

The Keystone KT-EX-TP2-WH3RL-SD is a wet-rated LED exit sign designed for commercial and institutional emergency egress applications. It features red LED lettering in a white thermoplastic housing and can be configured for either single- or double-face operation. The sign operates on 120/277V input and includes an integrated NiMH battery that provides 90 minutes of emergency power during an outage.

Key Features & Design

• Functionality: Provides illuminated red EXIT lettering with single- or double-face configuration. An integrated test switch and charge indicator support routine emergency-lighting system checks.
• Installation context: Surface-mount design supports back, side, or top mounting and includes a universal J-box mounting pattern for installation flexibility.
• Notable specifications: 120/277V input; 3W input power; red lettering; white housing; NiMH 500mAh backup battery; 24-hour recharge time; wet-location rated; and 32°F to 104°F (0°C to 40°C) ambient operating temperature.
• Contractor-relevant details: Field-adjustable removable chevrons and included faceplates allow the same sign to be configured for single- or double-sided applications. All faceplates required for either configuration are included.

Performance / Benefits

The Keystone KT-EX-TP2-WH3RL-SD combines flexible mounting and facing configurations with wet-location construction for adaptable emergency egress installations. Its integrated battery supplies 90 minutes of emergency power, while the built-in test switch and charge indicator simplify routine system checks.
