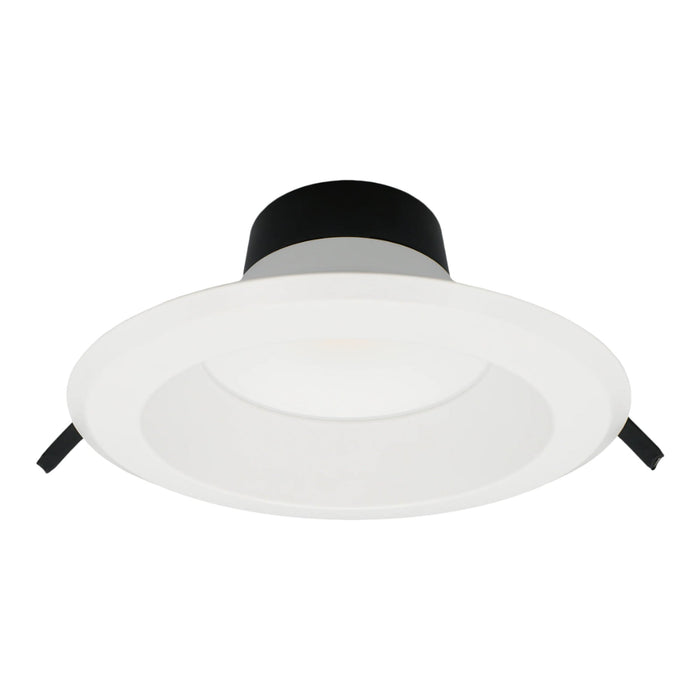

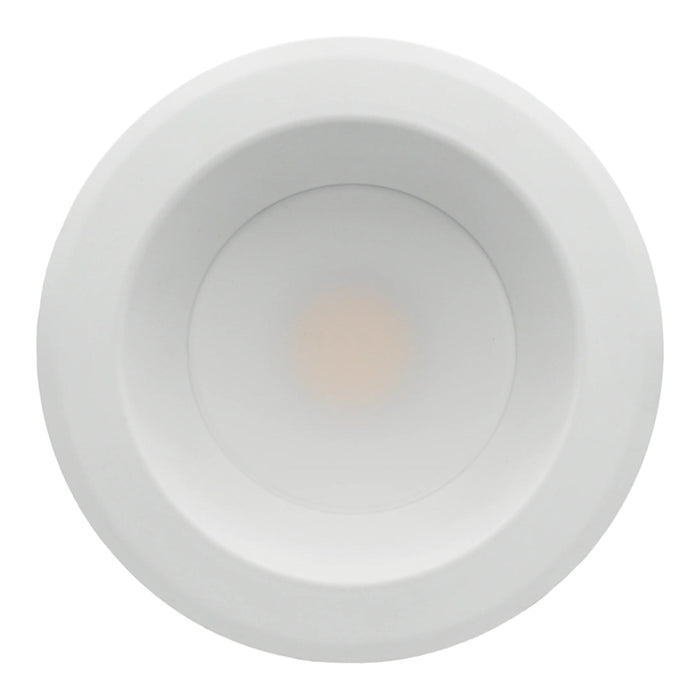

ETI Lighting CCDL-8-LB3-9CP4-MV-LVD 8" Commercial LED Downlight 25/29/35W 120-277V
by ETI Lighting
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$66.60
$66.60
-
$66.60
Current price
$66.60
Product Overview
The ETI Lighting CCDL-8-LB3-9CP4-MV-LVD is an 8-inch Capella commercial LED downlight with selectable lumen, wattage, and color temperature settings. Designed for 120-277V systems, it features 0-10V dimming and 90+ CRI for commercial recessed lighting applications.
Key Features & Design
- Functionality: Selectable 2400/2800/3300 lumens and 25/29/35W output with four selectable CCTs.

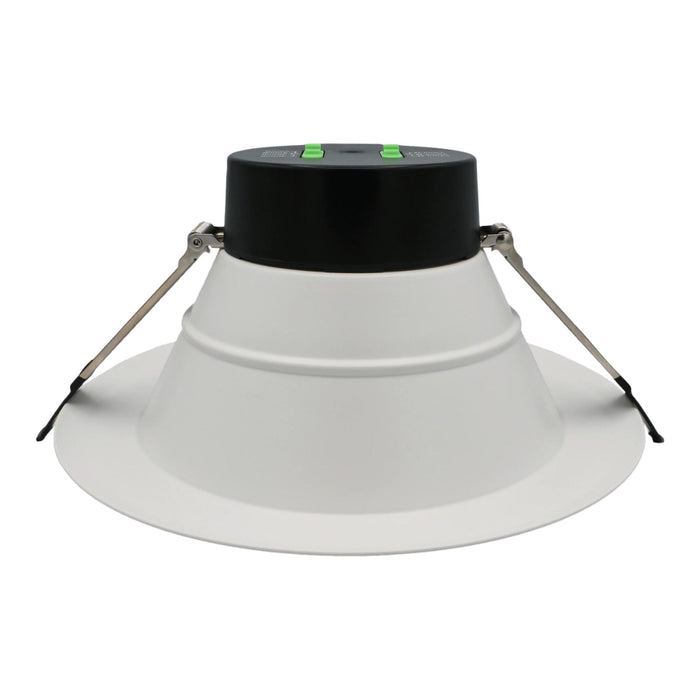

- Installation context: IC-rated and plenum-rated with spring retention clips; no separate recessed housing or junction box required.
- Notable specifications: 3000K/3500K/4000K/5000K, 90+ CRI, 120-277V, 0-10V dimming, wet-location rated.

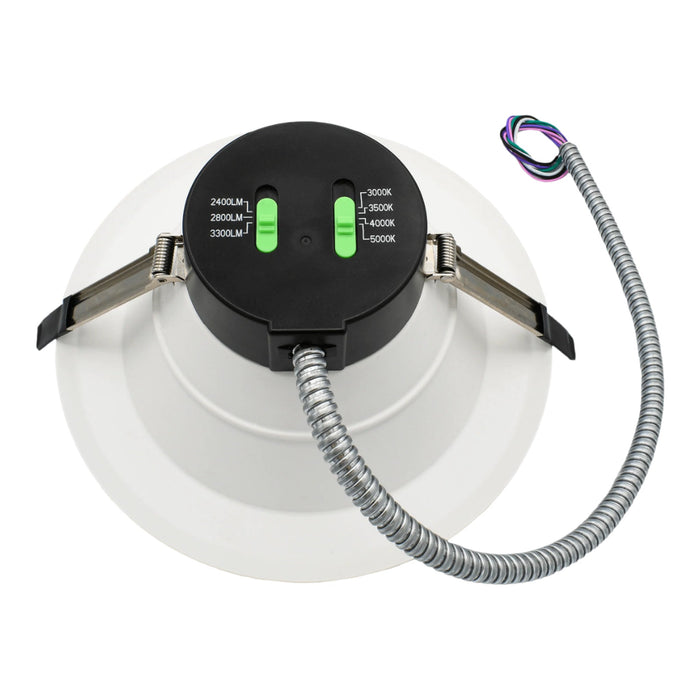

- Contractor-relevant details: Integral switches provide field selection of CCT and power.
Performance / Benefits
Selectable light output and CCT provide installation flexibility while simplifying onsite configuration for commercial lighting projects.
Specifications
Details
| Brand: | ETI Lighting |
|---|---|
| Manufacturer Part Number: | CCDL-8-LB3-9CP4-MV-LVD |
| UPC: | 6975367207918 |
| Wattage: | 25 |
| Lumens: | 2400 |
| Input Voltage: | 120–277V |
| Kelvin: | 3000 |
| CRI: | 90 |
| Color: | Matte White |
| Rated Hours: | 100000 |
| Special Features: | 3-Level Lumen Boost; 4-CCT Selectable; IC Rated; Plenum Rated; Wet Location |
| Certifications: | ETL Listed; ENERGY STAR; California Title 24; IC Rated |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 10 |
|---|---|
| Width: | 10 |
| Height: | 5 |
