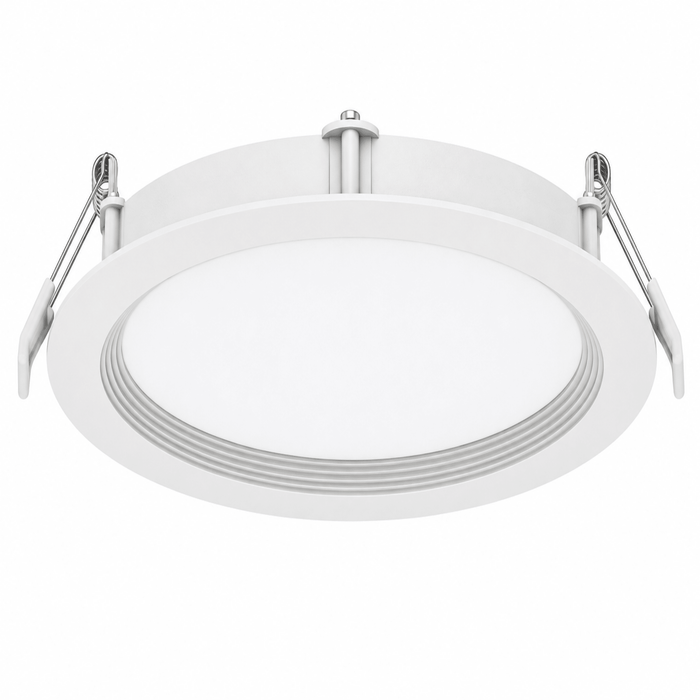

MaxLite SBRD-8R23T9CS-W 8" Baffle LED Downlight 5-CCT Selectable 23W 120V

Product Overview

The MaxLite SBRD-8R23T9CS-W is an 8-inch slim baffle LED downlight for canless recessed installations. It mounts directly into the ceiling and pairs a low-profile light engine with a remote driver junction box, eliminating the need for a conventional recessed can. Edge-lit optics provide broad, even illumination with a clean white baffle appearance suited to larger residential, hospitality, retail, office, and multi-unit spaces.

Key Features & Design

• Functionality: Produces 1,900 lumens from 23W with 90+ CRI and a 110-degree beam angle. Five selectable CCT settings—2700K, 3000K, 3500K, 4000K, and 5000K—are selected at the driver, and the fixture supports 120V TRIAC dimming from 10% to 100%.
• Installation context: Designed for direct ceiling mounting without a separate housing. The assembly is IC rated, airtight, and UL listed for wet locations, supporting use in appropriate insulated ceilings and moisture-prone areas.
• Notable specifications: 23W; 1,900 lm; 120V, 60Hz; 5-CCT selectable; CRI >=90; 110-degree beam; L70 >=50,000 hours; white baffle trim.
• Contractor-relevant details: The slim profile helps solve shallow-plenum conditions, while the remote driver simplifies branch-circuit access. Optional rough-in and emergency accessories are available for project-specific installations.

Performance / Benefits

High lumen output in a large 8-inch aperture makes the fixture useful where broader general illumination is needed. CCT selectability and dimming reduce SKU complexity and make final light appearance easier to tune during commissioning.
