Westgate CRLB6-10-18W-MCTP5-WH 6" Commercial Recessed LED Downlight 10W/15W/18W CCT Selectable

Product Overview

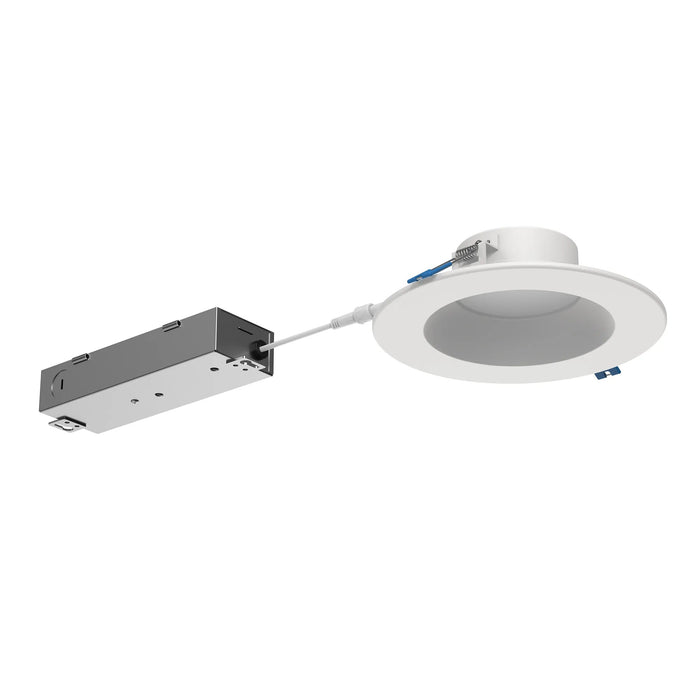

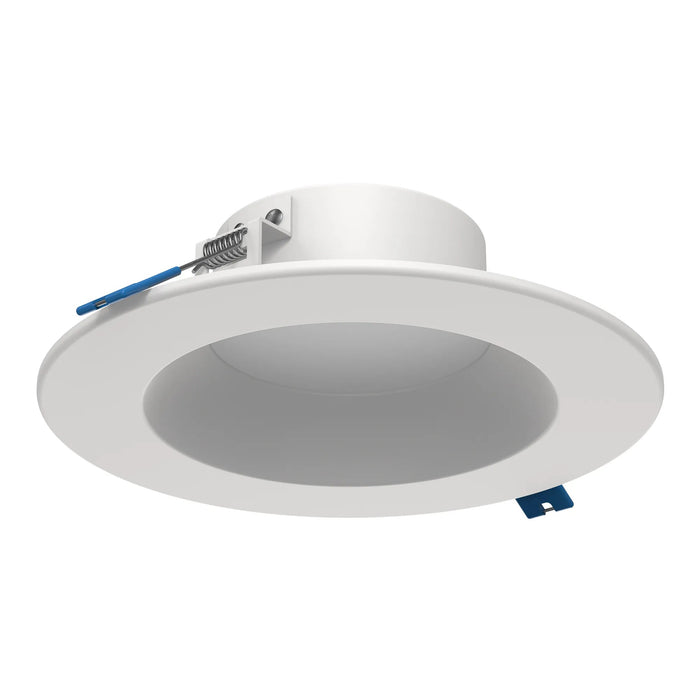

The Westgate CRLB6-10-18W-MCTP5-WH is a 6-inch commercial recessed LED downlight designed for flexible residential and commercial lighting applications. It features three selectable wattage settings and five selectable color temperatures, allowing installers to configure light output and CCT on site. Its all-in-one frame design mounts directly to the ceiling without requiring a separate housing.

Key Features & Design

• Functionality: Selectable 10W, 15W, or 18W operation with five selectable CCT settings of 2700K, 3000K, 3500K, 4000K, and 5000K.
• Installation context: Designed for recessed mounting in new construction and existing recessed applications. Suitable for residential and commercial spaces including closets, storage areas, attics, corridors, and general lighting applications.
• Notable specifications: 120-277V AC input, up to 1,548 lumens, 86 lm/W efficacy, >90 CRI, 95° beam angle, 0-10V dimming, 50,000-hour rated life, Type IC rating, and suitability for wet locations.

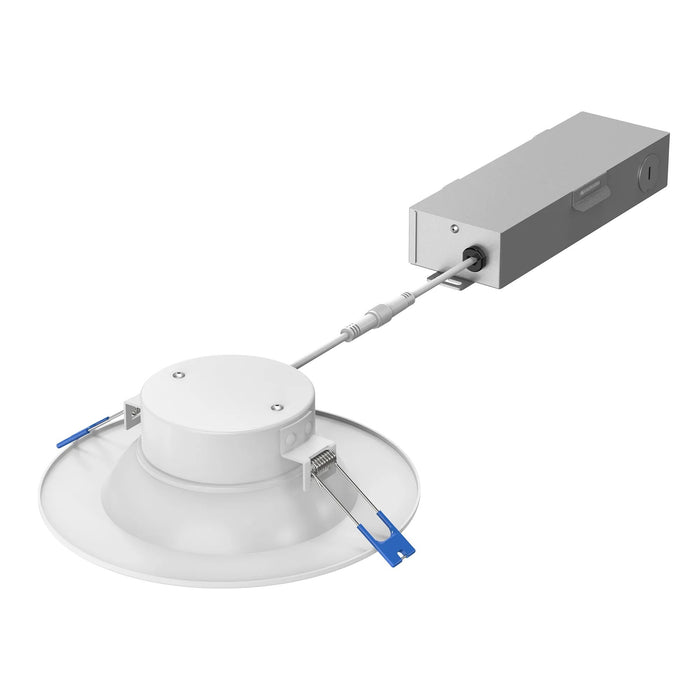

• Contractor-relevant details: Two integrated switches provide field selection of five CCT options and three power levels. The remote J-box supports 0-10V dimming, while the housing-free frame design simplifies installation.

Performance / Benefits

Selectable wattage and CCT provide installation flexibility from a single fixture, reducing the need to stock multiple fixed-output downlights. Depending on the selected wattage, the fixture delivers 860 lumens at 10W, 1,290 lumens at 15W, or up to 1,548 lumens at 18W.
