Leviton High Bay Sensor Occupancy Detection For Fixtures In Warehouses And Industrial Facilities

Product Overview

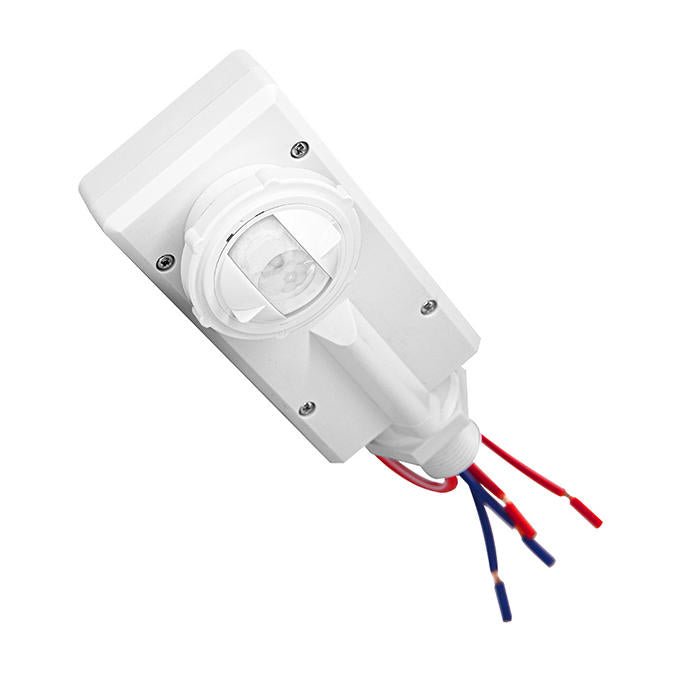

The Leviton Smart Fixture Mount High Bay Sensor is a PIR-based occupancy sensor designed for fixture-mounted installation in high-ceiling and industrial environments. It provides automatic lighting control for switching or 0–10V dimming fixtures, turning lights on when motion is detected and off when the space becomes vacant after a set timeout.

Key Features & Design

• Functionality: PIR occupancy sensor that automatically switches or dims lighting based on motion detection and vacancy timing.
• Installation context: Fixture-mounted sensor designed for direct integration into high bay and industrial luminaires, suitable for indoor and outdoor applications.

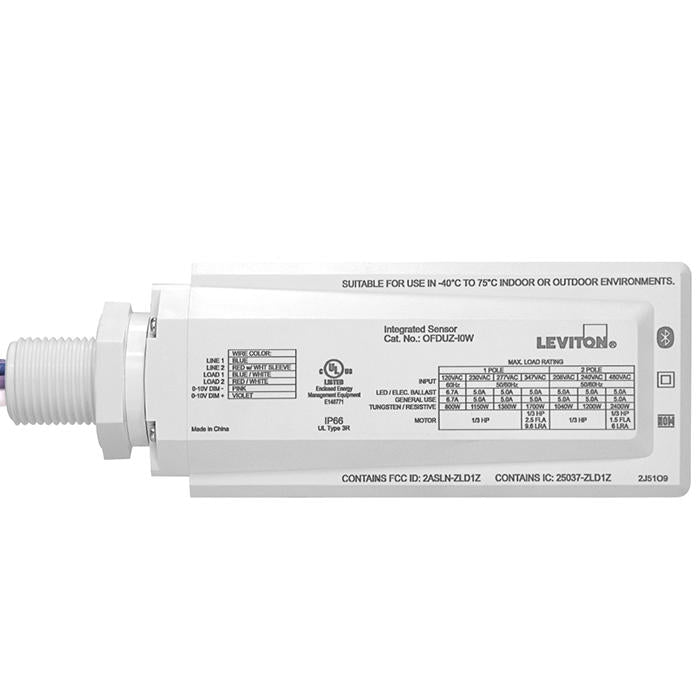

• Notable specifications: Supports switching and 0–10V dimming of connected fixtures; 120–277V / 480V input (model dependent); 360° field of view; coverage up to 8,250 sq ft at 40 ft mounting height; IP66 rated; adjustable timeout and sensitivity; Bluetooth app configuration.
• Contractor-relevant details: Supports grouping of up to 16 sensors for synchronized operation; configurable via mobile app for sensitivity, time delay, and daylight response; compatible with high bay fixtures using integrated mounting.

Performance / Benefits

This sensor improves lighting efficiency in large commercial and industrial spaces by automatically controlling fixtures based on occupancy. The wide 360° detection pattern and high mounting capability provide reliable coverage across large areas such as warehouses, parking structures, and manufacturing facilities. Adjustable sensitivity and timeout settings allow tuning for specific applications, while integrated daylight harvesting and optional dimming control further enhance energy savings by reducing unnecessary runtime while maintaining appropriate illumination levels.
