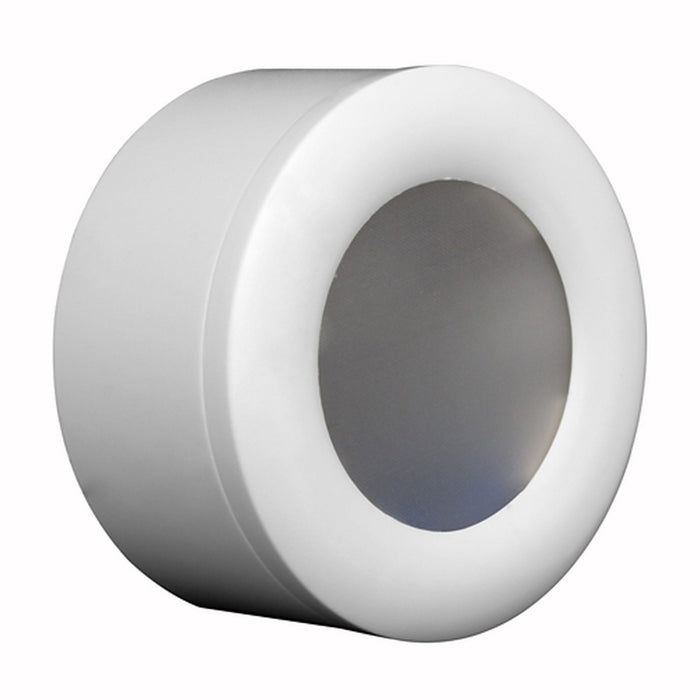

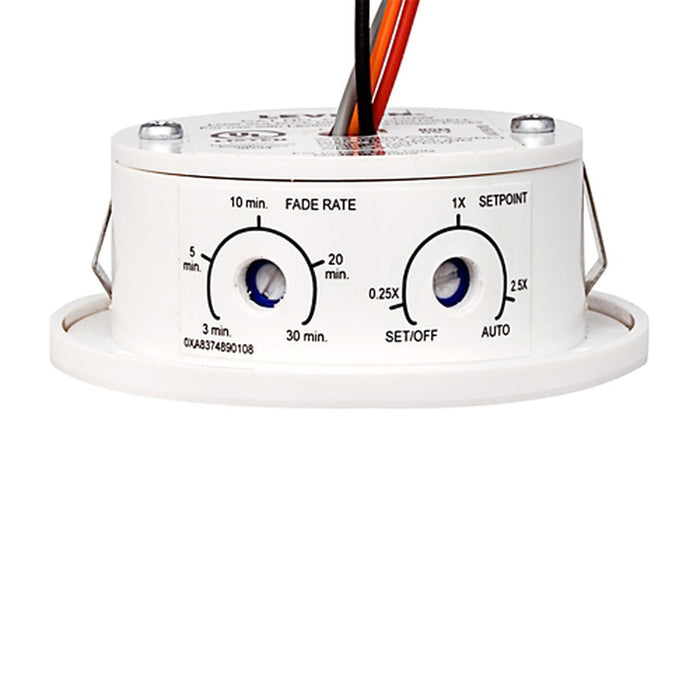

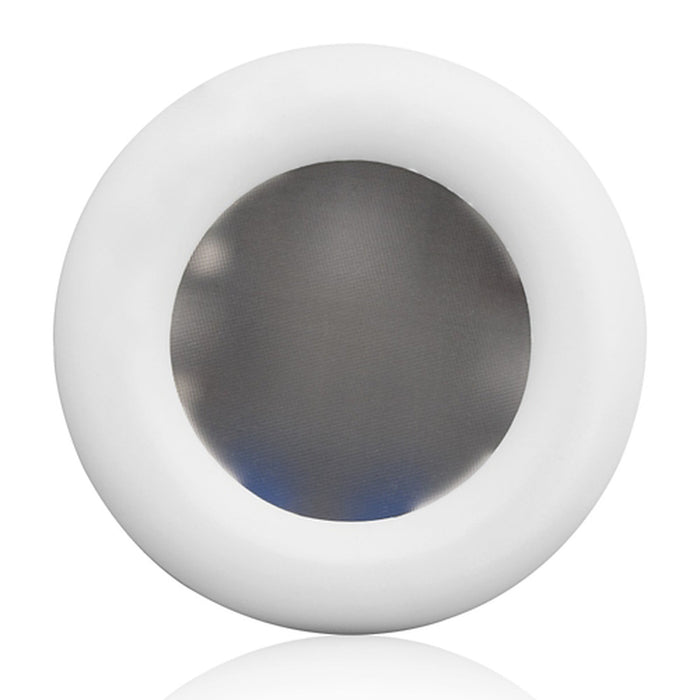

Leviton ODC0P-D0W Low-Voltage Dimming Photocell 0-10V White
by Leviton
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$125.55
$125.55
-
$125.55
Current price
$125.55
Product Overview
The Leviton ODC0P-D0W is an interior low-voltage photocell designed for daylight harvesting and continuous 0-10V lighting control. It monitors ambient light and automatically adjusts compatible fixtures to maintain a targeted light level.
Key Features & Design
- Functionality: Daylight-sensing photocell with continuous 1-10V sinking dimming control.
- Installation context: Ceiling surface or low-profile flush mounting for retrofit and daylight-harvesting applications.
- Notable specifications: 12-24VDC input, 1-1,600 fc sensitivity, 60° field of view and 8-12 ft mounting height.
- Contractor-relevant details: Supports Class 2 wiring and compatible Leviton OPP20 power packs.
Performance / Benefits
Auto-calibration and continual daylight measurement help maintain desired lighting levels while reducing unnecessary electric-light output.
Specifications
Details
| Brand: | Leviton |
|---|---|
| Manufacturer Part Number: | ODC0P-D0W |
| UPC: | 78477705070 |
| Wattage: | 1 |
| Input Voltage: | 12–24VDC |
| Color: | White |
| Detection Zone: | 60° Field of View |
| Special Features: | Daylight Harvesting; Auto-Calibration; 0-10V Dimming; 60° Field of View |
| Certifications: | UL 916 Listed; FCC Certified |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 3 |
|---|---|
| Width: | 3 |
| Height: | 2.5 |
