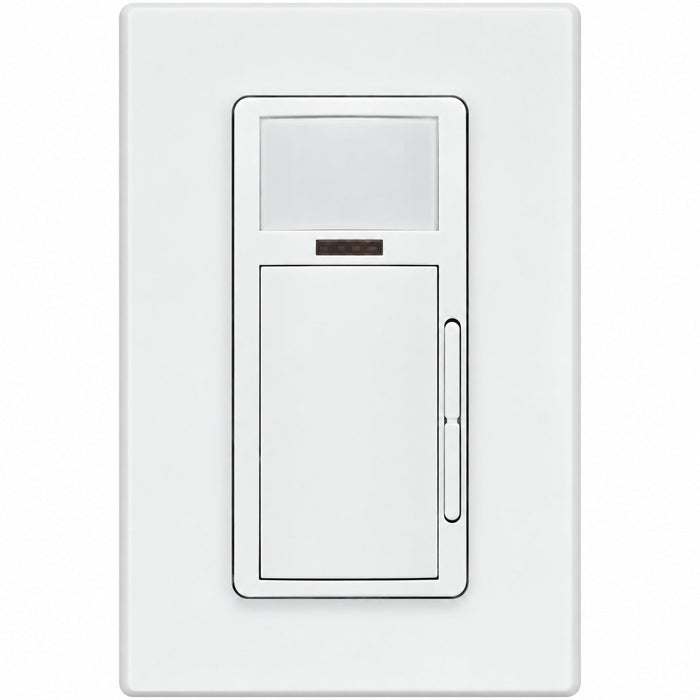

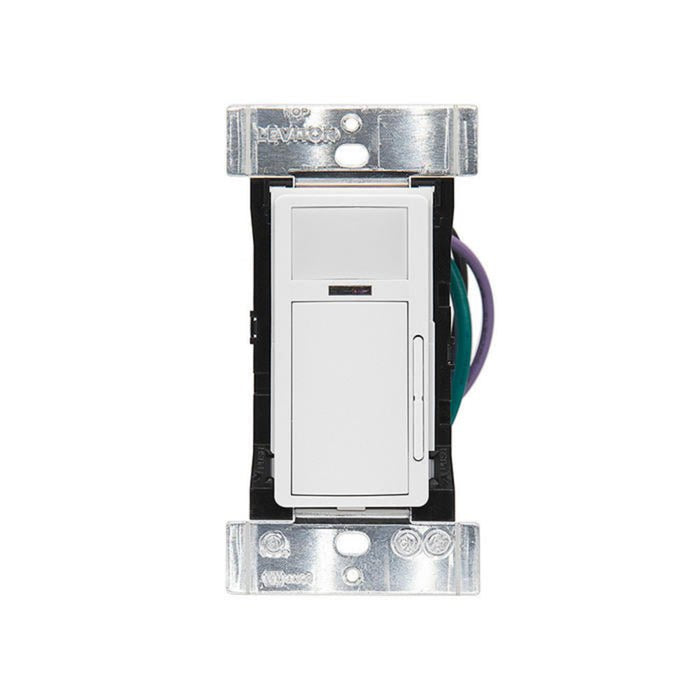

Leviton ODDMT-MDW Wallbox Multi-Technology Occupancy Sensor 0-10V 120-277V White

Product Overview

The Leviton ODDMT-MDW is a wallbox multi-technology occupancy sensor designed for automatic lighting control and 0-10V dimming. It combines passive infrared (PIR) and Microphonics technology to detect both major and minor motion while supporting daylight-responsive lighting control in commercial spaces.

Key Features & Design

• Functionality: Combines PIR and Microphonics occupancy detection with automatic switching and 0-10V dimming control.
• Installation context: Wallbox-mounted control designed for commercial retrofit and new construction applications.
• Notable specifications: 120-277V operation, 0-10V dimming, 180° field of view, up to 1,100 sq. ft. major-motion coverage, integrated photocell, and adjustable timeout and sensitivity.
• Contractor-relevant details: Supports configurable operating modes, multi-way applications, and setup through compatible controls.

Performance / Benefits

Multi-technology sensing improves occupancy detection by combining visible-motion PIR sensing with Microphonics technology for subtle activity, while daylighting control helps reduce unnecessary lighting operation.
