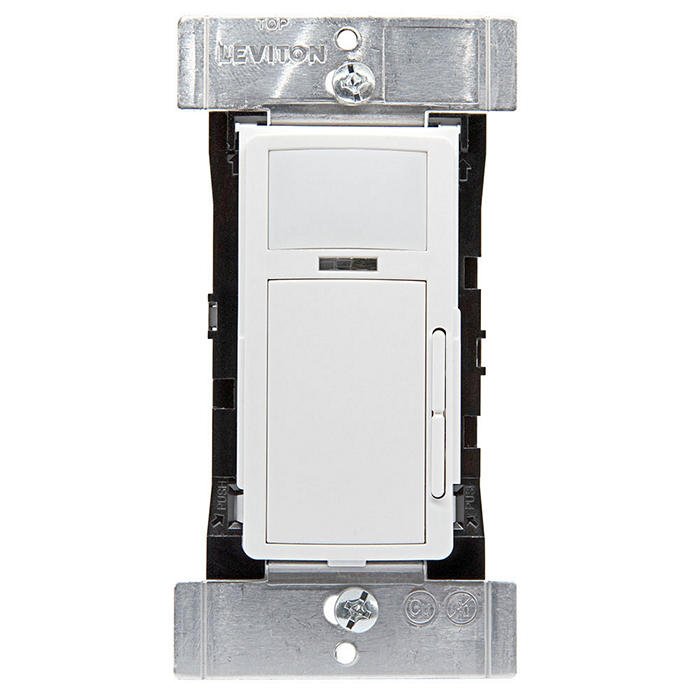

Leviton ODD10-IDW Smart Wallbox PIR Occupancy Sensor 0–10V Dimming 120–277V

Product Overview

The Leviton ODD10-IDW Smart Wallbox PIR Sensor is a wallbox-mounted occupancy sensor with integrated 0–10V dimming control designed for commercial lighting systems. It uses passive infrared (PIR) detection to monitor occupancy and automatically switch lighting on and off, while supporting dimming control for compatible 0–10V ballasts and drivers. Integrated daylighting hold-off and configurable settings enable efficient lighting operation in offices, classrooms, and other commercial environments.

Key Features & Design

• Functionality: PIR occupancy sensor that automatically switches lighting and provides 0–10V dimming control based on occupancy and ambient light conditions.
• Installation context: Designed for wallbox installation, suitable for retrofits and new construction where a wall-mounted control point is preferred.
• Notable specifications: 0–10V dimming control; 120–277V input; 180° field of view with up to 1,100 sq ft coverage; minor motion detection up to 400 sq ft; integrated photocell for daylighting hold-off; adjustable timeout and sensitivity; Bluetooth app configuration.
• Contractor-relevant details: Supports Auto-ON/Auto-OFF and Manual-ON/Auto-OFF modes for code compliance; configurable via mobile app or pushbutton setup; controls LED loads up to 8A; supports multi-way configuration for up to 5 devices.

Performance / Benefits

This sensor improves lighting efficiency by automatically controlling fixtures based on occupancy. PIR detection ensures reliable response to movement, including minor motion, helping maintain lighting when spaces are occupied. The integrated daylighting hold-off prevents lights from turning on when sufficient ambient light is present, reducing unnecessary energy consumption. Adjustable sensitivity, timeout settings, and dimming control enable fine-tuning for different room types, while the wallbox form factor simplifies installation and retrofit applications.
