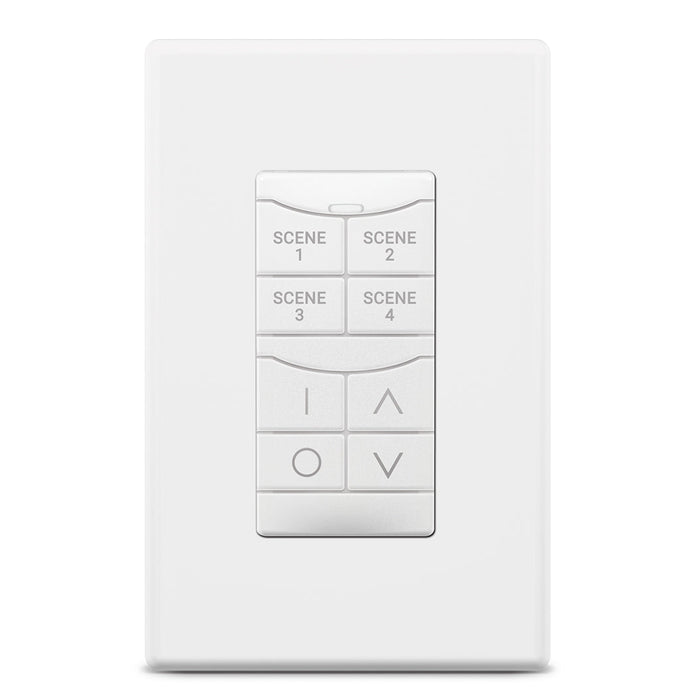

SensorWorx Digital 4-Scene Dimmer Wall Station White

Product Overview

The SensorWorx SWD-804-4S-WH is a digital 4-scene dimmer wall station designed for advanced commercial lighting control applications. The wall station provides programmable scene selection along with On/Off and raise/lower dimming control, enabling flexible lighting management for conference rooms, classrooms, offices, retail spaces, and other multi-zone commercial environments.

Key Features & Design

• Functionality: Digital 4-scene wall station with integrated scene recall, On/Off switching, and raise/lower dimming control for compatible SENSORWORX digital lighting control systems.
• Installation context: Designed for commercial lighting installations requiring scene-based lighting control, dimming adjustment, and multi-location wall station operation. Compatible with SENSORWORX digital load controllers, digital sensors, and advanced lighting automation systems.
• Notable specifications: 15VDC operation; 8mA current draw; proprietary SENSORWORX digital communication protocol; topology-free 3-wire digital data line; 1000 ft point-to-point wiring distance; 4000 ft total bus length; four programmable scene buttons; integrated raise/lower dimming control; digitally encrypted communications; decorator-style single-gang wall station; white finish; mobile app or push-button zone configuration; UL listed; FCC compliant; Title 24 compliant.
• Contractor-relevant details: Topology-free 3-wire architecture simplifies installation and avoids common CAT-5 wiring issues while supporting multi-way dimming and switching configurations. Push-button pairing and optional mobile app configuration streamline commissioning, while replaceable face kits support post-installation color customization without device removal.
