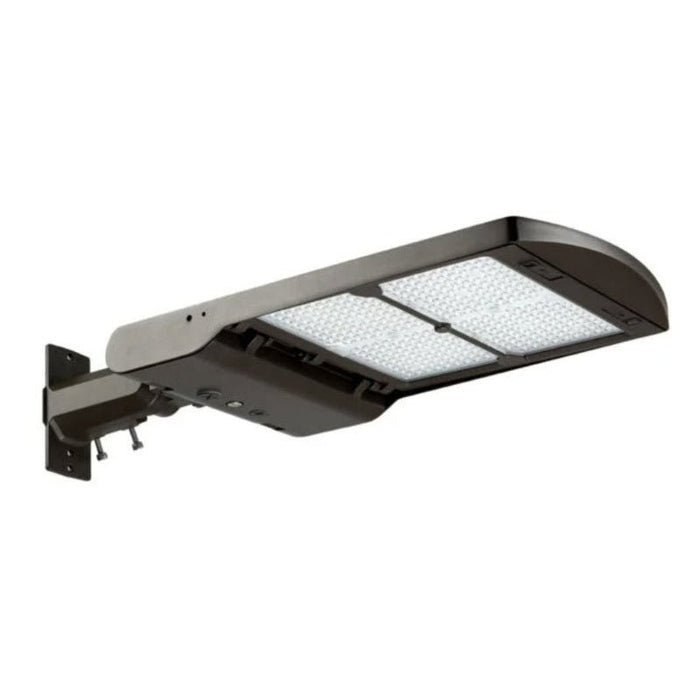

Atlas ORASEL30-43L Area Light 200W/240W/300W, CCT Selectable

Product Overview

The Atlas ORASEL30-43L Origin Series LED area light is a fully selectable outdoor lighting fixture designed for commercial and industrial site illumination applications requiring adaptable output, configurable optics, and energy-efficient performance. Operating on 120–277VAC, the fixture features selectable 200W/240W/300W wattage settings and selectable 3000K/4000K/5000K color temperatures while delivering up to 45,503 lumens for parking lots, roadways, commercial campuses, and perimeter lighting installations.

Key Features & Design

• Functionality: Fully selectable LED area light with adjustable wattage, selectable color temperature operation, interchangeable optics, and 0–10V dimming capability for commercial outdoor lighting applications.
• Installation context: Designed for pole-mounted and slipfitter-mounted commercial and industrial outdoor lighting installations in parking lots, roadways, distribution centers, municipal spaces, utility areas, site perimeters, and large-scale exterior lighting environments.
• Notable specifications: 120–277VAC operation; selectable 200W/240W/300W power settings; selectable 3000K/4000K/5000K color temperatures; up to 45,503 lumen output; CRI 80; 0–10V dimming; Type III optics pre-installed; Type IV (FT) and Type V optics included; die-cast aluminum housing; bronze powder-coated finish; IP65-rated construction; constant-current driver; 10kV/10kA surge protection; operating temperature range from -40°C to 50°C; DLC Premium listed; UL/cUL listed for wet locations; 100,000-hour rated life; multi-mount bracket with 180° adjustment capability.
• Contractor-relevant details: Field-selectable wattage, CCT, and optics reduce SKU complexity and provide installation flexibility across varying site requirements. Included Type IV (FT) and Type V optics allow tool-free field customization, while the adjustable multi-mount bracket supports both pole and slipfitter mounting configurations. Integrated photocontrol receptacle, sensor-ready design, and included shorting cap streamline advanced lighting-control integration.

Performance / Benefits

In commercial and industrial outdoor lighting applications, the ORASEL30-43L delivers high-output, uniform illumination with configurable distribution patterns for parking lots, roadways, campuses, and perimeter lighting environments. Its selectable wattage and color temperature functionality allow field configurability for varying project requirements while helping reduce inventory complexity. Integrated 0–10V dimming capability supports energy-efficient lighting control strategies, and the durable IP65-rated die-cast aluminum housing provides dependable long-term performance in demanding outdoor environments.
