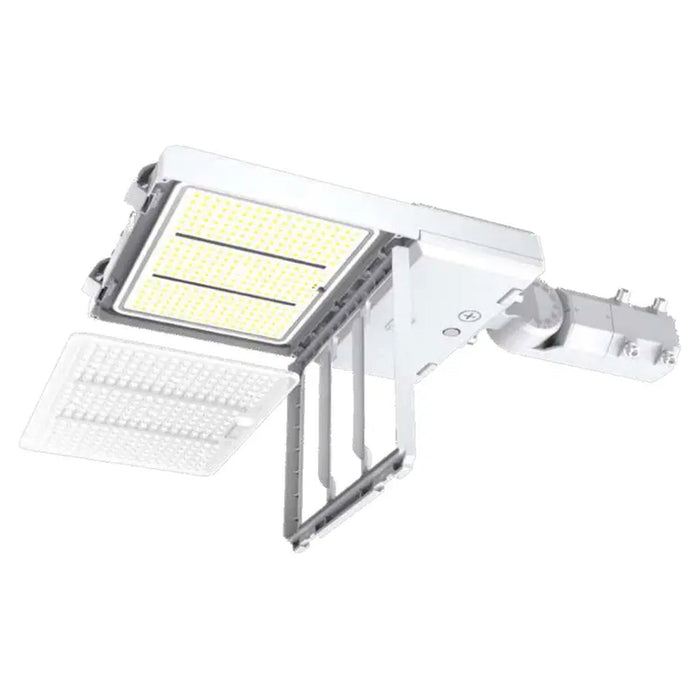

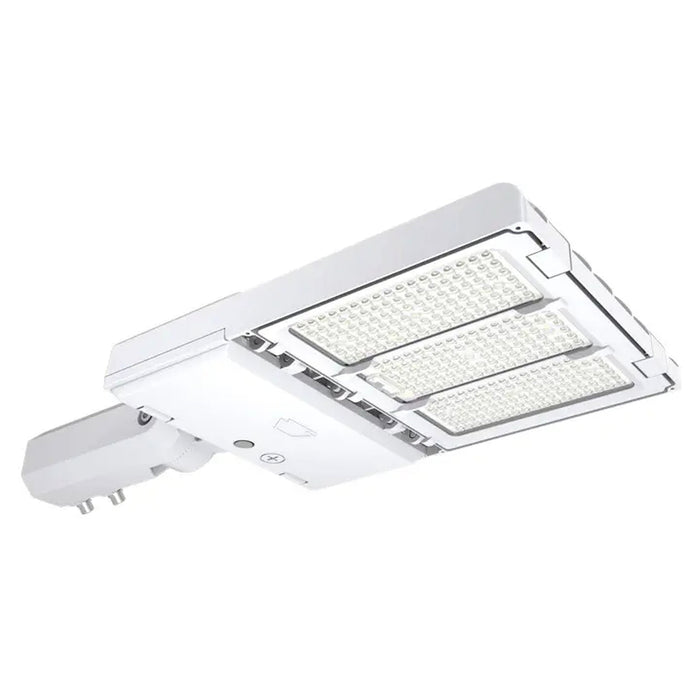

Keystone KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P-W Medium LED Area Light 70/100/140W 3CCT White
by Keystone
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$229.95
$229.95
-
$229.95
Current price
$229.95
Product Overview
The Keystone KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P-W is a medium white LED area light with selectable wattage and CCT, designed for pole- and structure-mounted outdoor lighting applications.
Key Features & Design
- Functionality: Power Select provides 70W, 100W, or 140W output, while Color Select offers 3000K, 4000K, or 5000K.
- Installation context: Includes a pre-installed slipfitter mount for 2-3/8 in. tenons.
- Notable specifications: 120-277V, 0-10V dimming, CRI >80, IP65, white housing, and integrated 7-pin twist-lock receptacle.
- Contractor-relevant details: Type III lens installed; Type IV and V lenses included for field-selectable distribution.
Performance / Benefits
Selectable wattage, CCT, and interchangeable optics provide flexible configuration for parking lots, pathways, roadways, and general outdoor area lighting.
Specifications
Details
| Brand: | Keystone |
|---|---|
| Manufacturer Part Number: | KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P-W |
| UPC: | 843654153117 |
| Wattage: | 70 |
| Lumens: | 9310 |
| Input Voltage: | 120-277V |
| Kelvin: | 3000 |
| CRI: | 80 |
| Color: | White |
| Rated Hours: | 100000 |
| Special Features: | Power Select; Color Select; Optic Swap; 7-Pin Twist-Lock Receptacle |
| Certifications: | UL Certified; FCC Part 15 Class A |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 24.76 |
|---|---|
| Width: | 11.18 |
| Height: | 6.77 |
