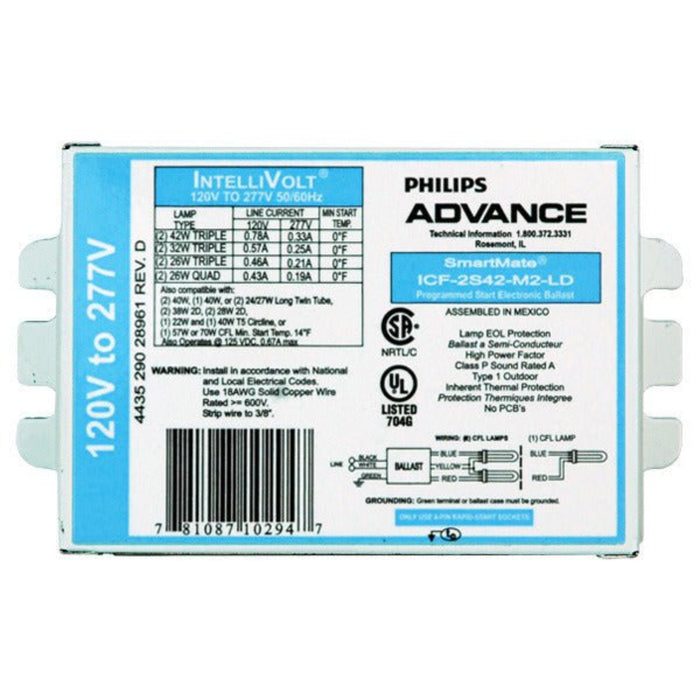

Advance ICF2S42M2LDK 2-Lamp 42W 4-Pin CFL Electronic Ballast Kit Programmed Start 120–277V

Product Overview

The Advance ICF2S42M2LDK SmartMate is an electronic fluorescent ballast kit designed to operate one or two 42W 4-pin compact fluorescent lamps. It supports CFTR42W/GX24Q lamps and features programmed-start operation, universal 120–277V input, automatic restart, and series lamp connection. The SmartMate family is designed for fixture manufacturing, retrofit, and MRO replacement applications.

Key Features & Design

• Functionality: Electronic ballast designed to regulate current for 2-Lamp 42W 4-pin CFL lamps, ensuring consistent lamp operation.
• Installation context: Suitable for integration into compatible fluorescent fixtures, supporting retrofit and replacement applications.
• Notable specifications: 120–277V input; 50/60 Hz; programmed start; 10% THD; 0.97 nominal ballast factor; 0.98 nominal power factor; 1.5 crest factor; 1.5-second ignition time; 93W nominal input power; 42W rated lamp power.
• Contractor-relevant details: Series lamp connection, solid 18 AWG wiring, poke-in connectors, and support for remote, tandem, and through-wiring configurations provide flexibility for commercial fixture installation and replacement.

Performance / Benefits

The ICF2S42M2LDK provides reliable universal-voltage operation for commercial 4-pin CFL fixtures. Programmed-start ignition supports controlled lamp startup, while automatic restart, poke-in connections, and flexible wiring configurations simplify installation and replacement. Its compact SmartMate housing makes it suitable for fixture manufacturers, retrofitters, and MRO applications.
