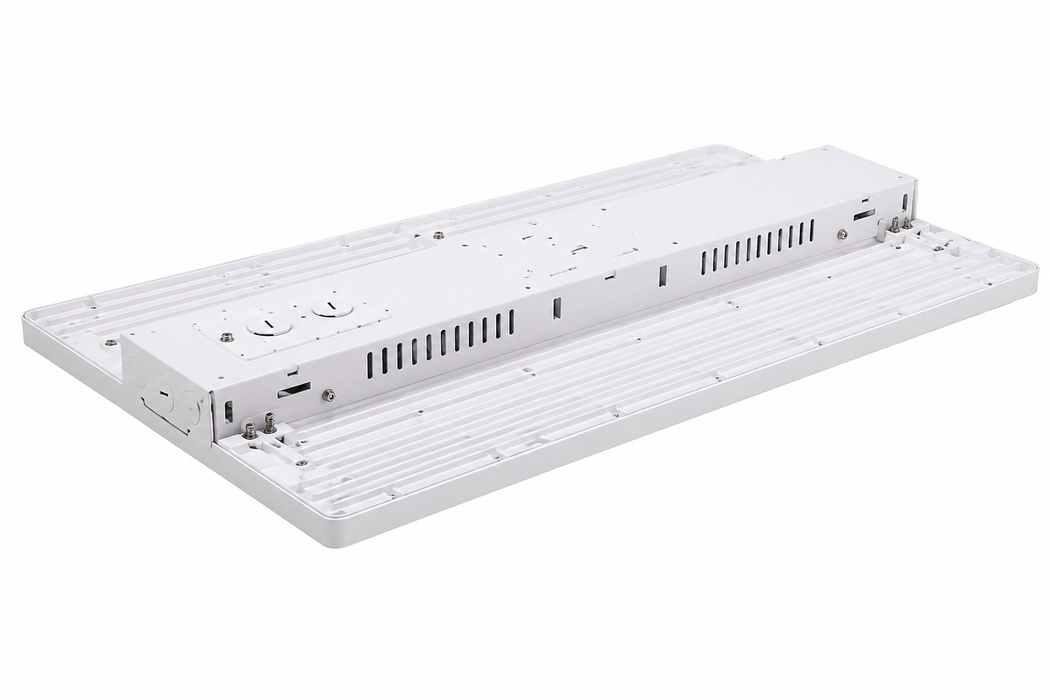

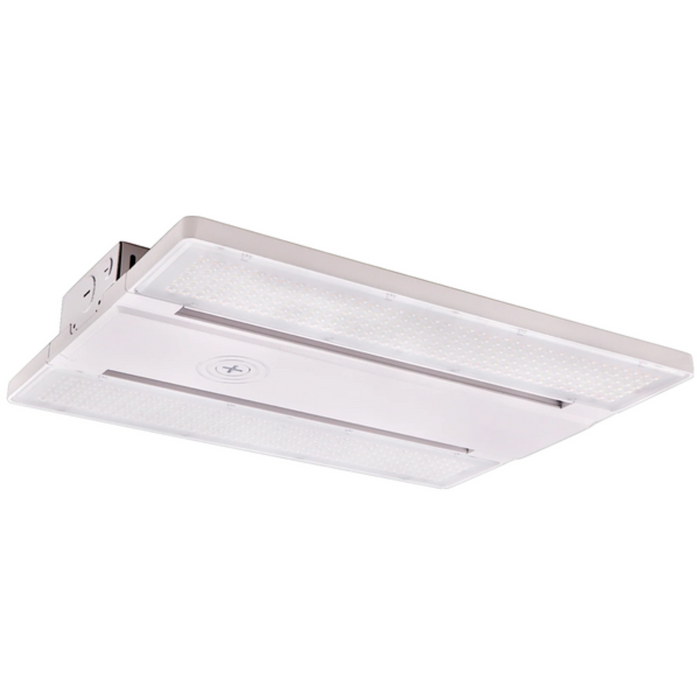

Archipelago LLHB320-2CS-UT Titan-II LED Linear High Bay 215W/255W/320W 4000K/5000K 120-277V

Product Overview

The Archipelago Lighting LLHB320-2CS-UT Titan-II LED Linear High Bay is a commercial-grade fixture engineered for warehouses, gyms, industrial buildings, and retail facilities. Its 3-WATTselect system provides 215W, 255W, or 320W settings, while 2-CCTselect allows field selection between 4000K and 5000K. The compact die-cast aluminum housing delivers high output without the bulk of a traditional full-size high bay and is designed to replace fluorescent and metal-halide systems.

Key Features & Design

• Functionality: Selectable 215W/255W/320W output, 4000K/5000K CCT, and 0-10V dimming for adaptable commercial lighting.
• Installation context: Suitable for suspended high-bay installations in warehouses, industrial areas, gyms, and retail spaces; optional pendant and surface mounting accessories are available.
• Notable specifications: Up to 48,320 lm; CRI >80; 120-277V for the UT configuration; IP20 damp-location rating; 23.00 in L × 11.60 in W × 1.76 in H; 5.95 lb.
• Contractor-relevant details: Standard suspension hardware is included, 6kVA surge protection is built in, and optional motion sensing, emergency drivers, optics, wire guards, and mounting kits support project-specific requirements.

Performance / Benefits

Titan-II combines selectable output, compact construction, and long service life to reduce inventory and installation complexity. L70 exceeds 100,000 hours, while the standard 7-year/75,000-hour warranty supports long-term commercial operation.
