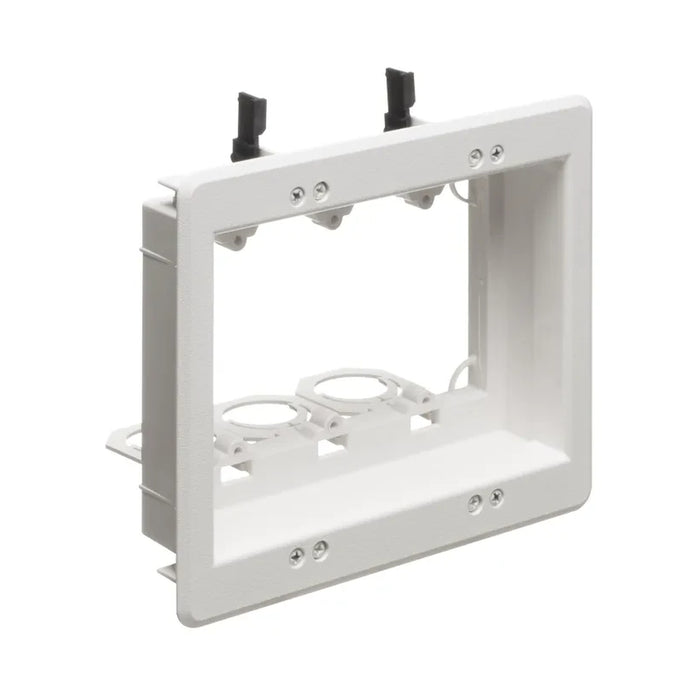

Arlington LVU3W 3-Gang Recessed Low-Voltage Mounting Bracket White

Product Overview

The Arlington LVU3W is a 3-gang recessed low-voltage mounting bracket for Class 2 cable installations in existing walls or new construction. Its recessed design keeps cable connectors behind the finished wall surface, providing a clean installation for low-voltage wiring applications.

Key Features & Design

• Functionality: Provides a recessed mounting point for routing and terminating Class 2 low-voltage cables.
• Installation context: Suitable for retrofit or new construction and adjusts to wall thicknesses from 1/4 to 1-1/2 inches.
• Notable specifications: 3-gang configuration; white paintable trim plate; non-metallic construction; 6.818 × 7.930 × 2.048 in.
• Contractor-relevant details: Mounting wings secure the bracket to wallboard. Includes cable tie-off loops, two attachable knockouts, device plate, trim plate, and four screws.

Performance / Benefits

The recessed configuration keeps connectors from extending beyond the wall surface while supporting flexible low-voltage cable routing in new-work and retrofit installations.
