Diode LED DI-ODBELV-24V96W-LPS OMNIDRIVE BASICS 96W 24VDC ELV Dimmable Driver

Product Overview

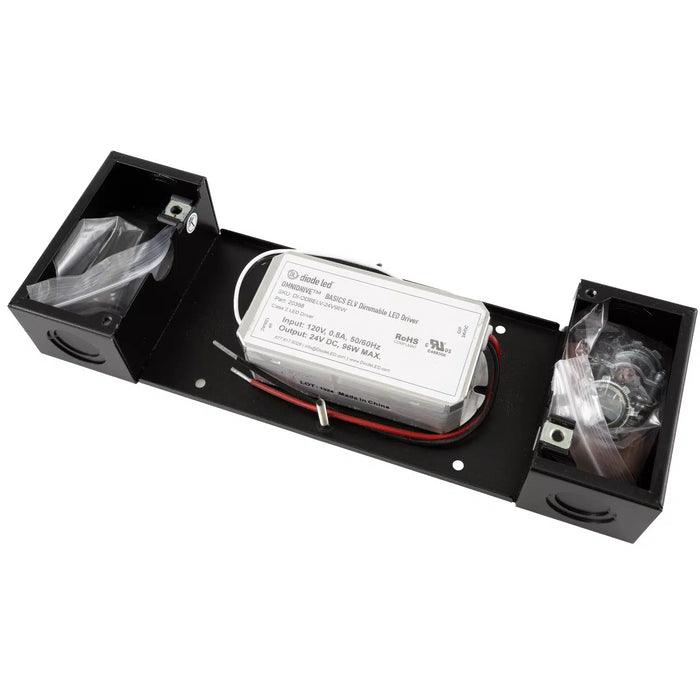

The Diode LED DI-ODBELV-24V96W-LPS OMNIDRIVE BASICS is a 96W electronic dimmable ELV driver designed to provide 24VDC Class 2 output for compatible low-voltage LED lighting systems. This LPS model includes a UL Listed junction box and operates from 120VAC, providing a complete enclosed driver solution for indoor and damp-location installations.

Key Features & Design

• Functionality: Provides 24VDC Class 2 output with a maximum 96W load and supports ELV dimming down to 5% with no minimum load.

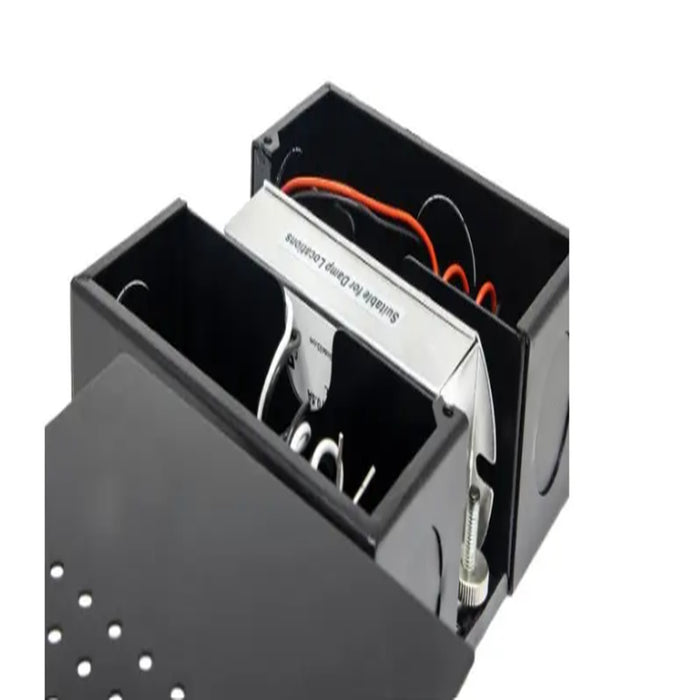

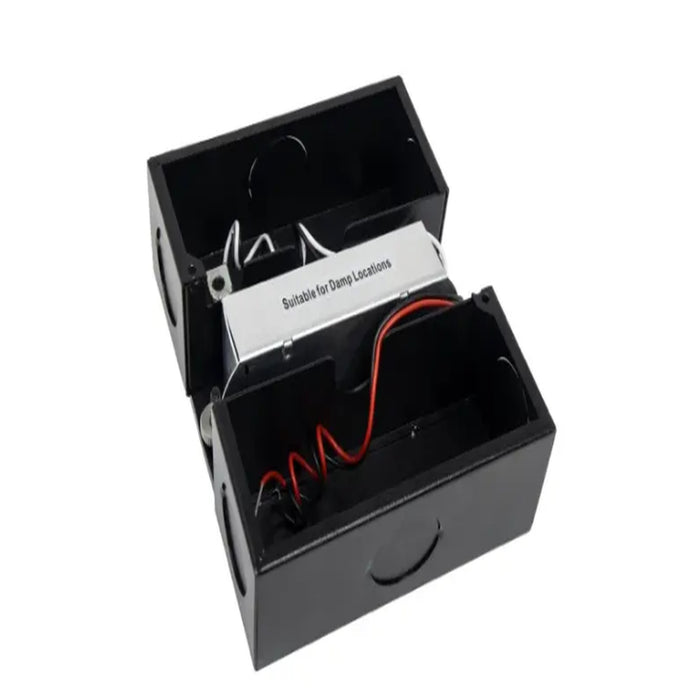

• Installation context: Designed for indoor and damp-location LED lighting installations. The LPS configuration incorporates a UL Listed junction box for an enclosed installation.
• Notable specifications: 120VAC 50/60Hz, 0.83A input; 24VDC output; 96W maximum load; approximately 85% efficiency; Class 2 output; IP20; and 95% RH maximum working humidity.

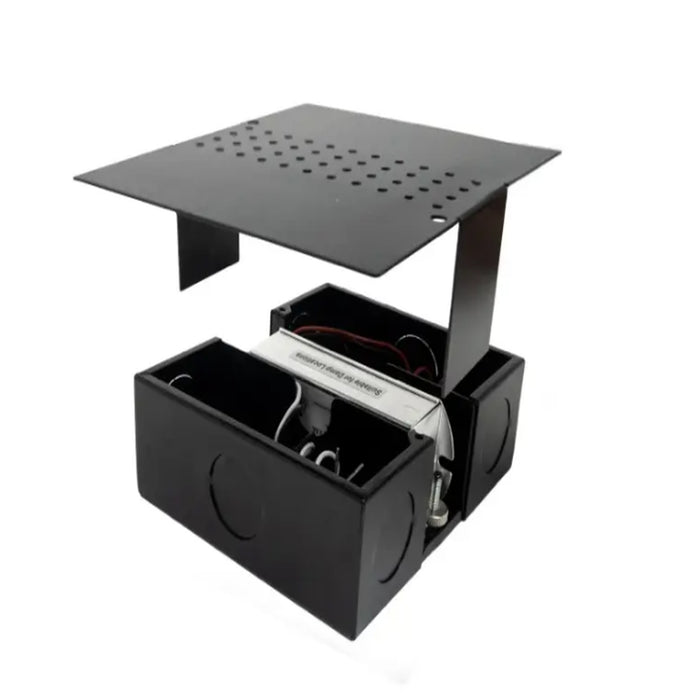

• Contractor-relevant details: Features auto-reset short-circuit, overload, and thermal protection. The LPS enclosure measures 11.25 × 3.75 × 1.9 inches (L × W × H). The specification sheet also lists a 5-year warranty

Performance / Benefits

The OMNIDRIVE BASICS driver combines a 96W load capacity, 24VDC Class 2 output, smooth ELV dimming to 5%, and built-in circuit protection in an enclosed junction-box configuration. Its no-minimum-load operation provides flexibility across compatible low-voltage LED loads, while the LPS enclosure supports a clean, protected installation.
