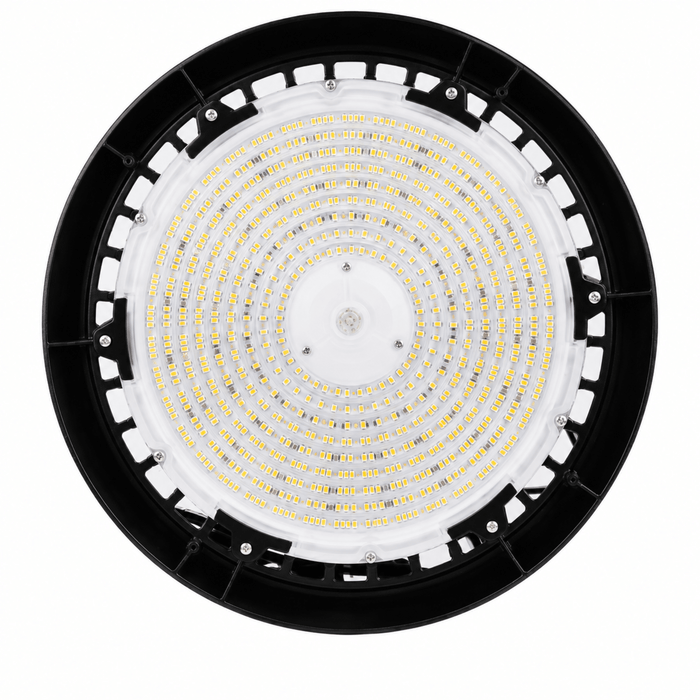

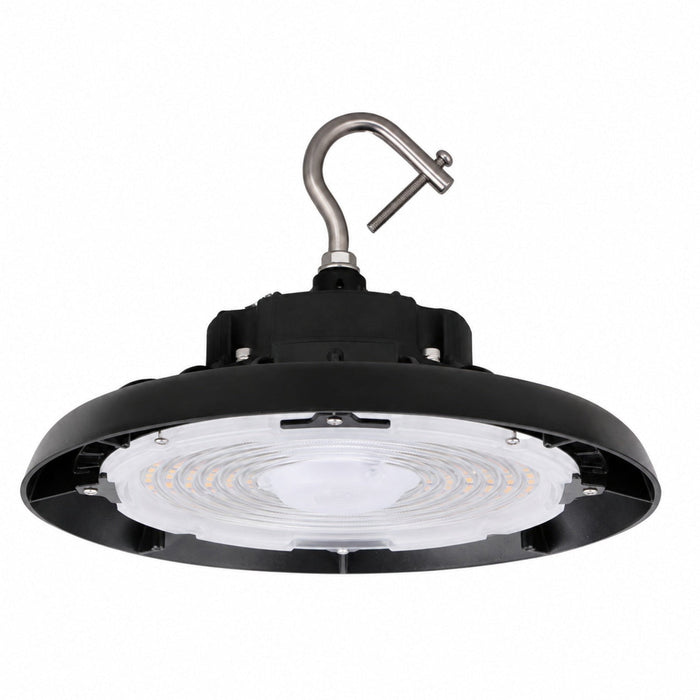

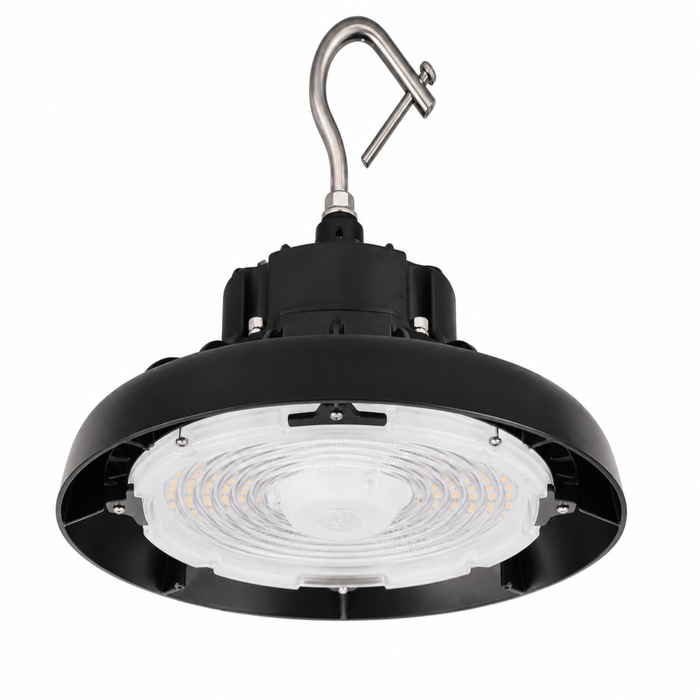

EiKO BAYE3-PS240-FCCT-H 240W Selectable LED High Bay
Product Overview
The EiKO BAYE3-PS240-FCCT-H Value Round High Bay is designed for everyday warehouse, manufacturing, distribution, grocery, gymnasium, big-box retail, and service applications. PowerSET provides 180W, 200W, or 240W field-selectable output, while ColorSET offers 3500K, 4000K, or 5000K selection. At the maximum setting, the fixture delivers up to 36,000 lumens from a 120-347V input, allowing one high-bay platform to cover multiple mounting and illumination requirements.
Key Features & Design
- Functionality: Three selectable wattages, three selectable CCTs, standard 0-10V dimming with Dim-to-Off, and a controls-ready receptacle.
- Installation context: Designed for high-bay mounting in warehouses, manufacturing plants, distribution centers, gyms, grocery stores, and indoor recreational facilities.
- Notable specifications: 180/200/240W; 27,000/30,000/36,000 lm; 3500K/4000K/5000K; 120-347V; CRI >80; 90° beam; IP65; 12.8 in diameter × 8.2 in H.
- Contractor-relevant details: Includes a mounting hook plus 10-ft 600V power and dimming cords. Optional yoke, pipe adapter, wire guards, reflectors, emergency lighting, and plug-and-play sensors support varied installations.
Performance / Benefits
BAYE3 combines power and color selection with controls-ready capability to simplify inventory and field setup. Its die-cast aluminum housing, included 6kV surge protection, DLC Premium listing, and L70 greater than 100,000 hours support dependable, low-maintenance commercial lighting.
Specifications
Details
| Brand: | EiKO |
|---|---|
| Manufacturer Part Number: | BAYE3-PS240-FCCT-H |
| UPC: | 0 31293 13168 |
| Wattage: | 180 |
| Lumens: | 27000 |
| Input Voltage: | 120-347 VAC |
| Kelvin: | 5000 |
| CRI: | 80 |
| Color: | Black |
| Switch Type: | PowerSET (3 Power Settings) & ColorSET (3 CCT Settings) |
| Occupancy Sensor Type: | Controls Ready; Optional Plug-and-Play PIR or Microwave Motion Sensor; Bluetooth PIR Sensor Available |
| Sensor Coverage: | 40 Sq Ft |
| Rated Hours: | 100000 |
| Special Features: | Power Selectable (240W/200W/180W), Color Selectable (3500K/4000K/5000K), Controls Ready, 0-10V Dim-to-Off Dimming, 90° Beam Angle, IP65 Rated, 6kV Surge Protection, Die-Cast Aluminum Housing, Mounting Hook Included |
| Certifications: | UL Certified, DLC Premium, RoHS Compliant, FCC, CAN ICES-005, IP65 Rated |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 14.5 |
|---|---|
| Width: | 14.5 |
| Height: | 5.25 |
