EMC SH3/8X1-7/8 3/8" x 1-7/8" Zinc-Plated Sleeve Anchors 50-Pack

Product Overview

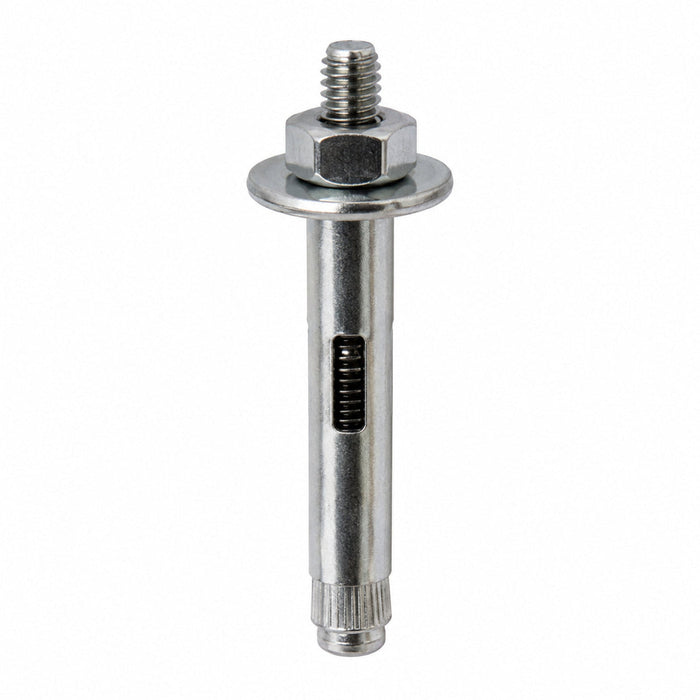

The EMC SH3/8X1-7/8 is a zinc-plated carbon steel sleeve anchor designed for anchoring applications in brick, cinder block, marble, and concrete. It features a 3/8-inch anchor diameter and uses a matching 3/8-inch hole size, simplifying drill-size selection during installation. The anchor has a 1-1/2-inch minimum embedment and is supplied in a standard package of 50.

Key Features & Design

• Functionality: Sleeve anchor designed to provide dependable anchoring in compatible masonry and concrete materials.
• Installation context: Manufacturer-listed applications include brick, cinder block, marble, and concrete, as well as anchoring door frames, aluminum and steel angles, and steel columns.
• Notable specifications: 3/8 in. anchor diameter; 3/8 in. hole size; 5/16 in. bolt diameter; 1-1/2 in. minimum embedment; 15 ft-lb torque; zinc-plated carbon steel; 50-piece package.
• Contractor-relevant details: The anchor diameter and required hole size are both 3/8 inch, simplifying drill selection. Verify substrate suitability, minimum embedment, and installation requirements before use.

Performance / Benefits

The SH3/8X1-7/8 combines zinc-plated carbon steel construction with clearly specified installation dimensions for masonry and concrete anchoring applications. EMC lists 1,590 lb tension and 3,060 lb shear values at 2,000 PSI, along with a 15 ft-lb torque specification. These values should be treated as manufacturer-listed test/reference values for the specified 2,000 PSI condition rather than universal working-load ratings.
