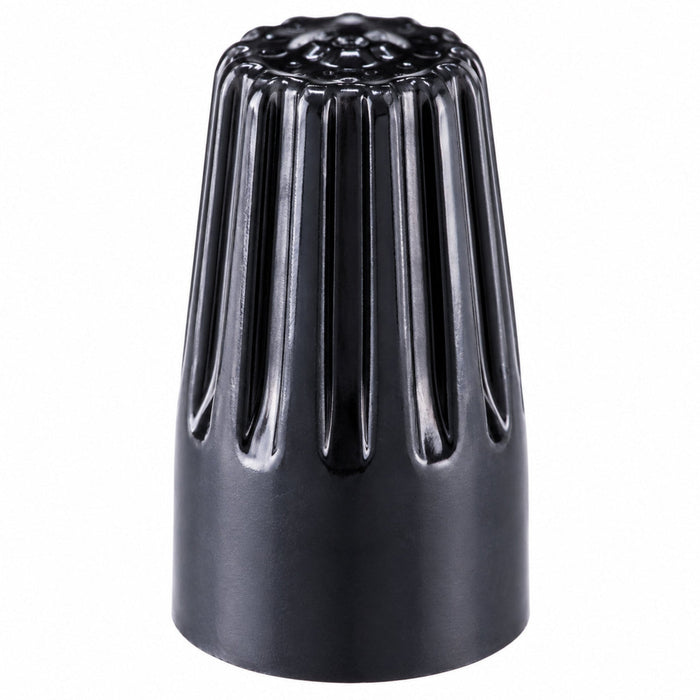

IDEAL 30-3628 72B High-Temperature Wire-Nut Connectors

Product Overview

The IDEAL 30-3628 72B High-Temperature Wire-Nut Connector is designed for electrical connections in elevated-temperature applications. Its black thermoplastic shell and fixed square-wire spring provide a secure connection while supporting conductor combinations from 22 to 14 AWG. The connectors are supplied in a box of 100.

Key Features & Design

• Functionality: Fixed square-wire spring creates its own threads for a secure connection and eliminates the need for pre-twisting.
• Installation context: Designed for high-temperature electrical connections, including applications associated with lighting fixtures and signs.
• Notable specifications: MPN: 30-3628; Model: 72B; Conductor range: 22–14 AWG; Voltage rating: 300V; Temperature rating: 150°C (302°F); Color: Black; Package quantity: 100.
• Contractor-relevant details: Reusable construction supports circuit changes and additions, while the deep-skirt design helps provide additional protection around the connection.

Performance / Benefits

The IDEAL 30-3628 combines a high-temperature design with a reusable fixed square-wire spring connection, providing a practical solution for electrical installations requiring secure connections at elevated temperatures.
