Intermatic AG6503C3 3-Phase Surge Protective Device 347/600VAC 50kA

Product Overview

The Intermatic AG6503C3 is a 6-mode surge protective device designed for 347/600VAC 3-phase Wye systems. Rated for Type 1 or Type 2 applications, it provides surge protection for service entrances, distribution panels, and compatible outdoor electrical equipment.

Key Features & Design

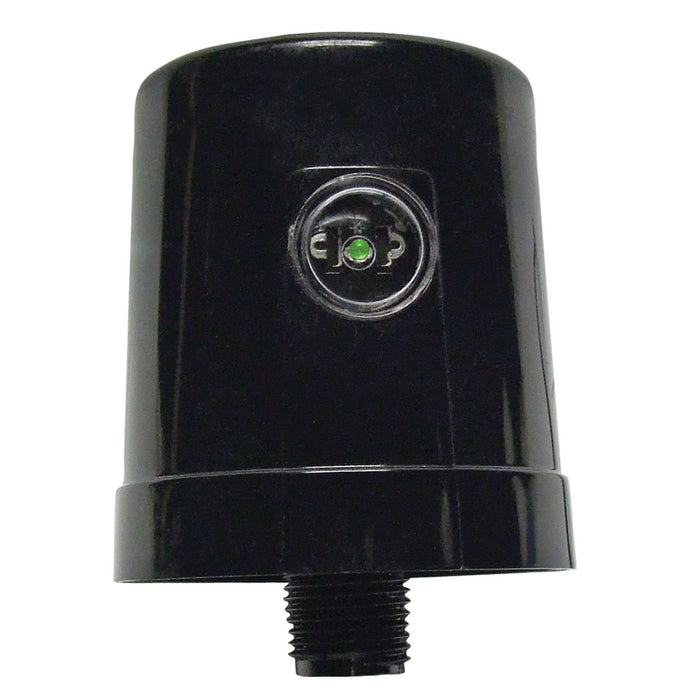

• Functionality: Provides six modes of protection using TPMOV surge protection technology with a green LED protection-status indicator.
• Installation context: Designed for Type 1 installations before service entrances or Type 2 installations after service entrances, including indoor and outdoor applications.
• Notable specifications: 47/600VAC 3-phase Wye, 50kA maximum surge current per phase, 20kA nominal discharge current, and 50kA short-circuit current rating.

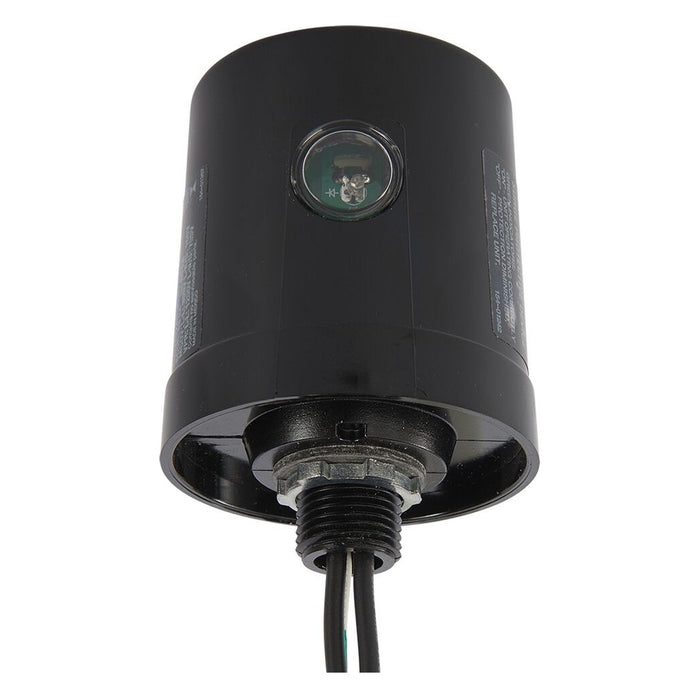

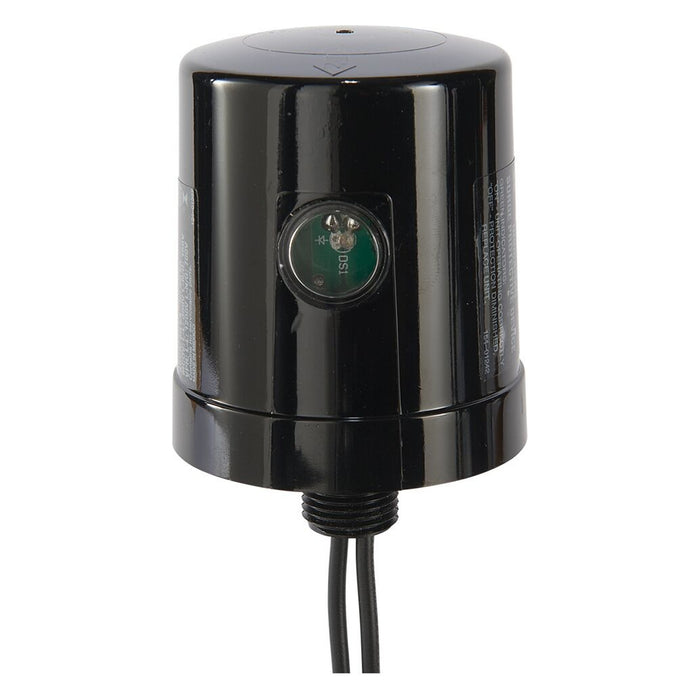

• Contractor-relevant details: Type 4X watertight enclosure features UV-resistant polycarbonate construction, four wire leads, and a 1/2-inch threaded nipple for a 7/8-inch nominal conduit knockout.

Performance / Benefits

Provides six-mode surge protection for 347/600VAC commercial electrical systems, while the Type 4X enclosure supports dependable indoor and outdoor installations.
