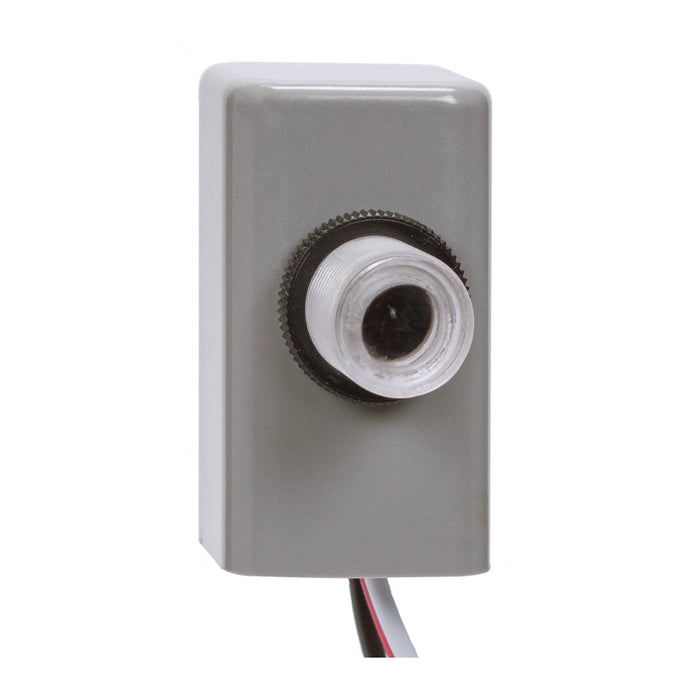

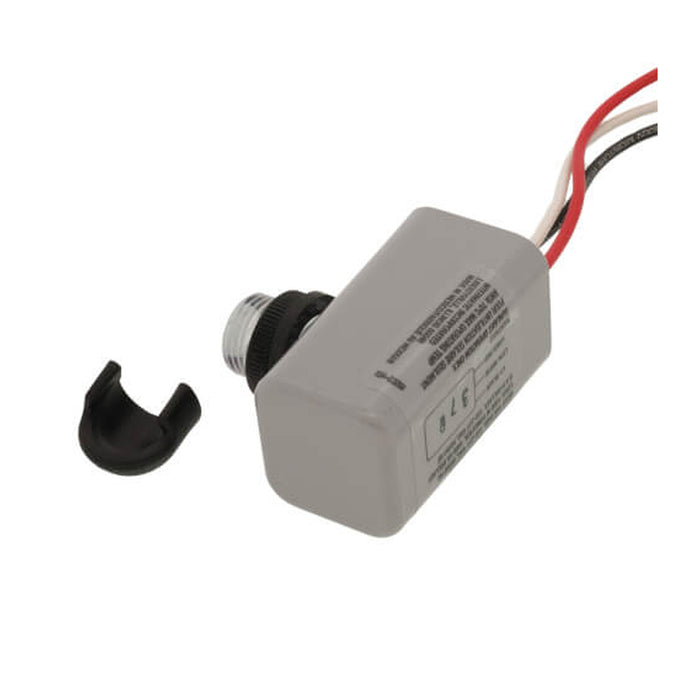

Intermatic EK4036S NIGHTFOX Button Electronic Photocell 120-277V
by Intermatic
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$24.95
$24.95
-
$24.95
Current price
$24.95
Product Overview
The Intermatic EK4036S NIGHTFOX Electronic Photocontrol automatically switches outdoor lighting based on ambient light levels. Designed for permanent installation inside outdoor-rated enclosures, junction boxes, or fixtures, this compact button-style control supports 120–277V circuits and LED, HID, and incandescent loads.
Key Features & Design
- Functionality: Silicon-diode photocell provides instant ON and a 2–5 second OFF delay, with fail-ON operation.
- Installation context: Internally mounts through a minimum 5/8-inch enclosure opening using 6-inch color-coded wire leads.
- Notable specifications: 120–277V AC; 6A electronic ballast load; 1,000W tungsten load; 1,800VA magnetic ballast load; gray polycarbonate housing.
- Contractor-relevant details: Zero-crossing relay, 255J MOV surge protection, 10,000+ switching cycles, cULus certification, and an 8-year limited warranty.
Performance / Benefits
The EK4036S provides reliable dusk-to-dawn control that reduces manual operation and supports efficient outdoor lighting management.
Specifications
Details
| Brand: | Intermatic |
|---|---|
| Manufacturer Part Number: | EK4036S |
| UPC: | 0 78275 14628 0 |
| Input Voltage: | 120–277 VAC, 50/60 Hz |
| Color: | Gray |
| Switch Type: | Electronic Relay Photocontrol |
| Detection Zone: | Ambient Light Detection |
| Special Features: | Non-drift silicon light sensor with IR filter, DC relay with zero-crossing circuitry, conformal coated PCB, 15-year design life, 10,000+ switching cycles, fail-ON mode, 255J MOV surge protection, 5,000A surge protection, button mount, 3/8"-18 NPSM thread, #18 AWG wire leads. |
| Certifications: | cULus, Title 20, ANSI C136.24, Green Energy+, LED Compatible, RoHS Compliant |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 5" |
|---|---|
| Width: | 3" |
| Height: | 2" |
