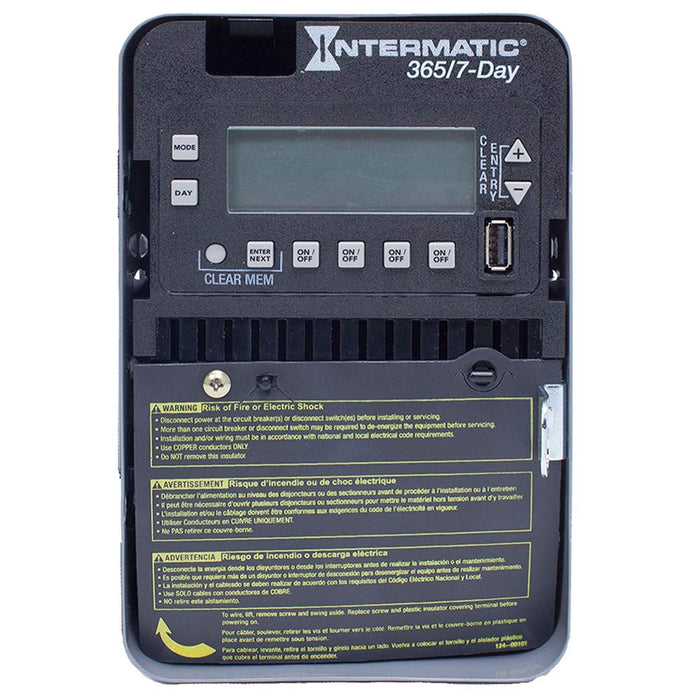

Intermatic ET2745C 4-Circuit 7-Day Electronic Timer 30A 120-277V

Product Overview

The Intermatic ET2745C is a 4-circuit electronic timer control designed for 7-day scheduling with automatic 120–277 VAC voltage selection. Its configurable outputs support indoor lighting, machinery, pump, and other compatible control applications.

Key Features & Design

• Functionality: Provides up to 96 ON/OFF events and 50 holiday blocks with flexible scheduling and automatic daylight saving adjustment.
• Installation context: Indoor Type 1 metal enclosure with terminal wiring and four configurable circuits.
• Notable specifications: 120–277 VAC, 60 Hz, 30A; 4 circuits; configurable 4-SPST, 2-DPST, or pulse switching; 1-minute minimum ON/OFF time.
• Contractor-relevant details: Includes 100-hour supercapacitor backup, non-volatile EEPROM memory, LED compatibility, and USB schedule transfer.

Performance / Benefits

Flexible scheduling, configurable outputs, and battery-free backup provide dependable automated control for demanding commercial applications.
