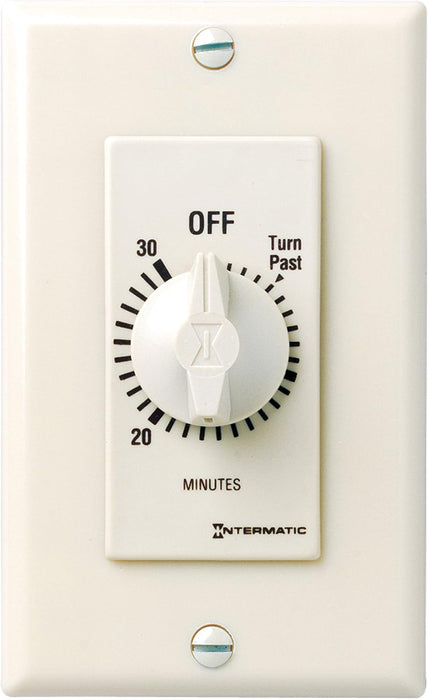

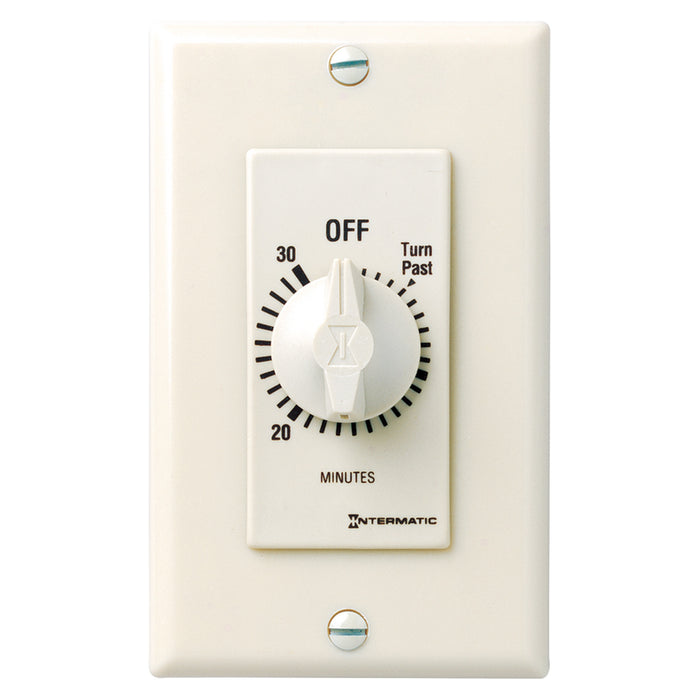

Intermatic FD30MAC 30-Minute In-Wall Countdown Timer 125-277V

Product Overview

The Intermatic FD30MAC is a 30-minute spring-wound in-wall countdown timer designed to automatically limit operating time for lighting, fans, motors, heaters, and other compatible loads. Its mechanical design requires no electricity for timer operation and supports 125–277 VAC applications.

Key Features & Design

• Functionality: Provides up to 30 minutes of timed operation and automatically breaks the circuit when the timing cycle ends.
• Installation context: Replaces standard or decorator-style switches in single- or multi-gang installations; no neutral connection is required.
• Notable specifications: 125-277 VAC, 50/60 Hz, SPST switching, mechanical operation, light almond finish, and no hold function.
• Contractor-relevant details: Front teeter-type terminals support convenient installation. Compatible with incandescent, fluorescent, CFL, and LED loads.

Performance / Benefits

Mechanical countdown operation automatically limits equipment ON time without requiring power for timer operation, providing straightforward control for lighting, ventilation, motor, and compatible heating applications.
