Intermatic HB114 Heavy-Duty 24-Hour Plug-In Timer 240V 20A

Product Overview

The Intermatic HB114 is a heavy-duty 24-hour mechanical plug-in timer designed for automatic ON/OFF control of compatible 240V appliances and equipment. It plugs directly into a wall outlet and is intended for indoor applications such as air movement, ventilation, and lighting control.

Key Features & Design

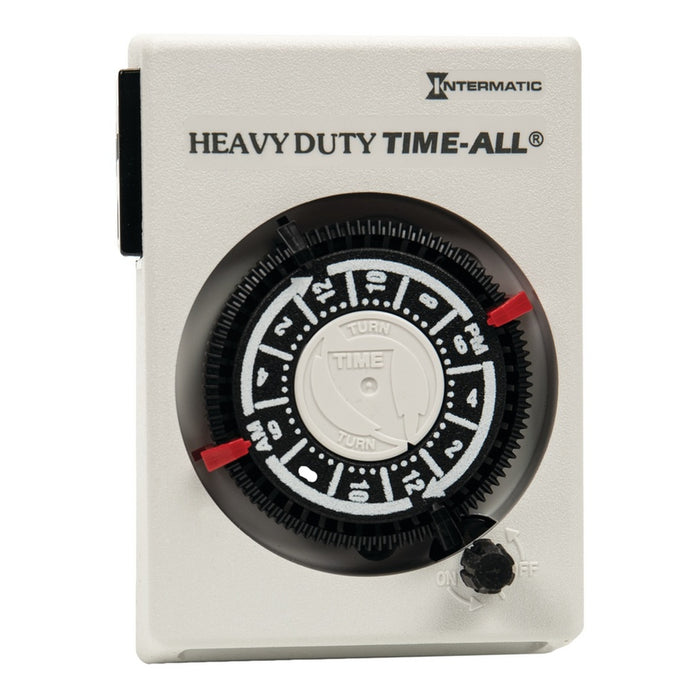

• Functionality: Provides 2 ON and 2 OFF settings per day with removable trippers, 30-minute minimum switching intervals, and manual ON/OFF override.

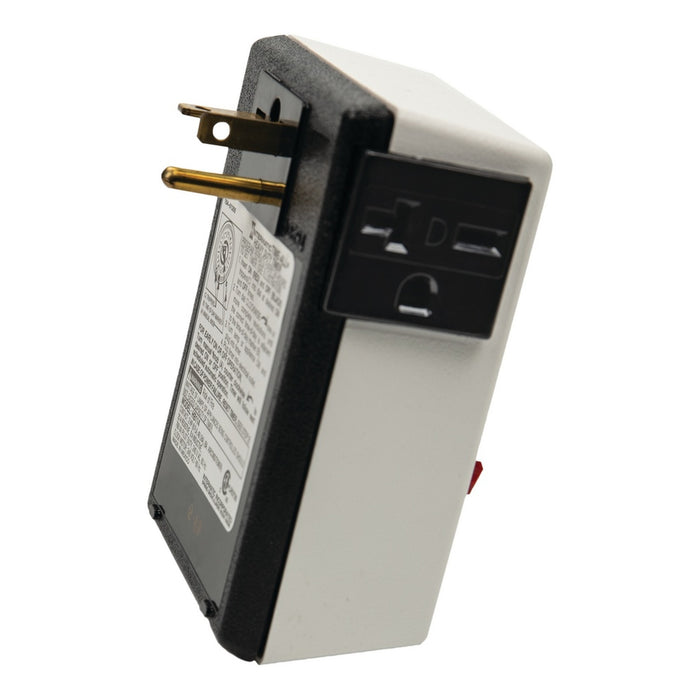

• Installation context: Plug-in configuration with a grounded NEMA 6-20 plug and receptacle for compatible 240V equipment.

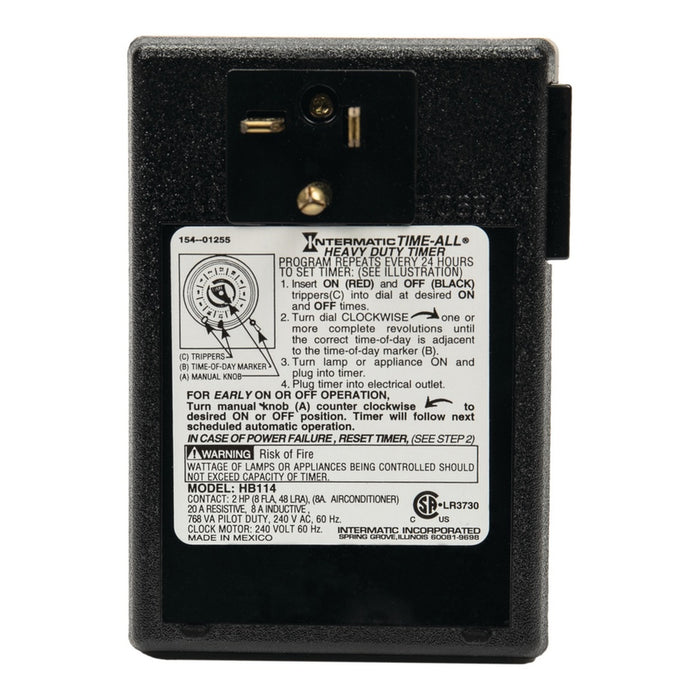

• Notable specifications: 240 VAC, 60 Hz, 20A, 4800W, with a 2 HP motor rating and 8A air-conditioner load rating at 240V.
• Contractor-relevant details: Additional compatible trippers can be used for more ON/OFF settings, while the plug-in design eliminates hardwired timer installation.

Performance / Benefits

Mechanical 24-hour scheduling provides straightforward automatic control of compatible high-power loads, while manual override allows temporary operation without changing the established timer schedule.
