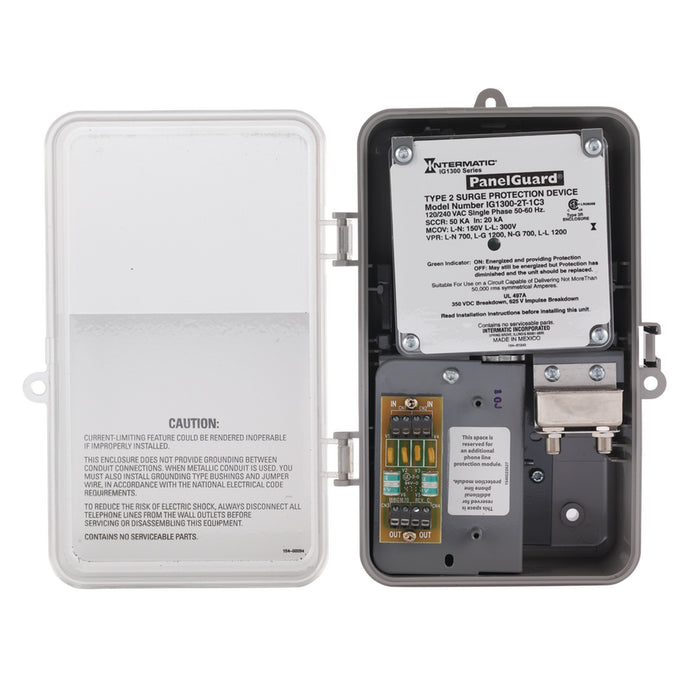

Intermatic IG1300-2T-1C3 Type 2 Surge Protector 6-Mode 120/240V
by Intermatic
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$367.73
$367.73
-
$367.73
Current price
$367.73
Product Overview

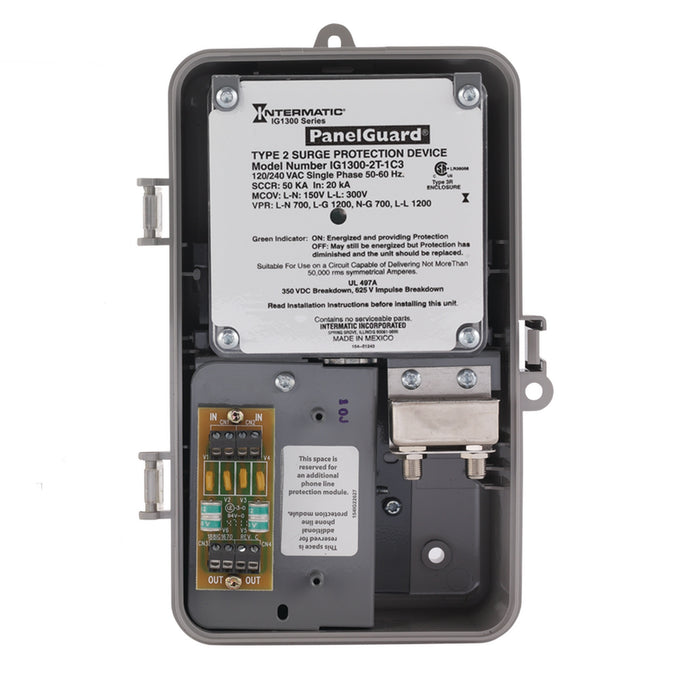

The Intermatic IG1300-2T-1C3 is a Type 2 surge protective device designed to protect 120/240VAC single-phase AC power, two telephone lines, and one coax line. TPMOV surge protection technology and a green LED provide reliable protection and status indication.
Key Features & Design
- Functionality: Provides six modes of AC surge protection plus protection for two telephone lines and one coax line.
- Installation context: Designed for Type 2 applications after the service entrance and suitable for indoor or outdoor installations.
- Notable specifications: 120/240VAC single-phase operation, 20kA nominal discharge current, 50kA short-circuit current rating, and six protection modes.
- Contractor-relevant details: Features a Type 3R plastic rainproof enclosure, four 24-inch wire leads, #12 AWG maximum tinned copper wire, and TPMOV surge protection technology.
Performance / Benefits
Combines AC, telephone, and coax surge protection in one device for centralized protection of electrical and communication equipment.
Specifications
Details
| Brand: | Intermatic |
|---|---|
| Manufacturer Part Number: | IG1300-2T-1C3 |
| UPC: | 78275124387 |
| Input Voltage: | 120/240 VAC, Single Phase |
| Color: | Gray |
| Special Features: | Type 2 SPD, TPMOV® Technology, 6-Mode Protection, 2 Telephone Lines, 1 Coax Line, Green LED, Type 3R Enclosure |
| Certifications: | cCSAus SPD Type 2; ANSI/UL 1449 5th Edition; UL 497A; UL 497B |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 12.5 |
|---|---|
| Width: | 7.25 |
| Height: | 4.5 |
