Intermatic IG2240-PK Whole House Surge Protector 6-Mode 120/240V

by Intermatic

$0.00 - $0.00

$0.00

$217.93

$217.93 - $217.93

$217.93

Product Overview

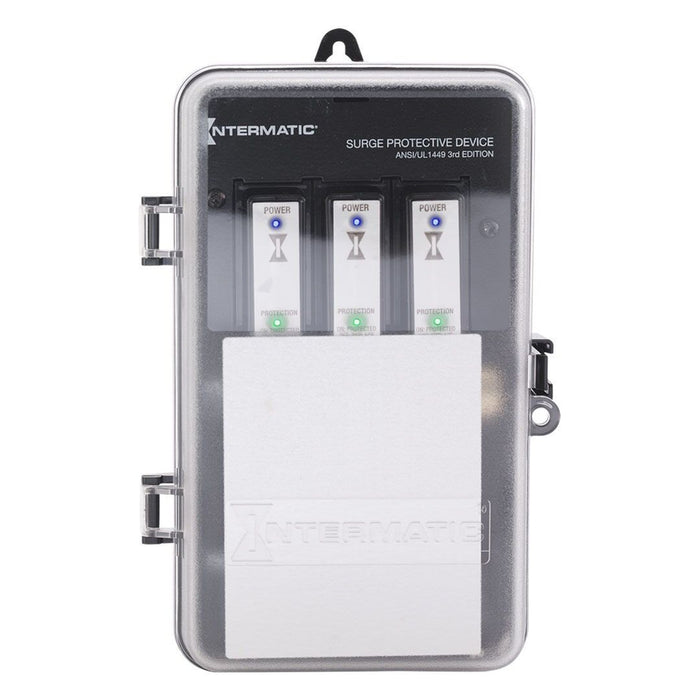

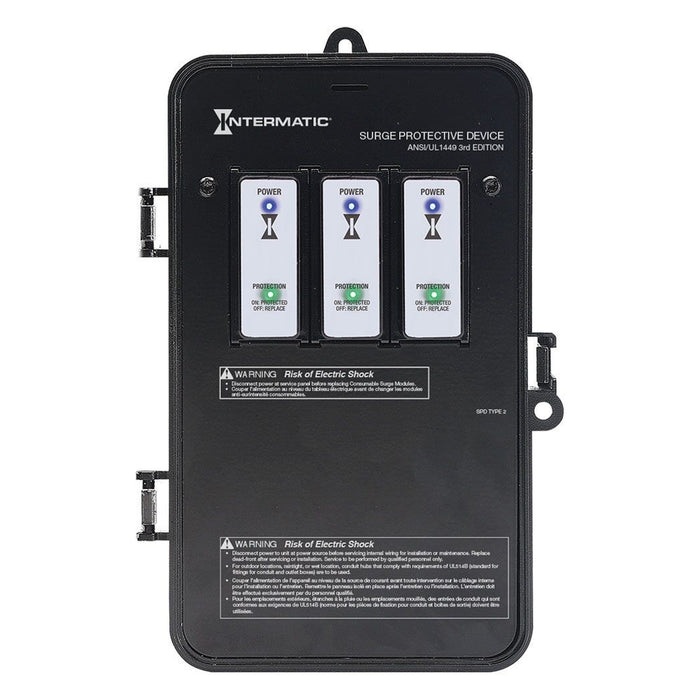

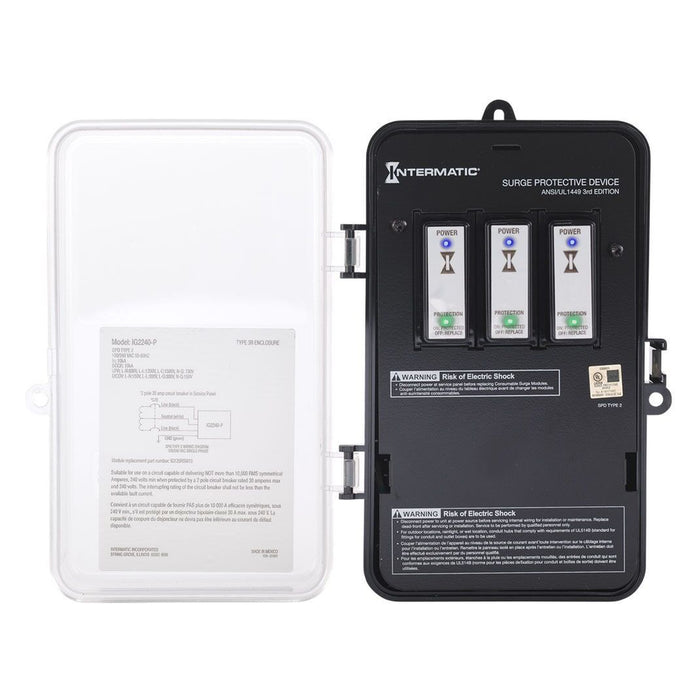

The Intermatic IG2240-PK SMART GUARD Whole House Surge Protective Device provides six-mode protection for appliances, electronics, HVAC equipment, and other connected loads on 120/240V single-phase systems.

Key Features & Design

Functionality: Uses TPMOV surge protection technology with three replaceable IMODULEs and LED power and protection status indicators.
Installation context: Type 2 surge protective device designed for whole-home protection with an indoor/outdoor Type 3R plastic enclosure.
Notable specifications: 120/240VAC single-phase, six protection modes, 50kA maximum surge current per phase, and 10kA nominal discharge current.
Contractor-relevant details: Four 18-inch wire leads and replaceable IMODULEs support straightforward installation and future servicing.

Performance / Benefits

Provides centralized whole-home surge protection while replaceable protection modules allow servicing without replacing the complete surge protective device.

Specifications

Details

Brand:	Intermatic
Manufacturer Part Number:	IG2240-PK
UPC:	78275148703
Input Voltage:	120/240VAC Single-Phase
Color:	Black
Special Features:	6-Mode Protection, TPMOV Technology, Replaceable IMODULEs, LED Status Indicators, Type 3R Enclosure
Certifications:	cULus, ANSI/UL 1449 5th Edition
Spec Sheet:	Download PDF

Dimensions

Length:	11
Width:	7
Height:	4.5
