Intermatic IOS-DSIF-IV In-Wall PIR Occupancy Sensor, Ivory, 120V

Product Overview

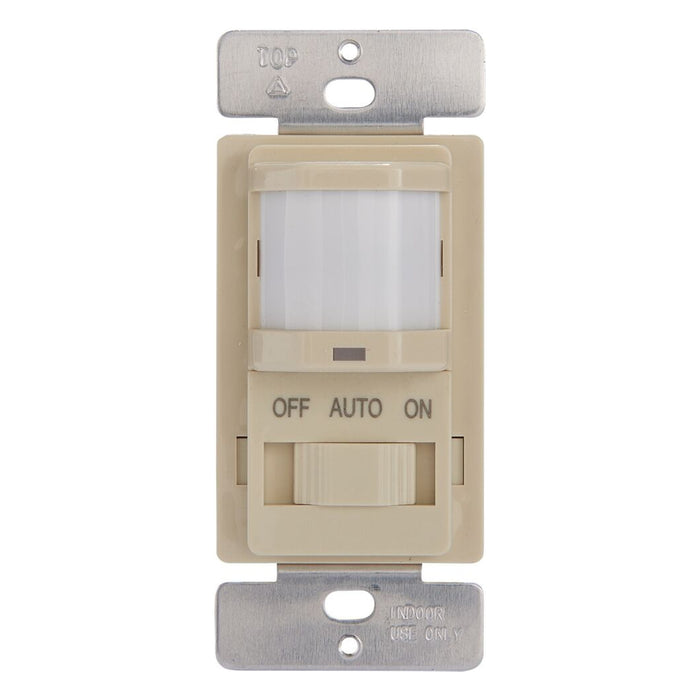

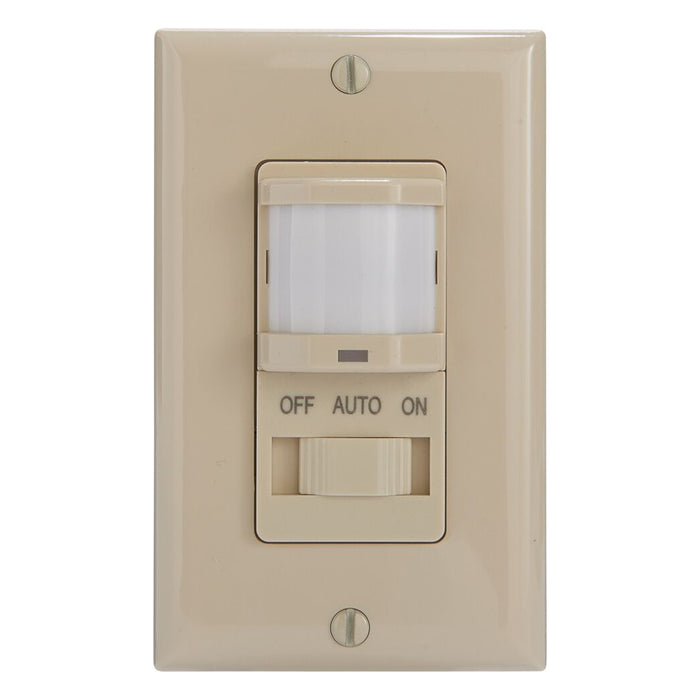

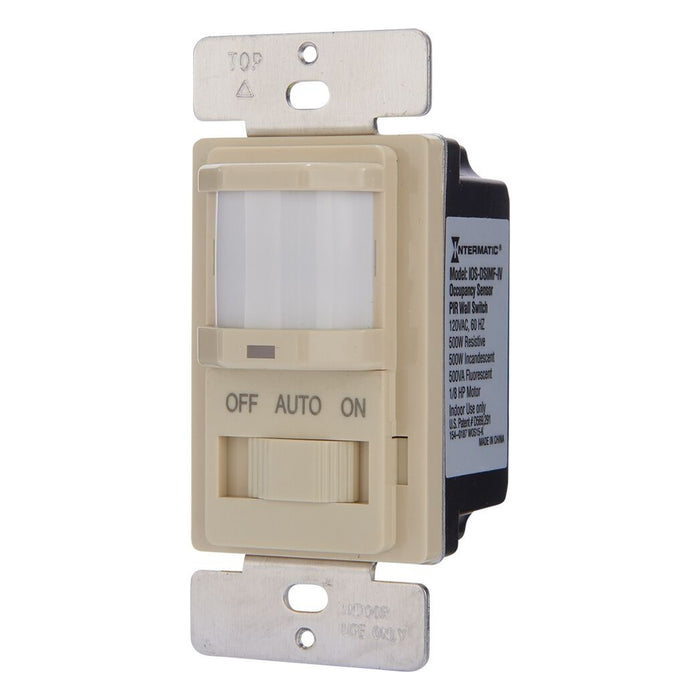

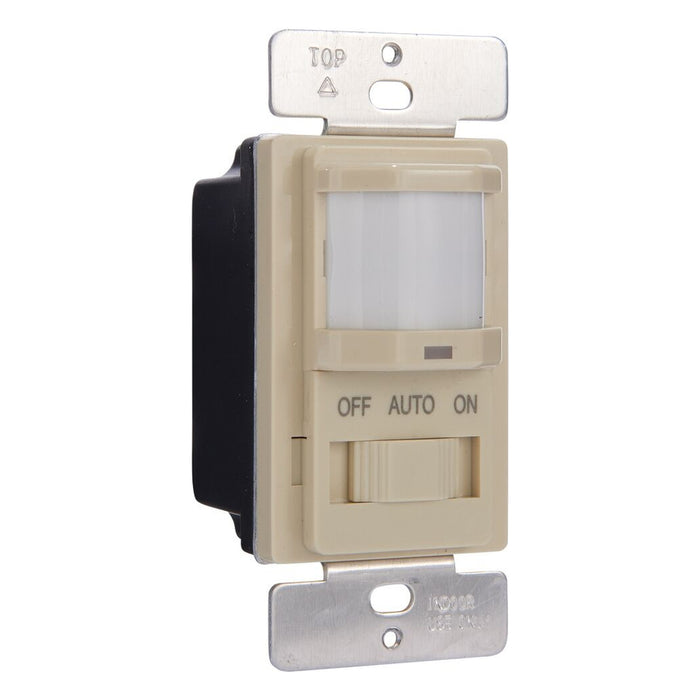

The Intermatic IOS-DSIF-IV is an ivory in-wall PIR occupancy sensor designed for automatic indoor lighting control. It detects occupant motion and keeps the connected load on while occupancy is detected, then switches it off after the selected time delay.

Key Features & Design

• Functionality: PIR occupancy sensing with adjustable sensitivity, time delay, and ambient light level detection.
• Installation context: Designed for in-wall installation at up to 4 ft mounting height and fits a standard decorator wall plate.
• Notable specifications: 120 VAC, 980 sq ft coverage, 150° PIR coverage pattern, 15-second to 30-minute time delay, and 30%–100% sensitivity adjustment.
• Contractor-relevant details: Requires a neutral connection and supports incandescent, fluorescent, CFL, and LED loads.

Performance / Benefits

Automatic occupancy-based switching helps reduce unnecessary lighting operation, while adjustable sensing, timing, and ambient-light settings support application-specific configuration.
