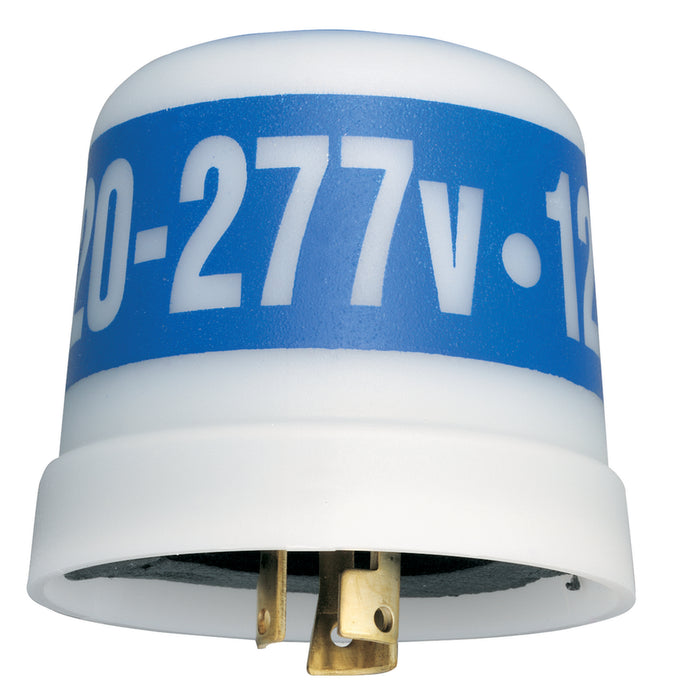

Intermatic LC4536LAC Locking Thermal Photocontrol 120-277VAC
by Intermatic
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$28.00
$28.00
-
$28.00
Current price
$28.00
Product Overview
The Intermatic LC4536LAC is a locking-type thermal photocontrol designed for automatic outdoor lighting control on fixtures equipped with ANSI C136.10 NEMA receptacles. Its locking design supports quick installation and replacement.
Key Features & Design
- Functionality: Mechanical bimetal switch with a cadmium sulfide photocell automatically controls compatible outdoor lighting based on ambient light levels.
- Installation context: Designed for outdoor lighting fixtures with ANSI C136.10 NEMA receptacles, including street lighting applications.
- Notable specifications: 120-277VAC, 50/60Hz, SPST switch, 30-90 second time delay, 5 fc ON activation, 15 fc OFF activation, and fail-ON operation.
- Contractor-relevant details: Locking-type plug supports quick installation and changeover, while the spark-gap surge arrestor provides surge protection. Compatible with HID and incandescent loads.
Performance / Benefits
Provides dependable automatic outdoor lighting control with delayed switching to help prevent unwanted OFF cycling and a locking design for convenient field replacement.
Specifications
Details
| Brand: | Intermatic |
|---|---|
| Manufacturer Part Number: | LC4536LAC |
| UPC: | 78275029569 |
| Input Voltage: | 120-277VAC, 50/60Hz |
| Color: | White with Blue Band |
| Switch Type: | SPST Mechanical Bimetal |
| Special Features: | Locking Type, Thermal Photocontrol, 30-90 Sec Delay, Spark Gap Surge Arrestor, Fail Mode ON |
| Certifications: | cULus, cCSAus, ANSI C136.10, Title 20 |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 3.5 |
|---|---|
| Width: | 3.5 |
| Height: | 3.5 |
