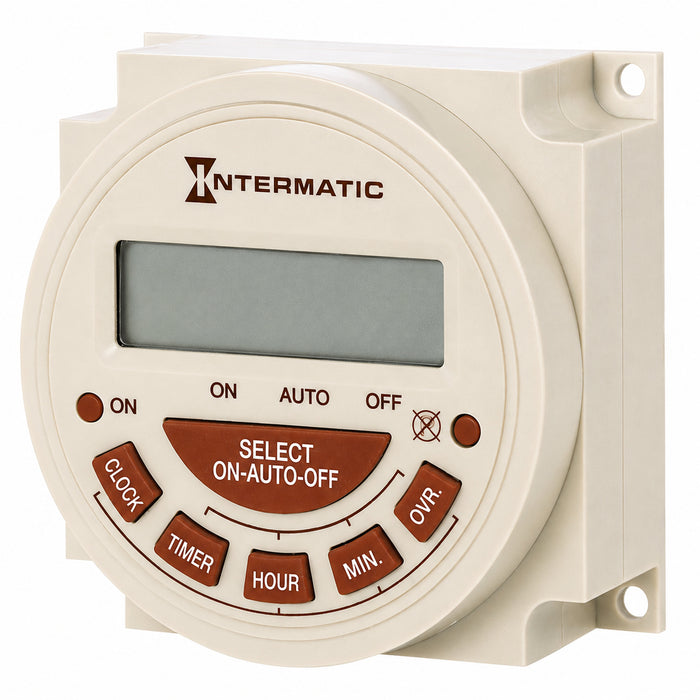

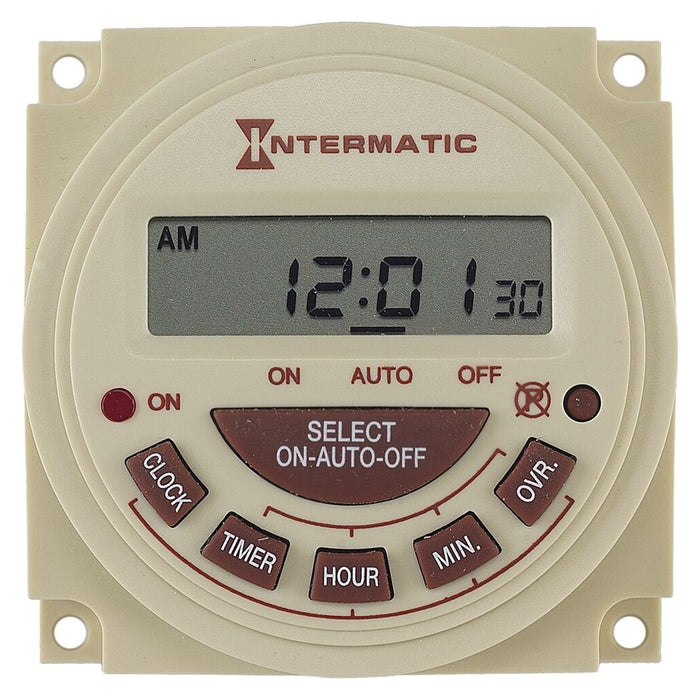

Intermatic PB314E 24-Hour Electronic Panel-Mount Timer 16A 240V

Product Overview

The Intermatic PB314E is a compact 24-hour electronic panel-mount timer designed for automatic control of pumps, motors, and other compatible equipment. Operating at 240 VAC, it provides programmable daily switching with replaceable battery backup and manual operating modes.

Key Features & Design

• Functionality: Provides flexible 24-hour electronic scheduling with 16 ON and 16 OFF events, plus selectable continuous ON, OFF, or AUTO operation.
• Installation context: Compact panel-mount design intended for motor, pump, and compatible equipment control applications.
• Notable specifications: 240 VAC, 50/60 Hz, 16A resistive rating, SPDT switching, and replaceable CR2032 lithium battery with 3-year backup protection.
• Contractor-relevant details: Rugged construction and battery-backed timekeeping support dependable scheduled equipment operation.

Performance / Benefits

Programmable daily control reduces manual equipment operation, while ON/OFF/AUTO selection provides convenient override when scheduled operation needs to be bypassed.
