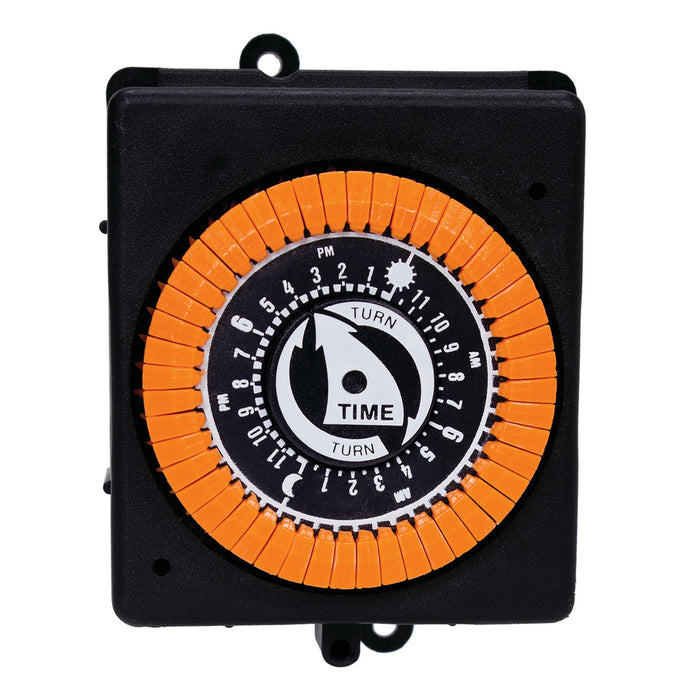

Intermatic PB913N 24-Hour Panel Mount Timer 20A 120V

Product Overview

The Intermatic PB913N is a 24-hour mechanical panel-mount timer designed for automatic control of pumps, cleaners, motors, and other compatible loads. Operating at 120VAC, it uses 48 captive trippers for dependable daily scheduling.

Key Features & Design

• Functionality: Supports three mounting methods: flush mounting in a round opening, raised mounting in a rectangular opening, or mounting on a base.
• Installation context: Supports three mounting methods: flush mounting in a round opening, raised mounting in a rectangular opening, or mounting on a base.
• Notable specifications: 120VAC, 60Hz, single circuit, SPST switching, 20A resistive rating at 120-277VAC, and motor ratings up to 1 HP at 120VAC or 2 HP at 240VAC.

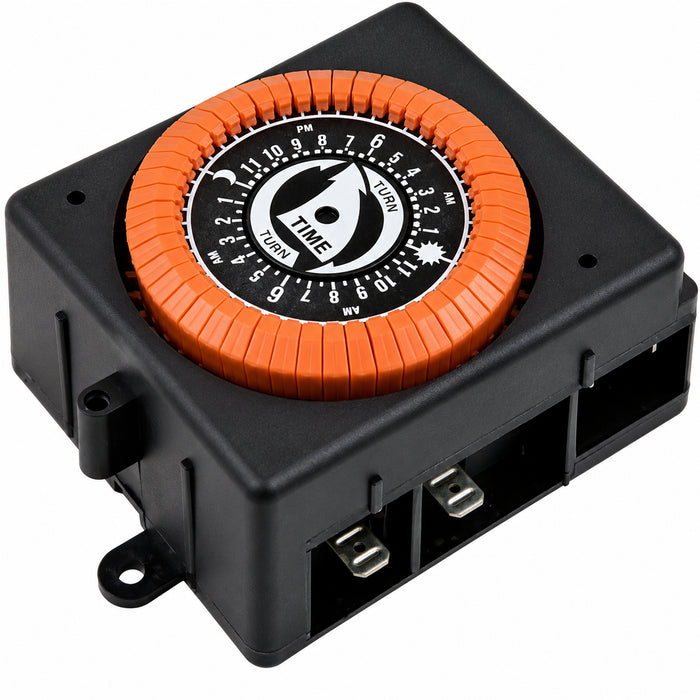

• Contractor-relevant details: Quick-connect terminals simplify installation, with four 1/4" male terminals provided for the load and independent clock motor.

Performance / Benefits

Combines straightforward mechanical scheduling, flexible mounting, and quick-connect wiring for dependable daily pump, motor, and equipment control.
