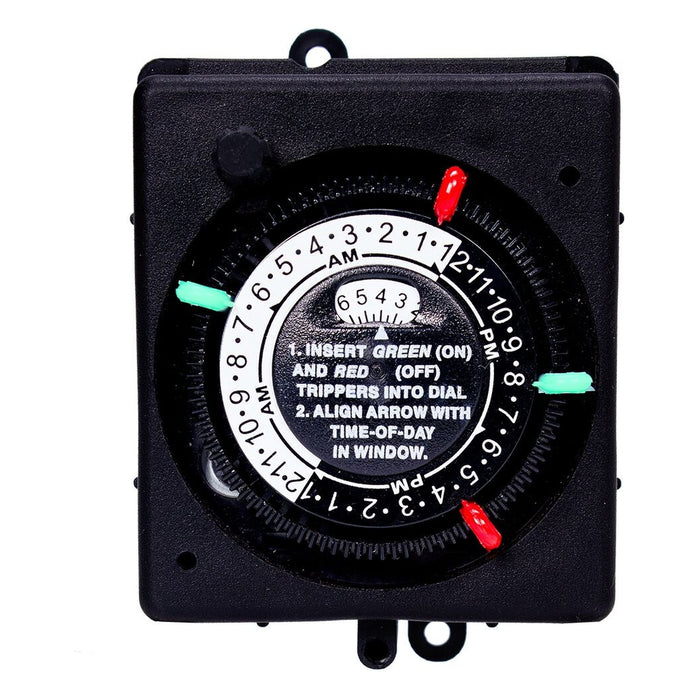

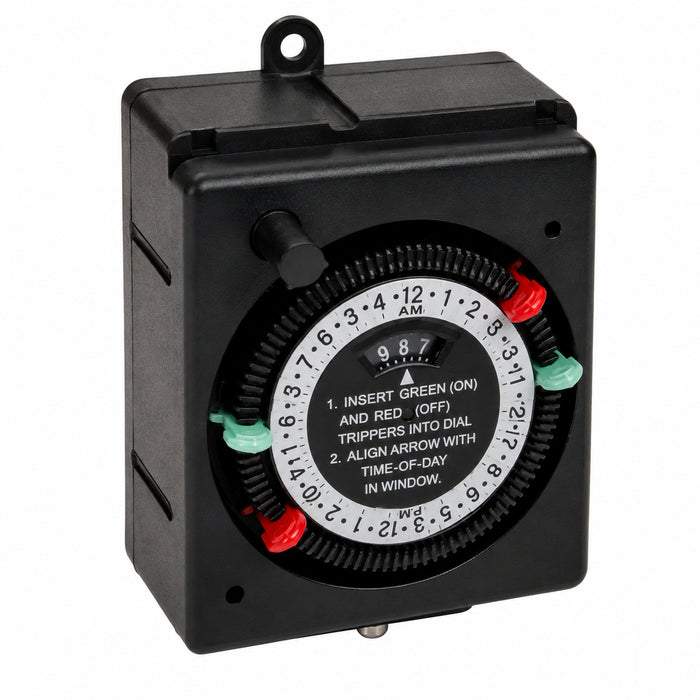

Intermatic PB914N84 24-Hour Mechanical Panel-Mount Timer 20A 208-277V

Product Overview

The Intermatic PB914N84 is a 24-hour mechanical panel-mount timer designed for automatic control of pumps, cleaners, motors, and other compatible loads. Operating at 208–277 VAC, it provides a 24-hour timing cycle, manual override, and four trippers for scheduled equipment control.

Key Features & Design

• Functionality: Provides 24-hour mechanical scheduling with 30-minute timing intervals, 1-hour minimum ON time, 23-hour maximum ON time, and manual override.
• Installation context: Supports three mounting methods: flush mounting in a round opening, raised mounting in a rectangular opening, or mounting on a base.
• Notable specifications: 208–277 VAC, 60 Hz; SPST; single circuit; 20A resistive rating; four trippers; 24-hour operation.

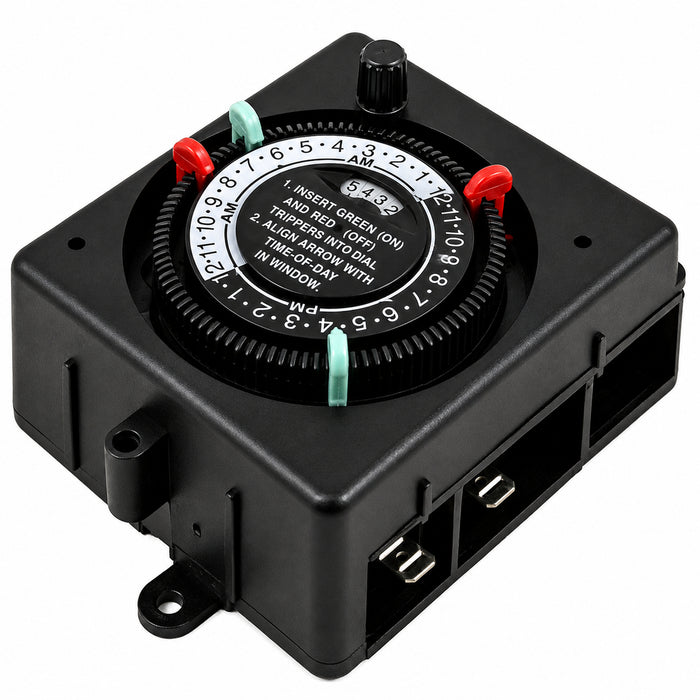

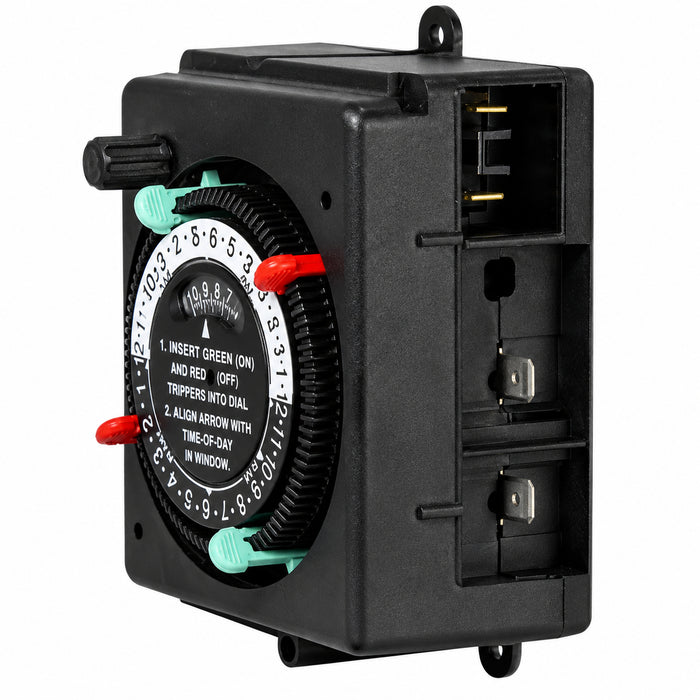

• Contractor-relevant details: Quick-connect terminals simplify installation, with four 1/4-inch male terminals—two for the load and two for the independent clock motor.

Performance / Benefits

Provides dependable daily scheduling for compatible motor and pump-control applications, with flexible mounting options and manual override for direct equipment control when needed.
