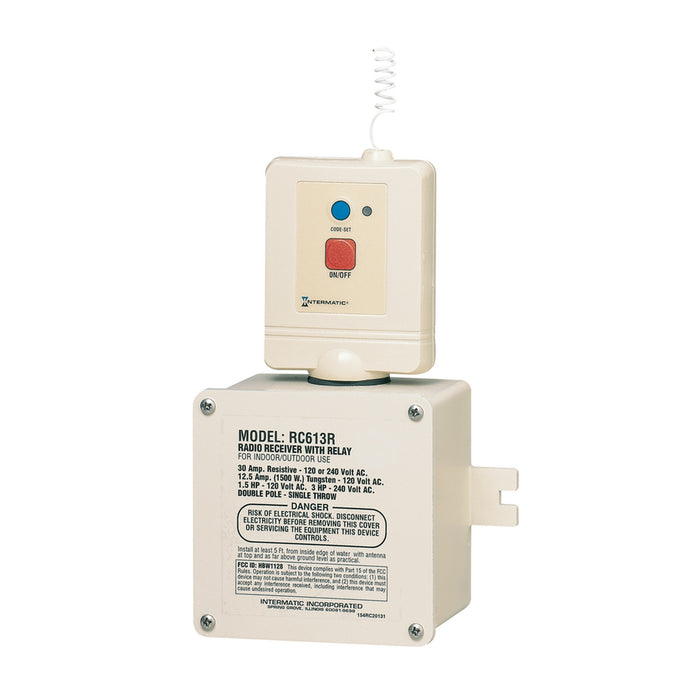

Intermatic RC613R Heavy-Duty Radio Receiver 100 ft Range DPST

Product Overview

The Intermatic RC613R is a heavy-duty radio receiver designed for local or wireless ON/OFF control of compatible connected loads. Suitable for indoor and outdoor use, it supports motor and pump control applications and provides a maximum wireless reception range of 100 feet.

Key Features & Design

• Functionality: Controls connected loads using the receiver-mounted ON/OFF button or wirelessly through a compatible handheld transmitter provided separately.
• Installation context: Designed for indoor or outdoor control applications with a beige outdoor-grade plastic enclosure and single-channel radio reception.
• Notable specifications: DPST switching, 100 ft maximum reception range, 1-1/2 HP motor rating at 120 VAC, 3 HP at 240 VAC, and 12.5A/1500W tungsten incandescent rating.
• Contractor-relevant details: Manual control at the receiver provides local ON/OFF operation while compatible wireless control allows connected loads to be operated remotely.

Performance / Benefits

Combines local and wireless switching for flexible control of compatible loads. Its indoor/outdoor construction and 100 ft reception range make it suitable for motor and pump control installations.
