Intermatic T21001R Pool & Spa Control Center 60A 120/240V

Product Overview

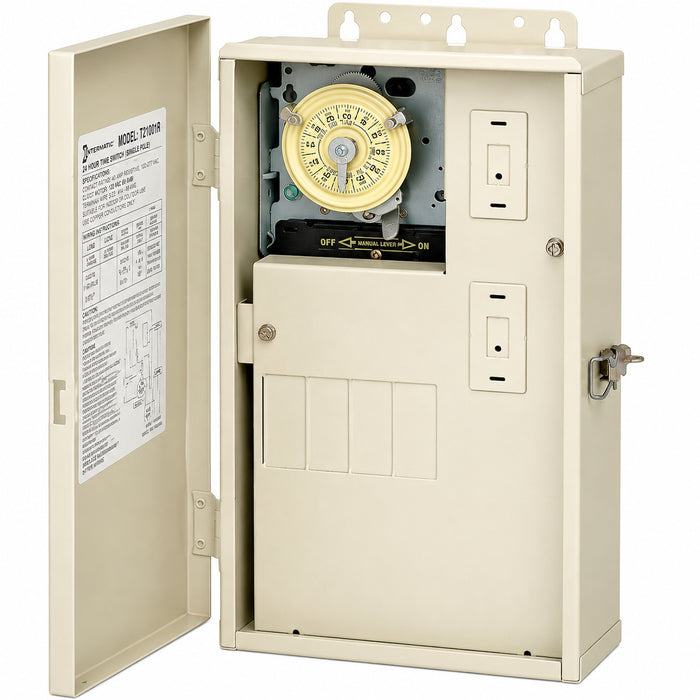

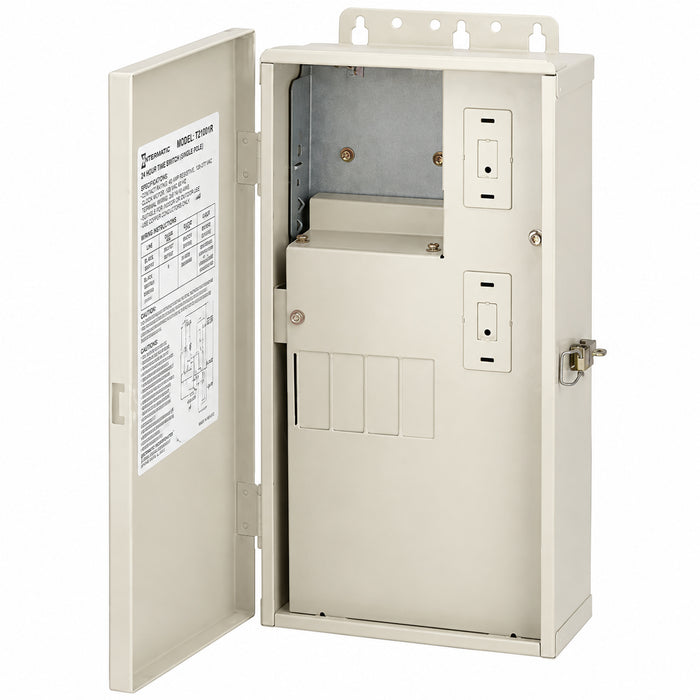

The Intermatic T21001R is a 60A pool and spa equipment control center combining a heavy-duty mechanical time switch and circuit breaker provisions in an all-weather enclosure. It provides centralized control for pool, spa, pump, lighting, and compatible outdoor equipment.

Key Features & Design

• Functionality: Provides automatic time-based control for pool, spa, pump, lighting, and compatible outdoor equipment.
• Installation context: Designed for indoor or outdoor pool and spa equipment control and suitable for direct connection of underwater lights.
• Notable specifications: 60A panel rating, 120/240V or 120/208V single-phase three-wire AC operation, 10,000A short-circuit current rating, and breaker base for up to four full-size circuit breakers.
• Contractor-relevant details: All-weather enclosure includes provisions for additional switches or a GFCI receptacle and supports an optional heater-control/fireman switch.

Performance / Benefits

Centralizes pool and spa electrical control in one enclosure while supporting automatic equipment scheduling and flexible field configuration for pumps, lighting, and other compatible outdoor loads.
