Intermatic T8845PV Irrigation Timer 14-Day Skipper 24VAC

Product Overview

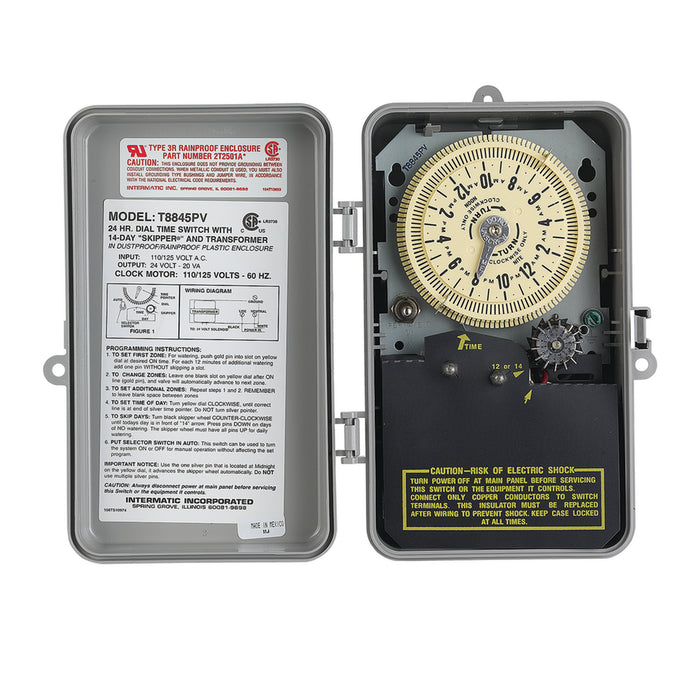

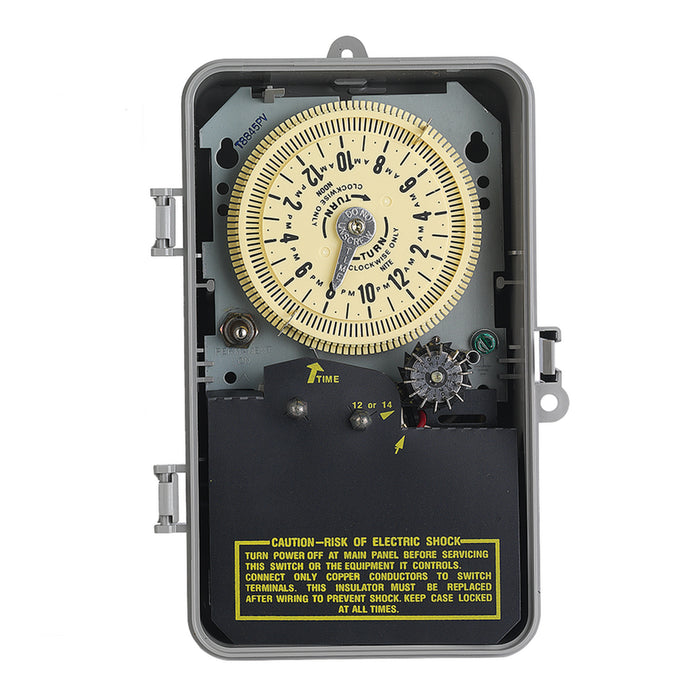

The Intermatic T8845PV is an analog/mechanical sprinkler and irrigation time switch with a 14-day skipper for flexible automatic watering schedules. It supports watering periods from 12 minutes up to 20 hours and 45 minutes.

Key Features & Design

• Functionality: Provides automatic irrigation scheduling with up to 44 ON/OFF settings per day, watering periods from 12 minutes to 20 hours and 45 minutes, and a 14-day skipper for omitting selected watering days.
• Installation context: Designed for landscape water control, greenhouse misting, and agricultural irrigation applications in indoor or outdoor locations.
• Notable specifications: 24VAC, 60Hz load voltage, SPST switching, 12-minute minimum ON/OFF time, 20-hour 45-minute maximum ON/OFF time, and 12 included trippers.

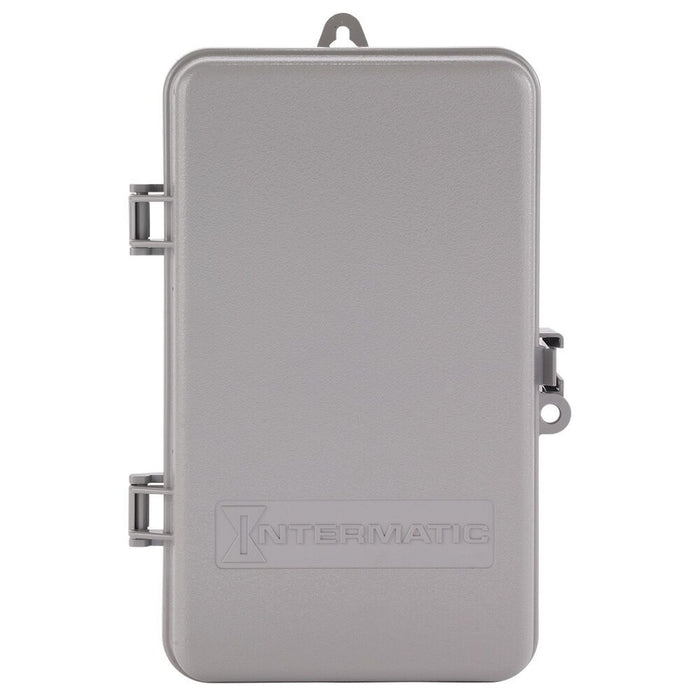

• Contractor-relevant details: Type 3R plastic enclosure supports indoor/outdoor installation, while the ON/OFF/AUTO switch allows rain shutdown or extended watering without disturbing the programmed dial cycle.

Performance / Benefits

Supports biweekly, alternate-day, and selected-day irrigation scheduling while allowing temporary shutdown or extended watering without resetting the programmed cycle
