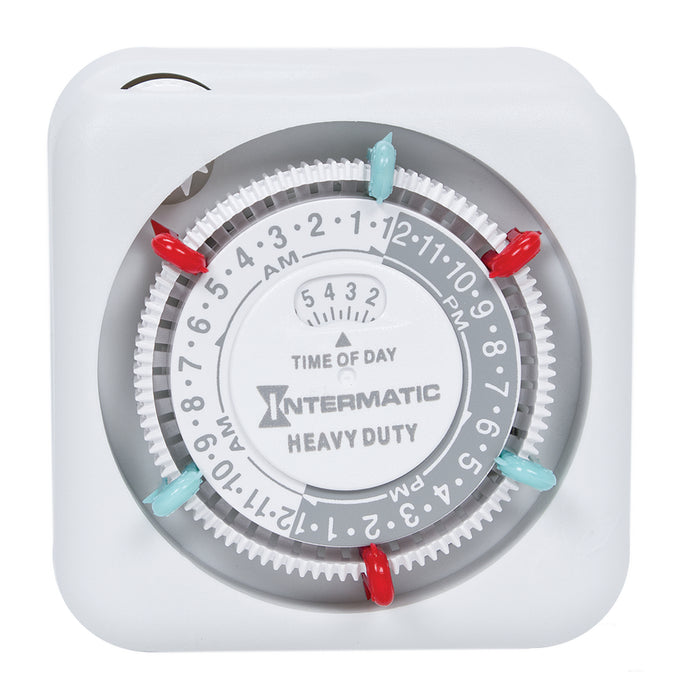

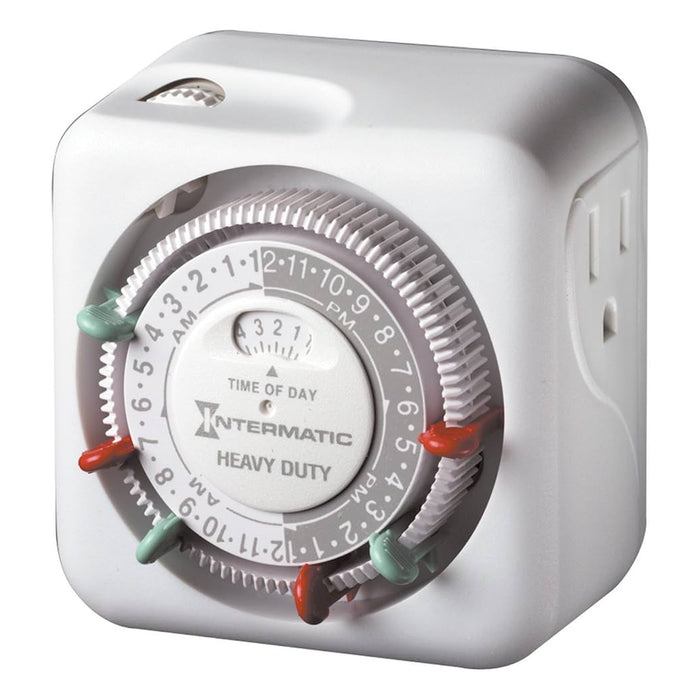

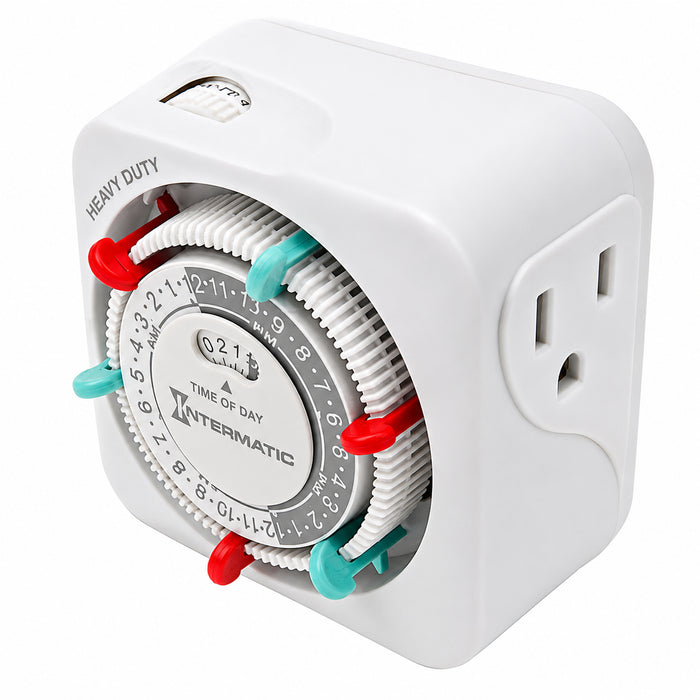

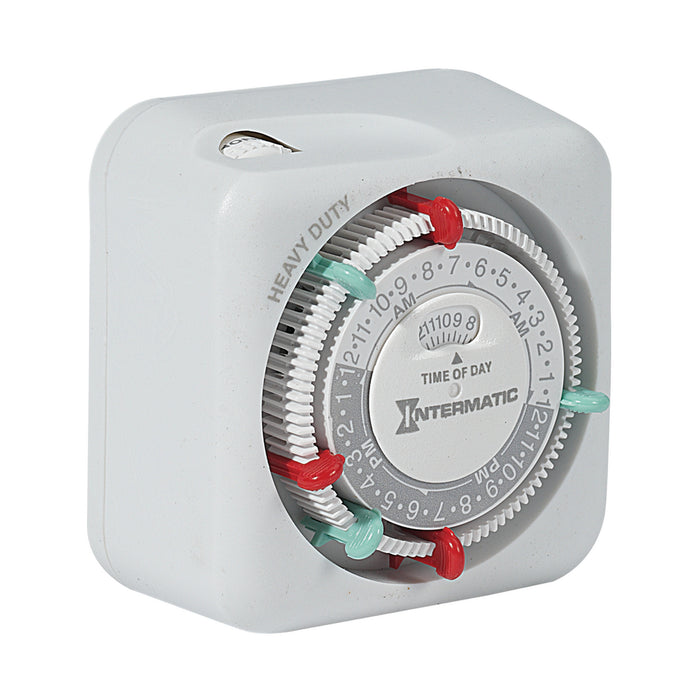

Intermatic TN311 Heavy-Duty Grounded Timer 15A 125V
by Intermatic
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$17.72
$17.72
-
$17.72
Current price
$17.72
Product Overview
The Intermatic TN311 is a heavy-duty grounded timer designed for automatic control of air conditioners and other heavy electrical loads. Operating at 125 VAC, 60 Hz, it provides three ON/OFF settings per day along with a manual override for direct load control.
Key Features & Design
- Functionality: Provides three ON/OFF settings per day with a manual override for direct load control.

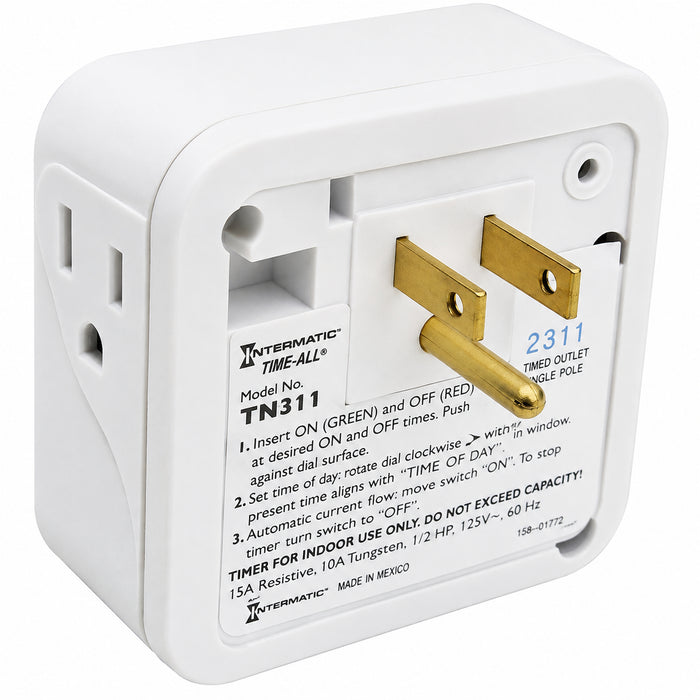

- Installation context: Grounded plug and receptacle design for compatible 125V electrical loads.
- Notable specifications: 15A resistive; 1750W tungsten and inductive; 12 FLA; 72 LRA; 125 VAC, 60 Hz.
- Contractor-relevant details: Heavy-duty grounded configuration is designed for air conditioners and other demanding electrical loads.
Performance / Benefits
Daily scheduling provides straightforward automatic load control, while the manual override allows direct operation when needed.
Specifications
Details
| Brand: | Intermatic |
|---|---|
| Manufacturer Part Number: | TN311 |
| UPC: | 78275127890 |
| Wattage: | 1750 |
| Input Voltage: | 125 VAC, 60 Hz |
| Color: | White |
| Switch Type: | Timer Switch |
| Special Features: | 3 ON/OFF Settings per Day; Grounded Plug & Receptacle; Manual Override |
| Certifications: | CSA |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 3.5 |
|---|---|
| Width: | 3.5 |
| Height: | 3.5 |
