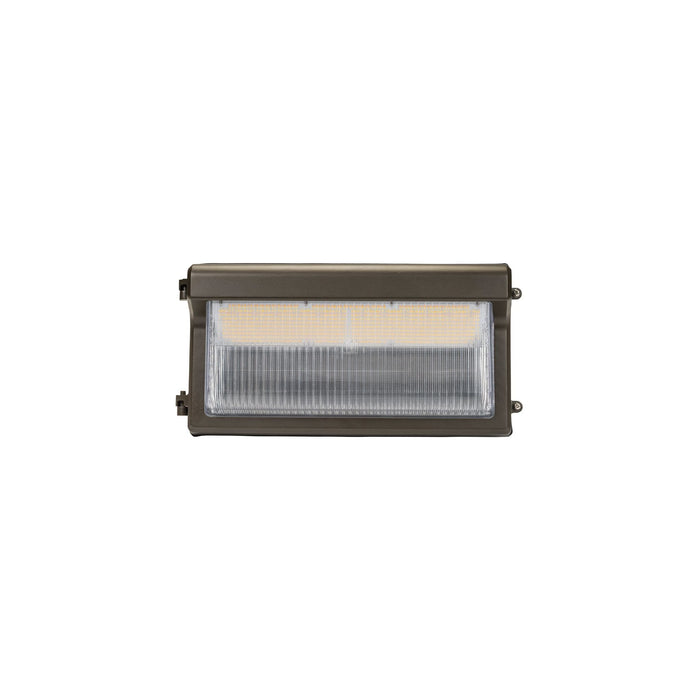

Keystone KT-WPLED120PS-L4-8CSB-VDIM LED Wall Pack 80/100/120W 3-CCT
by Keystone
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$169.95
$169.95
-
$169.95
Current price
$169.95
Product Overview
The Keystone KT-WPLED120PS-L4-8CSB-VDIM LED wall pack provides configurable outdoor illumination for commercial perimeters, pathways, loading docks, parking areas, and security applications. Power Select and Color Select technologies allow field adjustment of wattage and color temperature. The fixture delivers up to 17,640 lumens and includes a built-in photocell and 0–10V dimming.
Key Features & Design
- Functionality: Selectable 80W, 100W, or 120W output with 3000K, 4000K, or 5000K CCT.
- Installation context: Designed for commercial exterior wall mounting with five 1/2-inch threaded conduit hubs.
- Notable specifications: 120–277V; 11,280–17,640 lumens; CRI >80; IP65; IK06; bronze finish; borosilicate glass lens; 0–10V dimming.
- Contractor-relevant details: Built-in photocell, field-selectable wattage and CCT, die-cast aluminum housing, and multiple conduit-entry points support flexible installation.
Performance / Benefits
Selectable output and CCT allow one fixture to accommodate multiple project requirements while the photocell provides automatic dusk-to-dawn operation.
Specifications
Details
| Brand: | Keystone |
|---|---|
| Manufacturer Part Number: | KT-WPLED120PS-L4-8CSB-VDIM |
| UPC: | 843654155555 |
| Wattage: | 120 |
| Lumens: | 17640 |
| Input Voltage: | 120–277V |
| Kelvin: | 5000 |
| CRI: | 80 |
| Color: | Bronze |
| Rated Hours: | 100000 |
| Special Features: | Power Select (120/100/80W), Color Select (3000K/4000K/5000K), Built-in Photocell, 0–10V Dimming, IP65 Wet Rated |
| Certifications: | UL Wet Location, DLC Premium, FCC Part 15 Class A, IP65, IK06, TAA Available |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 16.25 |
|---|---|
| Width: | 11 |
| Height: | 7.25 |
