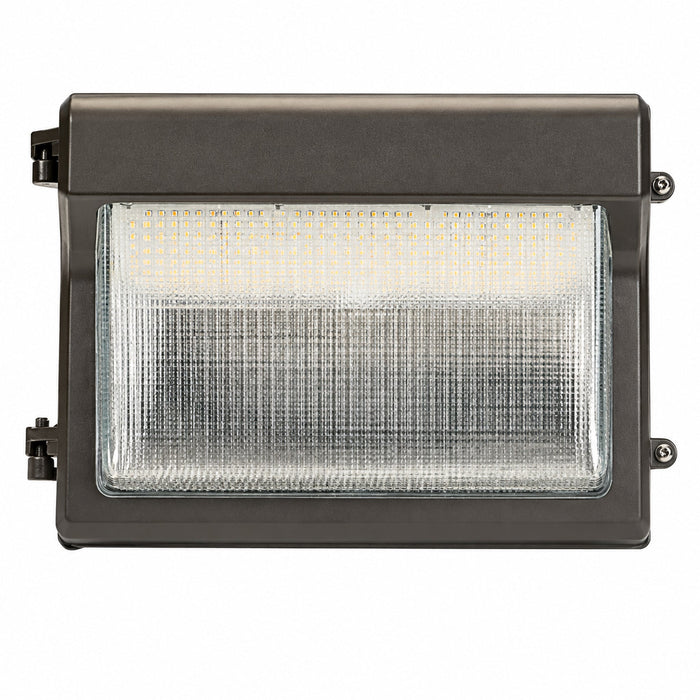

Keystone KT-WPLED55PS-M4-8CSB-VDIM Traditional-Slim LED Wall Pack

Product Overview

The Keystone KT-WPLED55PS-M4-8CSB-VDIM Traditional-Slim LED Wall Pack is designed for exterior building illumination, including perimeters, pathways, loading docks, and general security lighting. Its bronze die-cast aluminum housing, borosilicate glass lens, and low-profile design provide a durable solution for commercial applications.

Key Features & Design

• Functionality: Power Select with 35W, 45W, or 55W settings; Color Select with 3000K, 4000K, or 5000K settings; built-in dusk-to-dawn photocell; and 0–10V dimming.
• Installation context: Designed for exterior building mounting and optimized for one-for-one replacement of legacy HID wall packs.
• Notable specifications: 120–277V; up to 7,645 lumens; CRI >80; IP65 rated; IK06 impact rating; bronze housing; 14.37 in. L × 4.72 in. W × 9.29 in. H.
• Contractor-relevant details: Five 1/2-inch threaded conduit hubs provide multiple conduit-entry points, while wattage, CCT, and photocell settings are field adjustable.

Performance / Benefits

Power Select and Color Select technologies help reduce inventory requirements by allowing wattage and CCT to be configured in the field. The slim housing is designed to match the footprint and distribution of legacy HID wall packs for one-for-one replacement applications.
