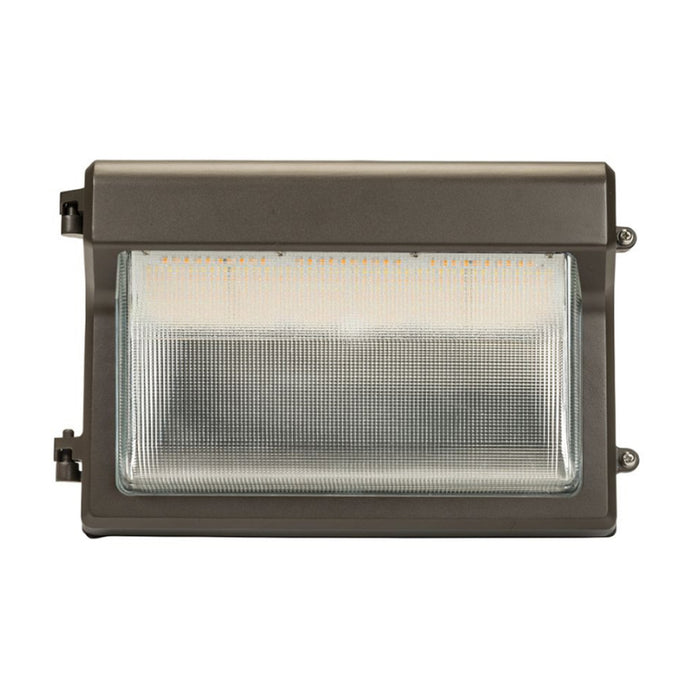

Keystone KT-WPLED80PS-M4-8CSB-VDIM LED Wall Pack 55W/70W/80W CCT Selectable Bronze 120-277V

Product Overview

Keystone’s KT-WPLED80PS-M4-8CSB-VDIM XFit Traditional-Slim LED Wall Pack is a commercial outdoor luminaire for building perimeters, walkways, loading docks, and security lighting. It combines Keystone Power Select and Color Select technologies to enable on-site adjustment of wattage and color temperature, delivering up to 11,280 lumens in a slim, durable housing with integrated control features suitable for retrofit or new construction in exterior environments.

Key Features & Design

• Functionality: Field-selectable wattage (55W, 70W, or 80W) and color temperature (3000K, 4000K, or 5000K) to match application requirements while delivering up to 11,280 lumens with high efficacy.
• Installation context: Heavy-duty housing designed for commercial exterior applications such as building exteriors, parking areas, loading docks, walkways, and perimeter lighting; five 1/2-inch threaded conduit hubs for flexible wiring and installation.
• Notable specifications: Input voltage 120–277V; wattage 55W/70W/80W selectable; lumens 7,645–11,280; CCT 3000K/4000K/5000K selectable; CRI >80; bronze finish; borosilicate glass lens; 0–10V dimming; IP65 wet-location; IK06; DLC Premium listed; power factor >0.95; THD <20%; L70 >100,000 hours.
• Contractor-relevant details: Built-in dusk-to-dawn photocell and dimming driver enable on-site control of illumination levels and timing, reducing energy use and simplifying commissioning in exterior installations.

Performance / Benefits

The fixture combines field-selectable wattage and color temperature with a high-output lumen range and up to 146 lm/W efficacy, enabling precise light levels for outdoor security and area illumination while minimizing maintenance through long LED life, durable construction, and reliable control features.
