LEDVANCE 66411 LED Canopy Light 30W/40W/50W 3CCT Selectable White 120–347V

Product Overview

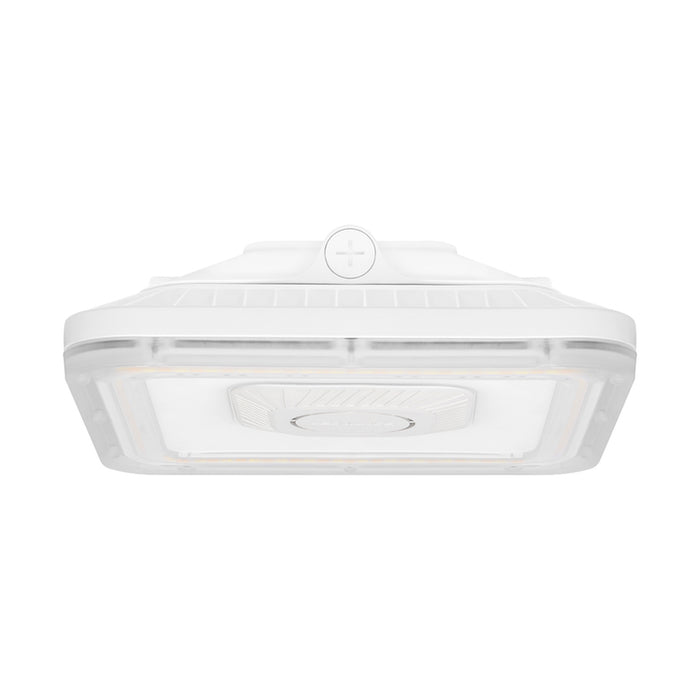

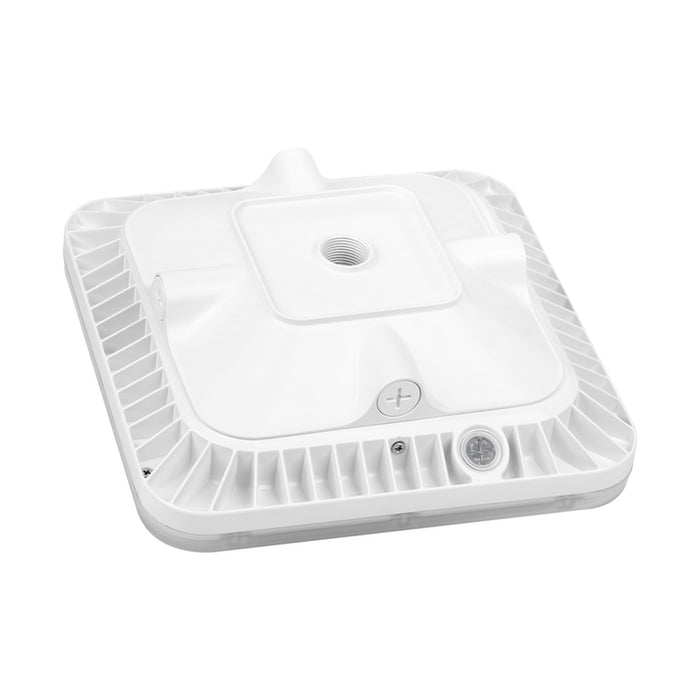

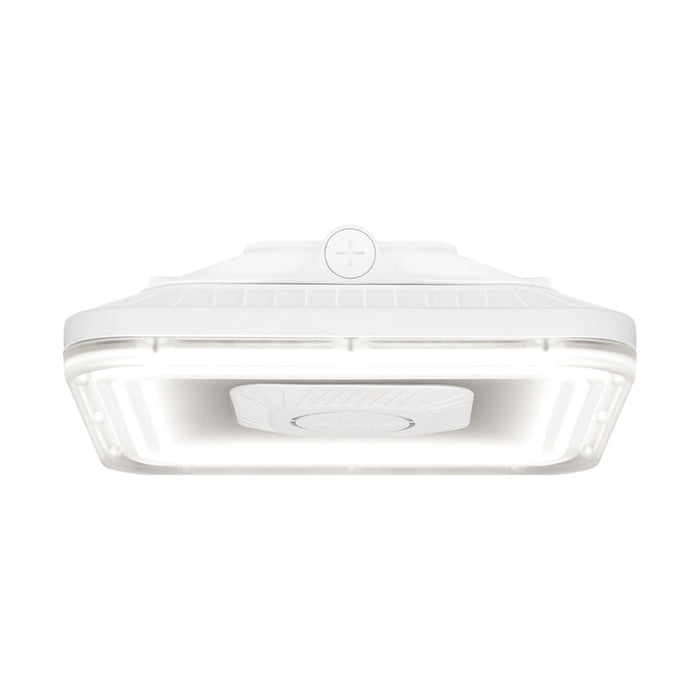

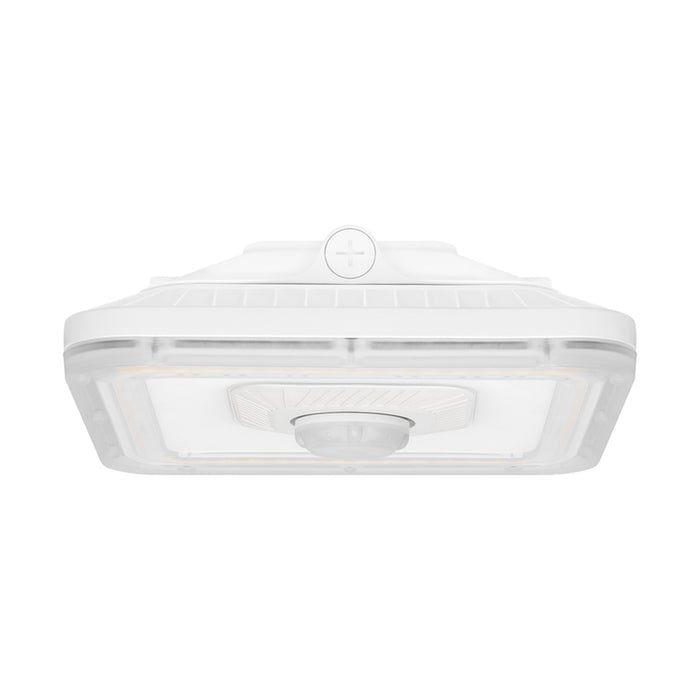

The LEDVANCE 66411 PERFORMANCE CLASS™ LED Canopy/Garage Square Luminaire is a dual-beam outdoor fixture designed for canopy and parking garage applications. Featuring selectable wattage and color temperature, this compact 8-inch luminaire delivers up to 8,000 lumens while allowing field adjustments to optimize light output. Integrated controls readiness, an embedded uplight, and a built-in photocell provide enhanced flexibility and energy-efficient operation for commercial lighting installations.

Key Features & Design

• Functionality: Field-selectable wattages (30W, 40W, or 50W) and selectable color temperatures (3000K, 4000K, or 5000K) with dual-beam optics for both canopy and garage lighting applications. Includes integrated photocell and 0–10V dimming.
• Installation context: Ideal for parking garages, covered walkways, entryways, canopies, and commercial outdoor structures. Surface-mount design with Controls Ready sensor receptacle for standalone or LEDVANCE LINK wireless controls.
• Notable specifications: Brand: LEDVANCE; NAED: 66411; PERFORMANCE CLASS™; Voltage: 120–347V; Wattage: 30W/40W/50W selectable; CCT: 3000K/4000K/5000K selectable; Lumens: 4,800/6,400/8,000; CRI >80; Dimensions: 8.66 in L × 8.66 in W × 3.11 in H; White aluminum housing.
• Contractor-relevant details: DLC Premium listed, integrated field-disableable photocell, Controls Ready sensor receptacle, optional emergency battery backup, embedded uplight to reduce cave effect, 100,000-hour rated life, and 5-year limited warranty.

Performance / Benefits

The LEDVANCE 66411 combines selectable wattage and color temperature in one fixture, reducing inventory while allowing field adjustments without replacing hardware. Its dual-beam optics, integrated controls, and high efficacy of up to 160 lm/W provide dependable illumination, improved visual comfort, and long-term energy savings for commercial outdoor applications.
