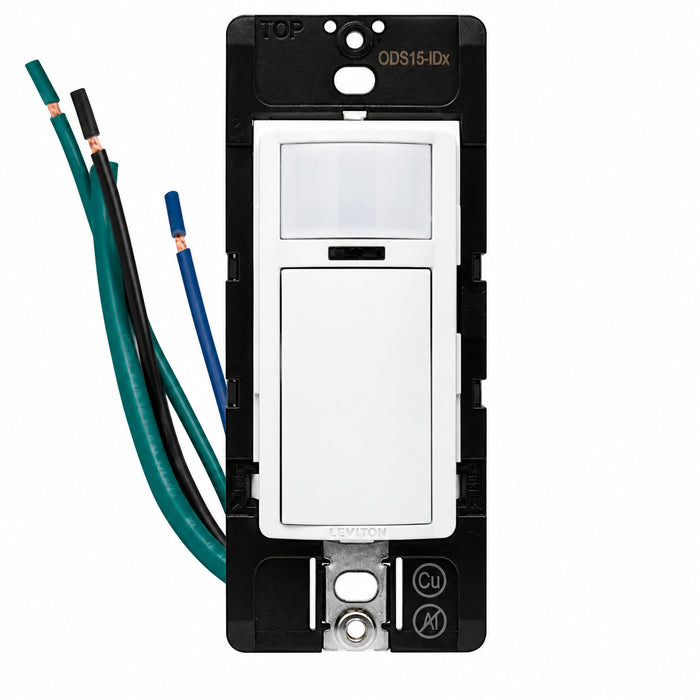

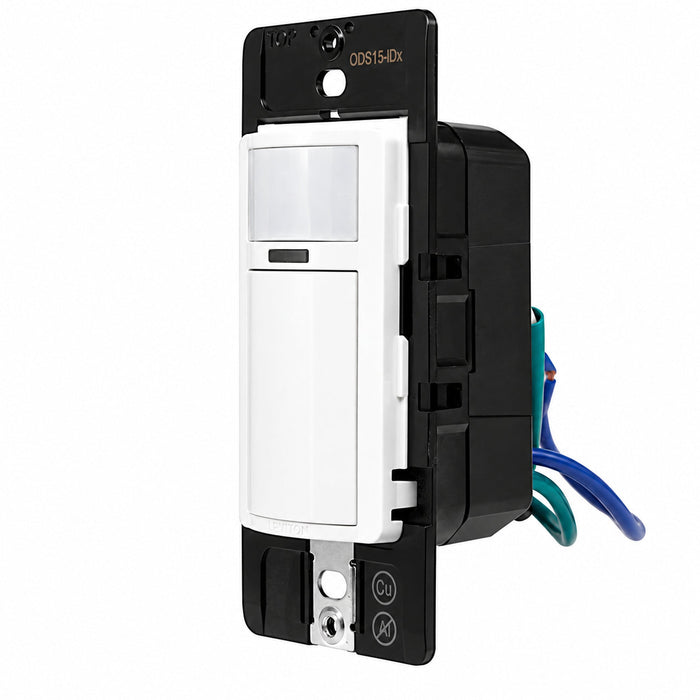

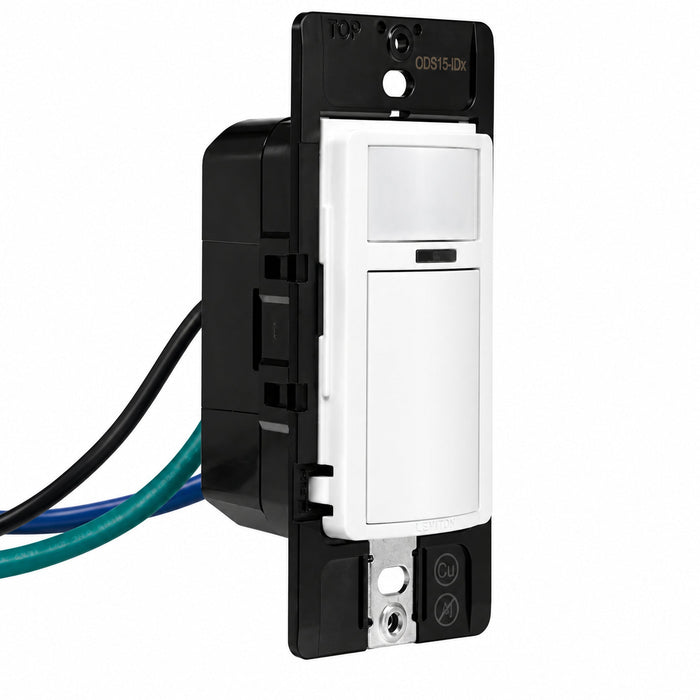

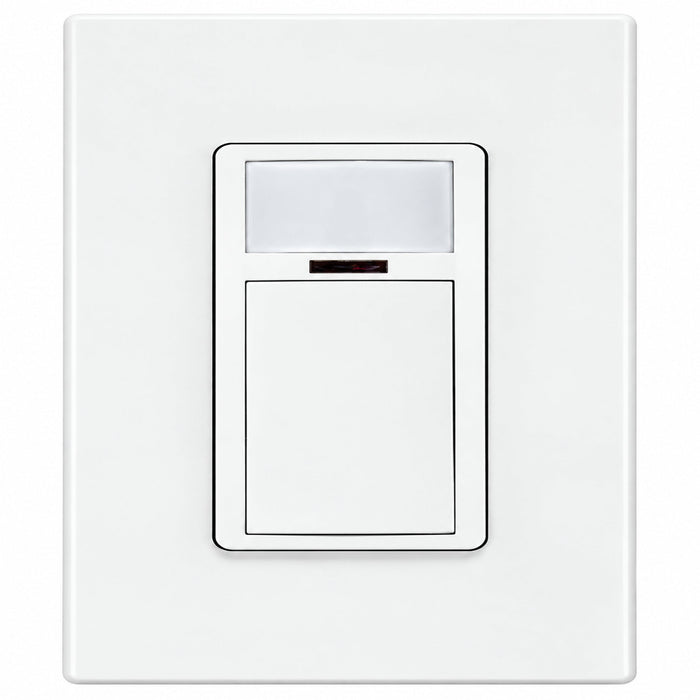

Leviton ODS15-IDW Smart Wallbox PIR Occupancy/Vacancy Sensor 120-277V White

Product Overview

The Leviton ODS15-1DW Wallbox Occupancy Sensor is a wallbox-mounted PIR occupancy sensor designed for automatic ON/OFF lighting control in commercial environments. It detects occupancy using passive infrared (PIR) technology and switches connected lighting loads accordingly. With integrated daylighting hold-off and configurable operating modes, it helps reduce energy consumption in offices, conference rooms, and other indoor spaces.

Key Features & Design

• Functionality: PIR occupancy sensor that automatically switches lighting ON/OFF based on detected occupancy.
• Installation context: Wallbox-mounted device designed to replace a standard wall switch, suitable for commercial retrofit and new construction applications.
• Notable specifications: 120–277V input; 180° field of view; coverage up to 1,100 sq ft; minor motion detection up to 400 sq ft; integrated photocell for daylighting hold-off; adjustable timeout and sensitivity; Bluetooth app and push-button configuration.
• Contractor-relevant details: Supports Auto-ON/Auto-OFF and Manual-ON/Auto-OFF modes for code compliance; controls lighting loads up to 20A (general purpose rating); compatible with standard single-gang wallbox installations; configurable via mobile app or manual setup.

Performance / Benefits

This sensor improves energy efficiency by ensuring lights operate only when spaces are occupied. PIR detection provides reliable motion sensing across typical room layouts, including minor movement detection to maintain lighting when needed. The integrated daylighting hold-off prevents unnecessary activation when ambient light is sufficient, further reducing energy use. With flexible configuration options and straightforward wallbox installation, it supports consistent performance and easy deployment in commercial environments.
