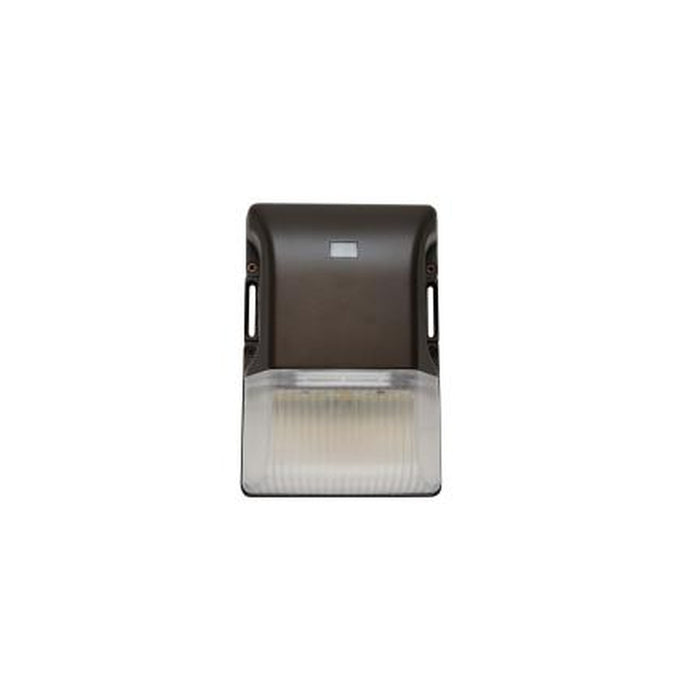

MaxLite SECS30U-WCSBPC Slim GuardMax LED Wall Pack 15W/25W/30W 3CCT Bronze
by MaxLite
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$51.10
$51.10
-
$51.10
Current price
$51.10
Product Overview
The MaxLite SECS30U-WCSBPC Slim GuardMax LED Wall Pack is a compact outdoor security fixture designed for commercial and multi-residential applications. It features selectable wattage and color temperature, allowing installers to configure the fixture for building perimeters, entrances, walkways, and general exterior lighting.
Key Features & Design
- Functionality: Selectable 15W, 25W, or 30W output with 3000K, 4000K, or 5000K CCT settings and an integrated photocell with an on/off switch.
- Installation context: Direct wall mounting to 3–4.5-inch junction boxes, with two 1/2-inch conduit openings for surface wiring.
- Notable specifications: 120–277V; 3,750–4,020 lumens; Type IV distribution; CRI ≥80; bronze finish; 8.58 in H × 5.79 in W × 3.07 in D.
- Contractor-relevant details: IP66 wet-location rated, DLC Premium, UL listed, FCC compliant, and rated for at least 100,000 hours.
Performance / Benefits
Selectable output reduces inventory needs, while the photocell supports automatic dusk-to-dawn operation and energy-efficient exterior lighting.
Specifications
Details
| Brand: | MaxLite |
|---|---|
| Manufacturer Part Number: | SECS30U-WCSBPC |
| UPC: | 7 67627 07345 |
| Wattage: | 30 |
| Lumens: | 4020 |
| Input Voltage: | 120–277V AC, 50/60Hz |
| Kelvin: | 5000 |
| Beam Angle: | Type IV Distribution |
| CRI: | 81 |
| Color: | Bronze |
| Switch Type: | Photocell On/Off Switch |
| Detection Zone: | Photocell Controlled |
| Rated Hours: | 100000 |
| Special Features: | Wattage Selectable (15W/25W/30W), CCT Selectable (3000K/4000K/5000K), built-in photocell with enable/disable switch, Type IV distribution, die-cast aluminum housing, UV-stabilized polycarbonate lens, IP66, wet-location rated, direct wall mount. |
| Certifications: | UL Listed, FCC, IP66, Wet Location, DLC Premium (30W model) |
| Dimmable: | Yes |
| Spec Sheet: | Download PDF |
Dimensions
| Length: | 9" |
|---|---|
| Width: | 6.25" |
| Height: | 3.75" |
