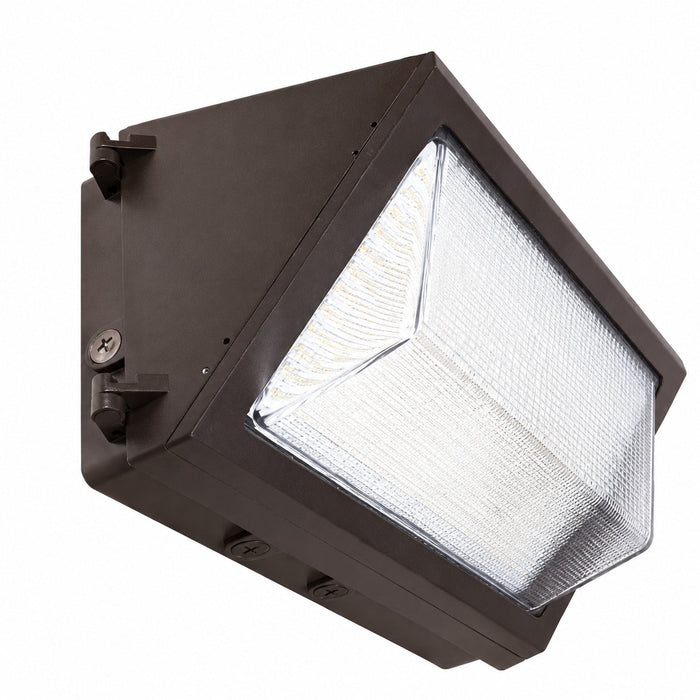

MaxLite WCF120U-WCSBPC WallMax 120W LED Wall Pack

Product Overview

The MaxLite WCF120U-WCSBPC WallMax Compact Open Face LED Wall Pack is designed for commercial outdoor wall lighting. Its dark bronze die-cast housing covers existing HID footprints and features selectable wattage, selectable CCT, and an integral on/off photocell.

Key Features & Design

• Functionality: Selectable 80W, 100W, or 120W output; selectable 3000K, 4000K, or 5000K CCT; 0–10V dimming; and standard on/off photocell.
• Installation context: Designed for general outdoor wall-lighting applications and coverage of existing HID fixture footprints.
• Notable specifications: 120–277V; 17,470–18,470 lumens; CRI >80; 6kV surge protection; IP65 and wet-location rated; L70 >100,000 hours.
• Contractor-relevant details: Corrosion-resistant die-cast housing, impact-resistant prismatic borosilicate glass lens, and four 1/2-inch conduit holes. Optional visor, wire guard, battery backup, and c-Max controls accessories are available.

Performance / Benefits

Selectable wattage and CCT help reduce the number of fixture configurations contractors need to stock, while the HID-footprint coverage supports straightforward commercial wall-pack retrofit applications.
