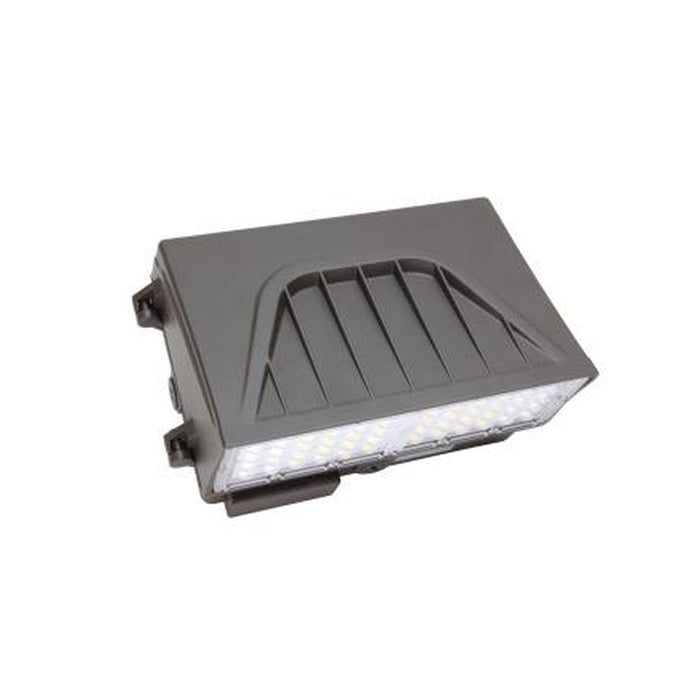

MaxLite WPC28U-WCSBPCCR WallMax LED Wall Pack 15W/20W/28W 3CCT Bronze

Product Overview

The MaxLite WPC28U-WCSBPCCR WallMax Full Cutoff LED Wall Pack is a compact architectural fixture designed for commercial offices, schools, public buildings, walkways, and building perimeters. Featuring selectable wattage and color temperature, an integral photocell, and c-Max controls-ready capability, this wall-mounted fixture delivers flexible, energy-efficient exterior illumination with controlled glare.

Key Features & Design

• Functionality: Selectable 15W, 20W, or 28W output with 3000K, 4000K, or 5000K CCT settings, Type IV distribution, 0–10V dimming, and full-cutoff optics.
• Installation context: Designed for wall-mounted exterior lighting on commercial buildings, schools, offices, walkways, and other public or administrative properties.
• Notable specifications: Brand: MaxLite; Model: WPC28U-WCSBPCCR; Voltage: 120–277V; Lumens: 4,000–4,200; CRI ≥80; Bronze finish; Dimensions: 10.74 in L × 6.48 in H × 5.80 in D.
• Contractor-relevant details: Integral photocell with on/off switch, c-Max controls-ready port, four 1/2-inch conduit openings, IP65 wet-location rating, 6kV surge protection, DLC Premium, and 10-year warranty.

Performance / Benefits

The WPC28U-WCSBPCCR combines wattage and CCT selectability in one fixture, reducing inventory while allowing on-site adjustment. Its full-cutoff design helps control glare and uplight, while the photocell and controls-ready architecture support efficient automatic operation and future control integration.
