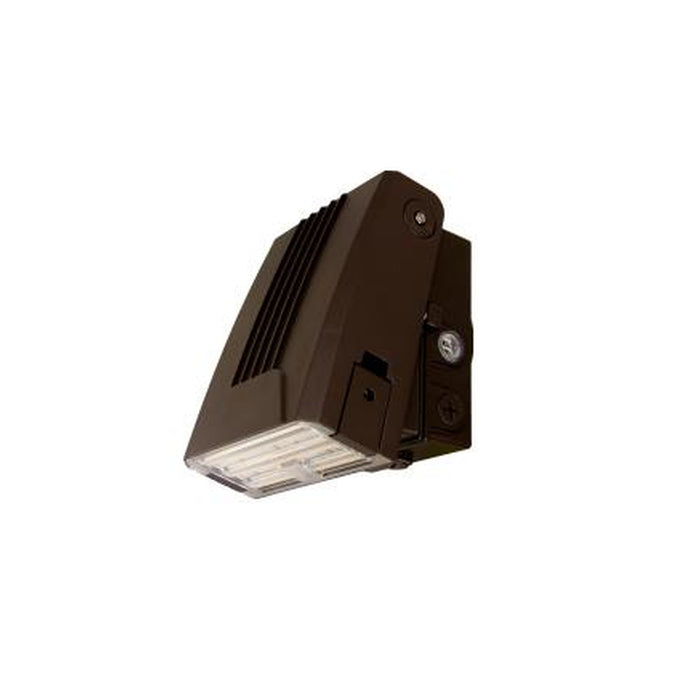

MaxLite WTC25U-WCSBPC WallMax Adjustable Thin Cutoff LED Wall Pack 15W/20W/25W Bronze 120-277V

Product Overview

The MaxLite WTC25U-WCSBPC WallMax Adjustable Thin Cutoff LED Wall Pack is a compact architectural outdoor fixture designed for commercial buildings, schools, walkways, entrances, and perimeter lighting. Featuring selectable wattage, selectable color temperature, and an adjustable housing with changeable optics, this versatile wall pack delivers up to 3,700 lumens while providing precise light distribution and reduced glare. An integrated photocell is included for automatic dusk-to-dawn operation.

Key Features & Design

• Functionality: Field-selectable 15W, 20W, or 25W output with selectable 3000K, 4000K, or 5000K color temperatures. Adjustable housing and interchangeable lenses allow multiple distribution patterns to suit the application.
• Installation context: Ideal for commercial offices, schools, public buildings, entrances, walkways, building perimeters, and general exterior security lighting. Wall-mounted design with optional c-Max controls compatibility.
• Notable specifications: Brand: MaxLite; Model: WTC25U-WCSBPC; Input Voltage: 120–277V; Wattage: 15W/20W/25W selectable; Lumens: 3,430–3,700; CRI >80; Bronze finish; Type IV lens standard.
• Contractor-relevant details: Integral photocell with on/off switch, adjustable housing, Type IV distribution with optional Type III lens, die-cast aluminum housing, UV-stabilized polycarbonate lens, IP65 wet-location rated, 0–10V dimming, 6kV surge protection, DLC Premium listed, and backed by a 5-year warranty.

Performance / Benefits

The WTC25U-WCSBPC combines selectable wattage and color temperature with adjustable optics, allowing contractors to optimize illumination while reducing inventory requirements. Its slim full-cutoff design minimizes glare and light trespass, while the integrated photocell and long-life LED technology help reduce energy consumption and maintenance costs.
