Morris 39069 Mini-Flush Mount Photocontrol 120V 150W

Product Overview

The Morris 39069 is a 120V mini-flush mount photocontrol designed for automatic lighting control based on ambient light levels. It uses a 1/2-inch CDS photocell and thermal switch to automatically control compatible lighting loads, with a built-in 30–60 second time delay. The 39069 is identified by Morris as a replacement for 71299–71301 fixtures.

Key Features & Design

• Functionality: Automatically responds to ambient light levels, with ON operation specified at 0.9–1.9 foot-candles and OFF operation at 2.8–5.6 foot-candles. The control uses an SPST configuration and thermal switch.
• Installation context: Mini-flush mount design intended as a replacement for Morris 71299–71301 fixtures. The body can be detached from the sensor to provide more convenient access during wiring.
• Notable specifications: 120V; 150W tungsten rating; 100VA ballast rating; 1/2-inch CDS photocell; 30–60 second time delay; weatherproof polycarbonate housing and lens; 6,500-cycle life rating.

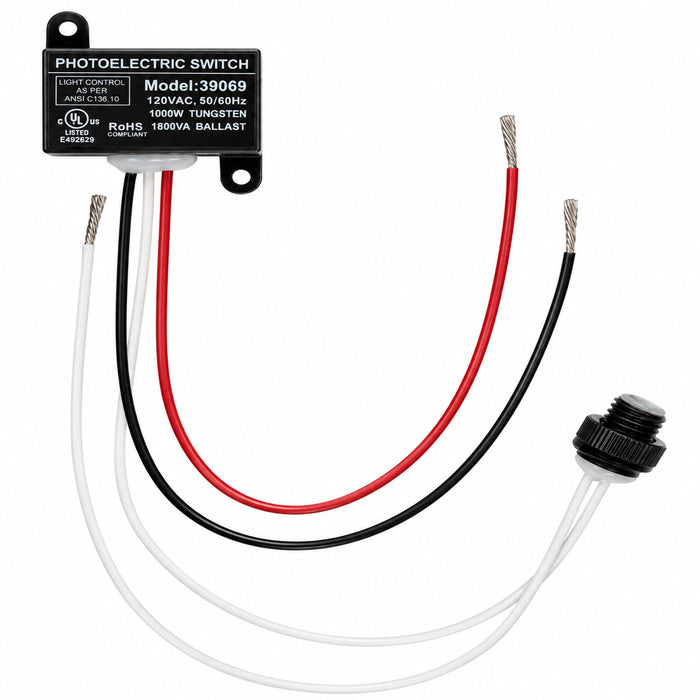

• Contractor-relevant details: Includes a 3/8"-18 threaded nipple with rubber gasket and plastic locknut. Six-inch leads exit the rear of the housing for installations where wiring space is limited.

Performance / Benefits

The Morris 39069 provides automatic dusk-to-dawn-style lighting control without requiring manual switching. Its defined ON/OFF light thresholds and 30–60 second delay help prevent immediate switching from brief changes in ambient light. The weatherproof polycarbonate construction, compact flush-mount configuration, and rear-exit leads make it practical for compatible replacement installations. The photocontrol is rated for operation from -40°F to 158°F and up to 96% relative humidity.
