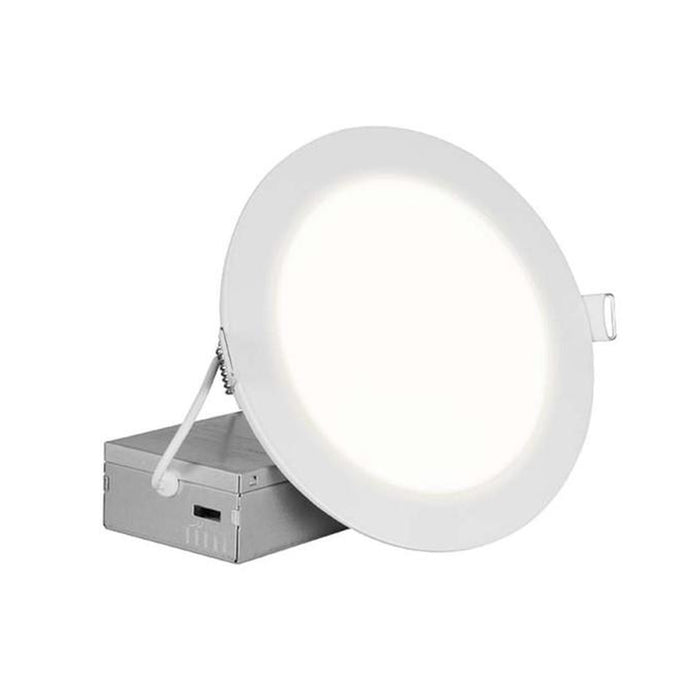

NICOR REL41120SRDWH 4 Inch Canless Edge-Lit LED Downlight 11W 5CCT White

Product Overview

The NICOR REL41120SRDWH REL Series 4-Inch Edge-Lit LED Downlight is a slim, canless recessed lighting solution designed for residential and light commercial applications. This 11W (10.1W nominal) fixture features five selectable color temperatures, edge-lit LED technology, and a low-profile design that installs without a recessed housing. Delivering up to 768 lumens with 90+ CRI, it provides uniform, glare-reduced illumination for hallways, bathrooms, kitchens, closets, and living spaces.

Key Features & Design

• Functionality: Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) with smooth TRIAC/ELV dimming to 5% for customized lighting.
• Installation context: Canless installation using adjustable spring-loaded retention tabs for ceilings up to 3/4 inch thick. Includes remote driver/junction box with integrated connectors for quick installation in new construction or remodeling projects.
• Notable specifications: Brand: NICOR; Model: REL41120SRDWH; Series: REL; Power: 11W (10.1W nominal); Voltage: 120V AC; Lumens: 656–768; CRI: 90+; Finish: White; Round trim.
• Contractor-relevant details: Edge-lit LED technology, off-board driver for improved thermal performance, wet-location rated, IC-rated, airtight construction, ENERGY STAR listed, California Title 24 compliant, and over 54,000-hour LED life.

Performance / Benefits

The REL41120SRDWH combines five selectable color temperatures in one fixture, reducing inventory while allowing installers to customize lighting on-site. Its ultra-thin edge-lit design delivers smooth, uniform illumination with minimal glare, while the canless construction simplifies installation in shallow ceilings and renovation projects.
